MP 900
Product catalog summary

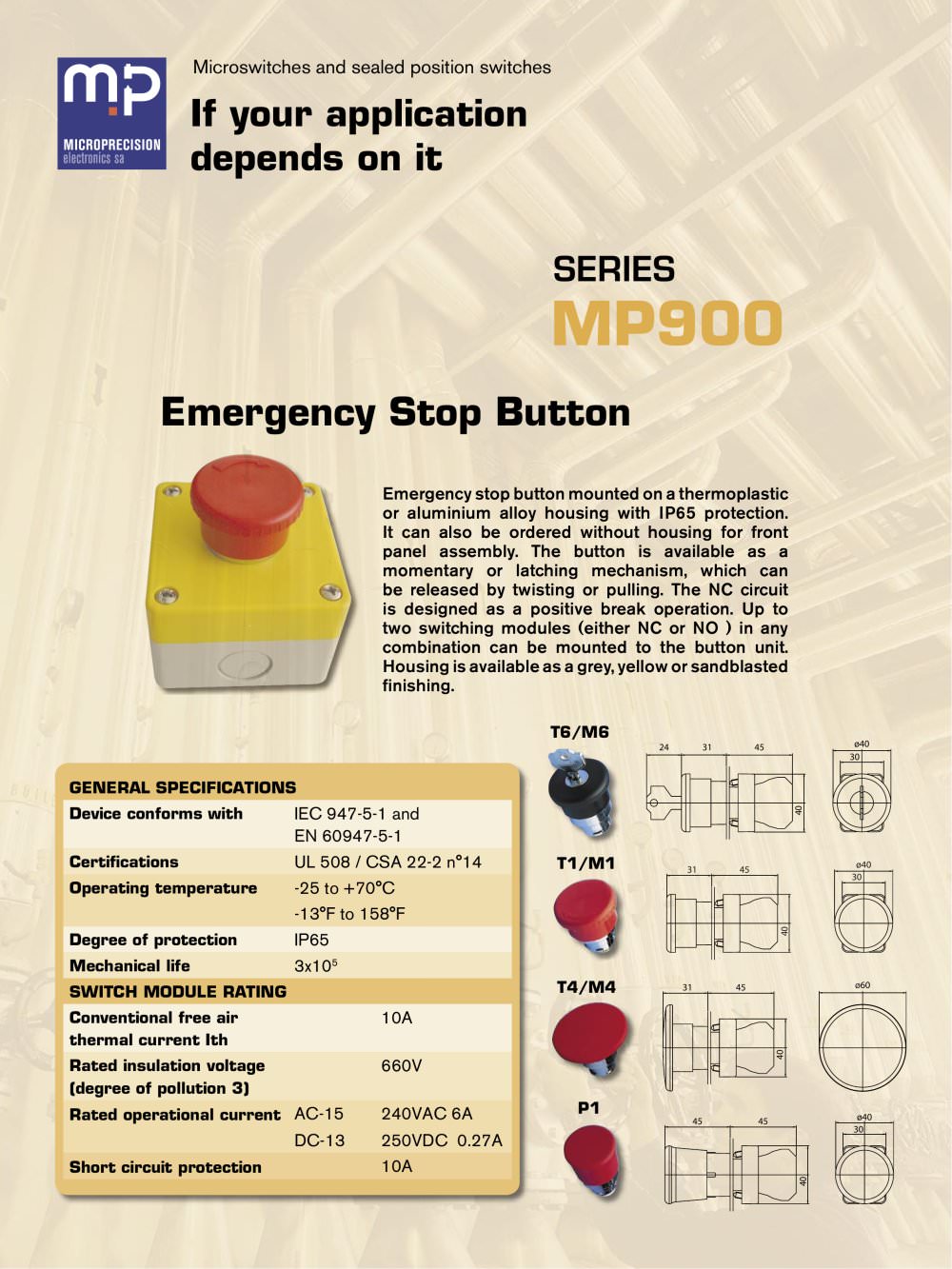

Overview: The document provides technical specifications and options for the MP900 Series Emergency Stop Button, which is part of a range of microswitches and sealed position switches. The button is designed for safety applications and can be mounted on a thermoplastic or aluminium alloy housing with IP65 protection.
Specifications:
- Conforms to IEC 947-5-1 and EN 60947-5-1 standards.
- Certifications include UL 508 and CSA 22-2 n°14.
- Operating temperature range: -25 to +70°C (-13°F to 158°F).
- Degree of protection: IP65.
- Mechanical life: 300,000 operations.
Switch Module Rating:
- Conventional free air thermal current (Ith): 10A.
- Rated insulation voltage (degree of pollution 3): 660V.
- Rated operational current: AC-15 240VAC 6A, DC-13 250VDC 0.27A.
- Short circuit protection: 10A.
Design Options:
- Housing available in grey, yellow, or sandblasted finish.
- Button available as momentary or latching mechanism, released by twisting or pulling.
- Up to two switching modules (NC or NO) can be mounted.
Customization:
- Dimension box options range from plastic to sandblasted and painted finishes.
- Box cover colors include grey, yellow, and sandblasted.
- Button colors available in red and black.
- Contact options include 1xNC, 1xNO, 2xNC, 2xNO, and combinations thereof.
- Button types include twist, momentary, and pull mechanisms.
Contact Information: For more details, customers are encouraged to contact Microprecision Electronics SA or visit their website.
