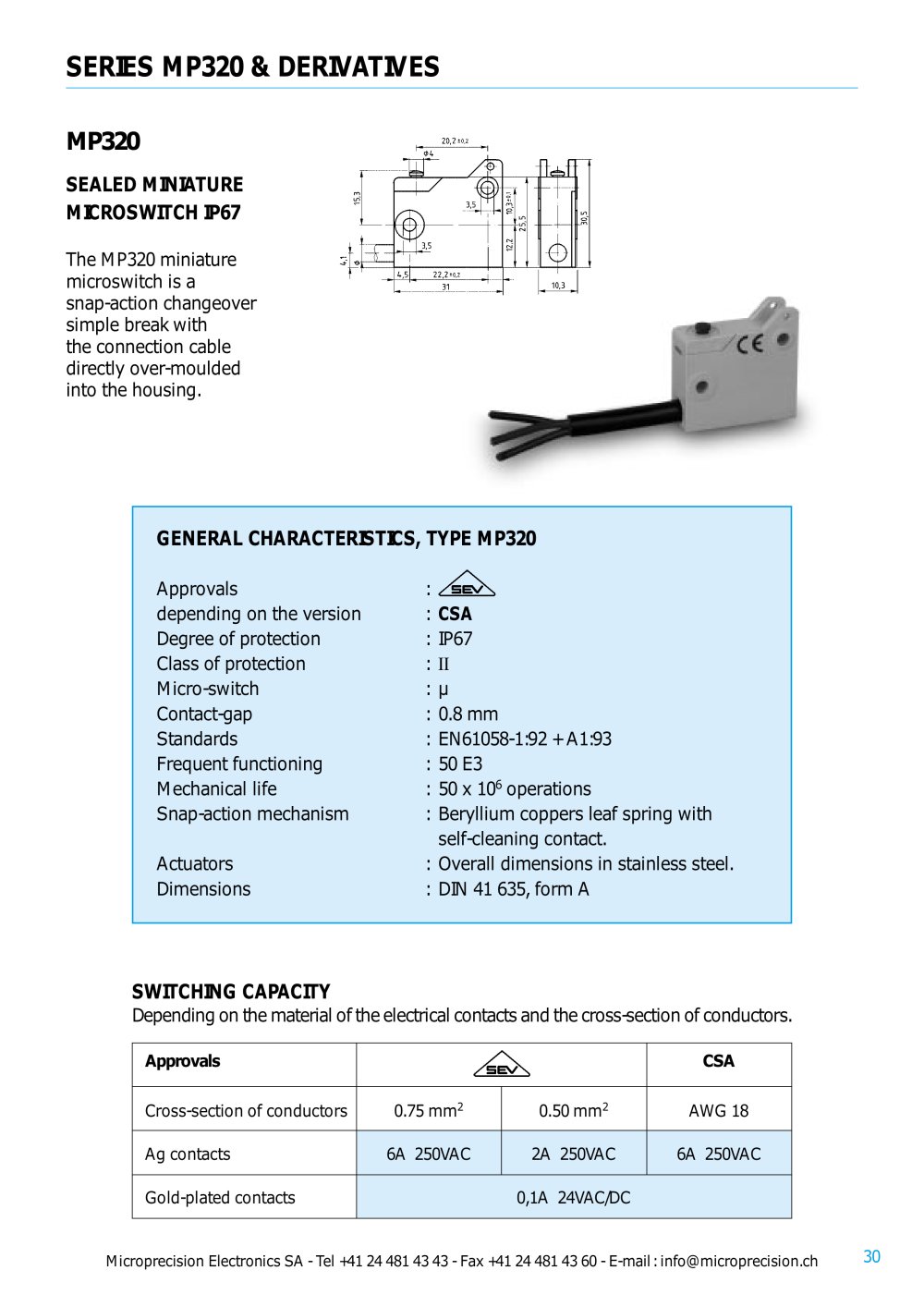

General Characteristics
The MP320 series microswitches are approved by CSA and have a protection degree of IP67. They are classified under protection class II and feature a micro-switch with a contact gap of 0.8 mm. The standards followed include EN61058-1:92 + A1:93. These switches are designed for frequent functioning with a mechanical life of 50 million operations. The snap-action mechanism is made from beryllium copper leaf spring with self-cleaning contact, and the actuators are made from stainless steel.

Switching Capacity
The switching capacity varies based on the material of the electrical contacts and the cross-section of conductors. For Ag contacts, the capacity is 6A at 250VAC for 0.75 mm² and 2A at 250VAC for 0.50 mm². Gold-plated contacts have a capacity of 0.1A at 24VAC/DC.

Materials and Temperature Ratings
The housing materials include PA6T/X reinforced with glass fiber, with options for polyphenylene sulfide (PPS) for higher temperature resistance. The membrane is made from fluorsilicone rubber, and various cable materials are available, including PVC, silicone, polyurethane, and PTFE, each with specific temperature ratings.

Connection and Configuration
Connections can be made via cables or supple wires, with standard and underside cable outlets available. The reference code of the article provides details on the configuration, including the number of conductors, actuators, and approval identification.

Wiring Diagram
The wiring diagram varies based on the type of cable, independent wires, and actuators used. The document provides examples of wiring configurations with color-coded wires.

Actuating Force and Movement
The document details the actuating force, release force, free position, operating position, over-travel, and differential movement for various configurations of the MP320 series microswitches.
