General Technical Data

General Technical Data

Product catalog summary

Overview: This document is a technical specification guide for microswitches and actuators produced by Microprecision Electronics SA, covering the MP40, MP90, MP110 series, and their derivatives, along with connection sockets and protective terminal covers.

MP40 Series:

General Characteristics: Features a switching rating of 10A 400VAC, IP40 housing protection, and IP00 terminal protection. Complies with EN61058-1:92 + A1:93 standards and has a mechanical life of 50 million operations.
Design and Construction: Utilizes a snap-action mechanism with beryllium copper leaf springs and self-cleaning contacts. The housing is made of PA6T/X reinforced with glass fiber, auto-extinguishing according to UL94 V-O.
Actuators and Connections: Actuators are stainless steel, with connections via screw lugs. An insulating plate is required for metal surfaces.

MP90 Series:

General Characteristics: Similar to MP40 but with IP67 housing protection.
Design and Construction: Features a snap-action mechanism with a PA6T/X reinforced glass fiber housing.
Protection and Sealing: Ultrasonic welding protects the switching mechanism, though protruding terminals prevent full IP67 approval.

MP110 Series:

General Characteristics: Offers a switching rating of 10A 400VAC with IP67 and IP64 housing protection options.
Connections: Includes push-on clips and plug-in systems, with protective terminal covers for enhanced protection.
Design and Construction: Housing made of PA6T/X reinforced with glass fiber, with a fluorsilicone rubber membrane for a wide operating temperature range.

MP100 Series (Plug-on Connection Socket):

Protection: Provides IP67 protection with sealing rings, secured by an M3 screw.
Compatibility: Designed for use with MP110 microswitches and derivatives.

MP110-Z Series (Protective Terminal Cover):

Protection: Offers IP64 protection for MP110 microswitches.
Design Variants: Available with different outlet configurations and sealing options.

Certifications: The company is ISO9001/EN29001 certified since 1993, with several international approval certificates.

General Characteristics: Specifications for microswitch series MP110, MP210, and MP320, designed for various operating conditions with specific temperature ranges, materials, and protection classes.

Temperature and Material Specifications:

Certified temperature ranges from -40°C to +130°C, with materials like silicone gaskets and polyamide cable glands having specific ranges.
Materials include silicone, polyamide with glass fiber, and fluorsilicone rubber for environmental resistance.

Switching Characteristics:

MP110 series features reduced contact gaps and high switching precision for low voltage and current applications.
MP210 series offers IP67 and IP68 protection for high durability environments, with changeover and off-on circuit options.
MP320 series is a sealed miniature microswitch with IP67 protection for frequent use and long mechanical life.

Design and Configuration: Detailed diagrams and specifications for actuating force, release force, free position, operating position, over-travel, and differential movement for each series, with customization options.

Applications and Recommendations: Suitable for environments with varying mechanical stress and exposure, with recommendations for specific configurations based on load and conditions.

Conclusion: A comprehensive guide for selecting and configuring microswitches from the MP110, MP210, and MP320 series, providing detailed specifications and recommendations for diverse applications.

Specifications:

Materials: Housing and membranes use PA6T/X, PPS, PBT-ASA, and rubbers like Fluorsilicone and Chloroprene.
Temperature Ranges: Components rated for different ranges, with PTFE and Silicone rubber up to 200°C.
Contact Materials: Silver and gold-plated contacts for specific applications.

Procedures:

Connection Types: Via cables or free wires, with specific configurations for different series.
Actuator Installation: Emphasizes proper alignment and securing to prevent damage.

Standards and Approvals:

Compliance with standards like UL94V-O and EN61058, with CSA and VDE approvals.

Recommendations:

Proper material selection based on environmental conditions.
Follow fitting instructions to maintain switch integrity and functionality.

Key Data from Tables and Diagrams:

Specifications for actuating force, release force, and travel distances for different models.
Wiring diagrams with color codes for wire identification.

Catalog excerpts

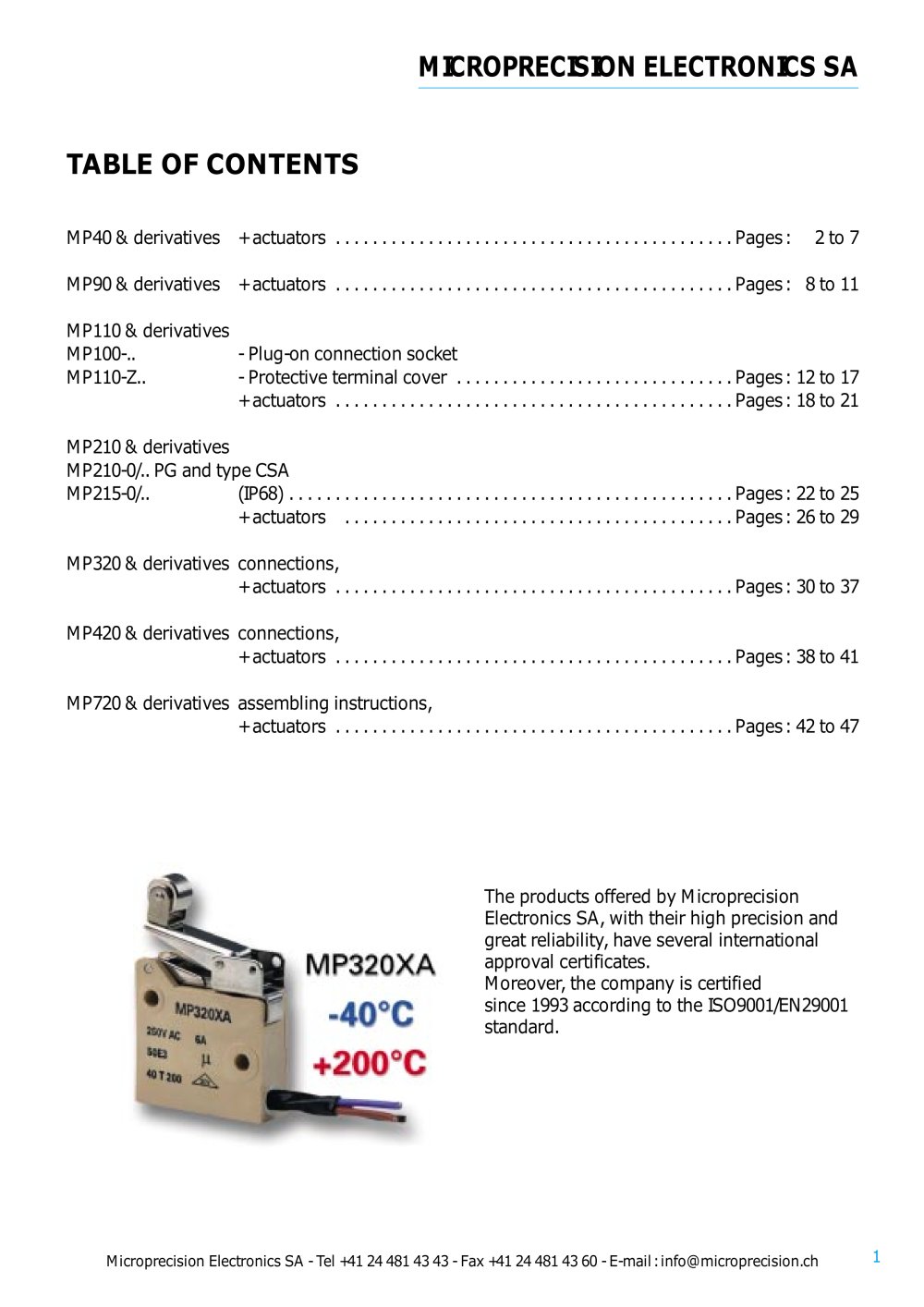

MICROPRECISIONELECTRONICSSA TABLEOFCONTENTS > MP40 & derivatives+ actuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages:2 to 7MP90 & derivatives+ actuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages:8 to 11MP110 & derivativesMP100-..- Plug-on connection socket MP110-Z..- Protective terminal cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages:12 to 17+ actuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages:18 to 21MP210 & derivativesMP210-0/.. PG and type CSA MP215-0/..(IP68) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages:22 to 25+ actuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages:26 to 29MP320 & derivativesconnections,+ actuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages:30 to 37MP420 & derivativesconnections,+ actuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages:38 to 41MP720 & derivativesassembling instructions,+ actuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages:42 to 47 The products offered by MicroprecisionElectronics SA, with their high precision and great reliability, have several international approval certificates. Moreover, the company is certified since 1993 according to the ISO9001/EN29001 standard. Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: [email protected] 1 size="-2">

Open the catalog to page 1

(mm)DIFFERENTIAL MOVEMENT max. (N)FREE POSITION max. (mm) DESIGNATION (mm) OVER-TRAVEL min (N) OPERATING POSITION min. (mm) ACTUATING FORCE Fa RELEASE FORCE Fr Pr Pa sr sd >

Open the catalog to page 4

(mm)DIFFERENTIAL MOVEMENT max. (N)FREE POSITION max. (mm) DESIGNATIONACTUATING FORCE (mm) OVER-TRAVEL min (N) OPERATING POSITION min. (mm) Fa RELEASE FORCE Fr Pr Pa sr sd >

Open the catalog to page 6

(mm)OVER-TRAVEL max. (N)RELEASE FORCE max. (mm)DESIGNATION (mm)OPERATING POSITION min (N)FREE POSITION min. (mm)DIFFERENTIAL MOVEMENT ACTUATING FORCE Fa Fr Pr Pa sr sd >

Open the catalog to page 7

The microswitchesMP90 & derivatives are snap-action changeovers, simple switching action, connection by screw lugs. > Approval:Switching rating : 10A 400VAC Degree of protection : HousingIP67TerminalsIP00Class of protection: II Micro-switching: Distance between contacts :0,5 mm Up to standard :EN61058-1:92 + A1:93 Frequent functioning:50 E3 Mechanical life:50 x 10 > 6 operationsSnap-action mechanism:Beryllium coppers leaf spring with self-cleaning contactsActuators:Overall dimensions in stainless steel Dimensions :DIN 41 635, ES-form >

Open the catalog to page 8

SERIES MP90 & DERIVATIVES MP90-0MP90-1BL MP91-5CAL12 > ActuatorMicroswitchStandard typeContact materialif not silver Option 1: gold-plated Housing:PA6T/X reinforced with glass fibreAuto-extinguishing according to UL94V-O Certified temperature- 40C to+130аCMembrane:Fluorsilicone rubber MFQ- 40C to+175аC MP90 DEGREE OF PROTECTION > This type is perfectly sealed: the switching mechanism is completely protected by the hous-ing, which is itself assembled by ultrasonic welding. However, as it has protruding connec- tion terminals which could come in contact with parts of the human body (IEC-529, 1st...

Open the catalog to page 9

(mm)DIFFERENTIAL MOVEMENT max. (N)FREE POSITION max. (mm) DESIGNATIONACTUATING FORCE (mm) OVER-TRAVEL min (N) OPERATING POSITION min. (mm) Fa RELEASE FORCE Fr Pr Pa sr sd >

Open the catalog to page 10

(mm)OVER-TRAVEL max. (N)RELEASE FORCE max. (mm)DESIGNATION (mm)OPERATING POSITION min (N)FREE POSITION min. (mm)DIFFERENTIAL MOVEMENT ACTUATING FORCE Fa Fr Pr Pa sr sd >

Open the catalog to page 11

MP110 microswitchesare snap-action changeovers, simple switching action. Connections: -Push-on clips6.35 x 0.8mm-Plug-in system ofconnection MP100-..-Protective terminalcovers MP110-Z.. > II Approval:Switching rating :10A 400VAC Degree of protection MP110-0:HousingIP67TerminalsIP00MP110-0 + MP100-..:IP67 MP110-0 + MP110-Z..:IP64 Class of protection: Micro-switching: Distance between contacts :0,5 mm Up to standard :EN61058-1:92 + A1:93 Frequent functioning:50 E3 Mechanical life:50 x 10 > 6 operationsSnap-action mechanism:Beryllium coppers leaf spring with self-cleaning contactsActuators:Overall...

Open the catalog to page 12

(mm)OVER-TRAVEL max. (N)RELEASE FORCE max. (mm)DESIGNATION (mm)OPERATING POSITION min (N)FREE POSITION min. (mm)DIFFERENTIAL MOVEMENT ACTUATING FORCE Fa Fr Pr Pa sr sd >

Open the catalog to page 17

(mm)DIFFERENTIAL MOVEMENT max. (N)FREE POSITION max. (mm) DESIGNATIONACTUATING FORCE (mm) OVER-TRAVEL min (N) OPERATING POSITION min. (mm) Fa RELEASE FORCE Fr Pr Pa sr sd >

Open the catalog to page 18

(mm)OVER-TRAVEL max. (N)RELEASE FORCE max. (mm)DESIGNATION (mm)OPERATING POSITION min (N)FREE POSITION min. (mm)DIFFERENTIAL MOVEMENT ACTUATING FORCE Fa Fr Pr Pa sr sd >

Open the catalog to page 19

(mm)DIFFERENTIAL MOVEMENT max. (N)FREE POSITION max. (mm) DESIGNATIONACTUATING FORCE (mm) OVER-TRAVEL min (N) OPERATING POSITION min. (mm) Fa RELEASE FORCE Fr Pr Pa sr sd >

Open the catalog to page 20

(mm)DIFFERENTIAL MOVEMENT max. (N)FREE POSITION max. (mm) DESIGNATIONACTUATING FORCE (mm) OVER-TRAVEL min (N) OPERATING POSITION min. (mm) Fa RELEASE FORCE Fr Pr Pa sr sd >

Open the catalog to page 26

(mm)OVER-TRAVEL max. (N)RELEASE FORCE max. (mm)DESIGNATION (mm)OPERATING POSITION min (N)FREE POSITION min. (mm)DIFFERENTIAL MOVEMENT ACTUATING FORCE Fa Fr Pr Pa sr sd >

Open the catalog to page 27

The MP320 miniaturemicroswitch is a snap-action changeover simple break with the connection cable directly over-moulded into the housing. > Approvals:depending on the version: CSA II Degree of protection:IP67 Class of protection: Micro-switch: Contact-gap:0.8 mm Standards:EN61058-1:92 + A1:93 Frequent functioning:50 E3 Mechanical life:50 x 10 > 6 operationsSnap-action mechanism:Beryllium coppers leaf spring withself-cleaning contact.Actuators:Overall dimensions in stainless steel. Dimensions:DIN 41 635, form A > Depending on the material of the electrical contacts and the cross-section of conductors....

Open the catalog to page 30
