Resolver Compact verison, Shaft type Typ: REH 2840 - 1

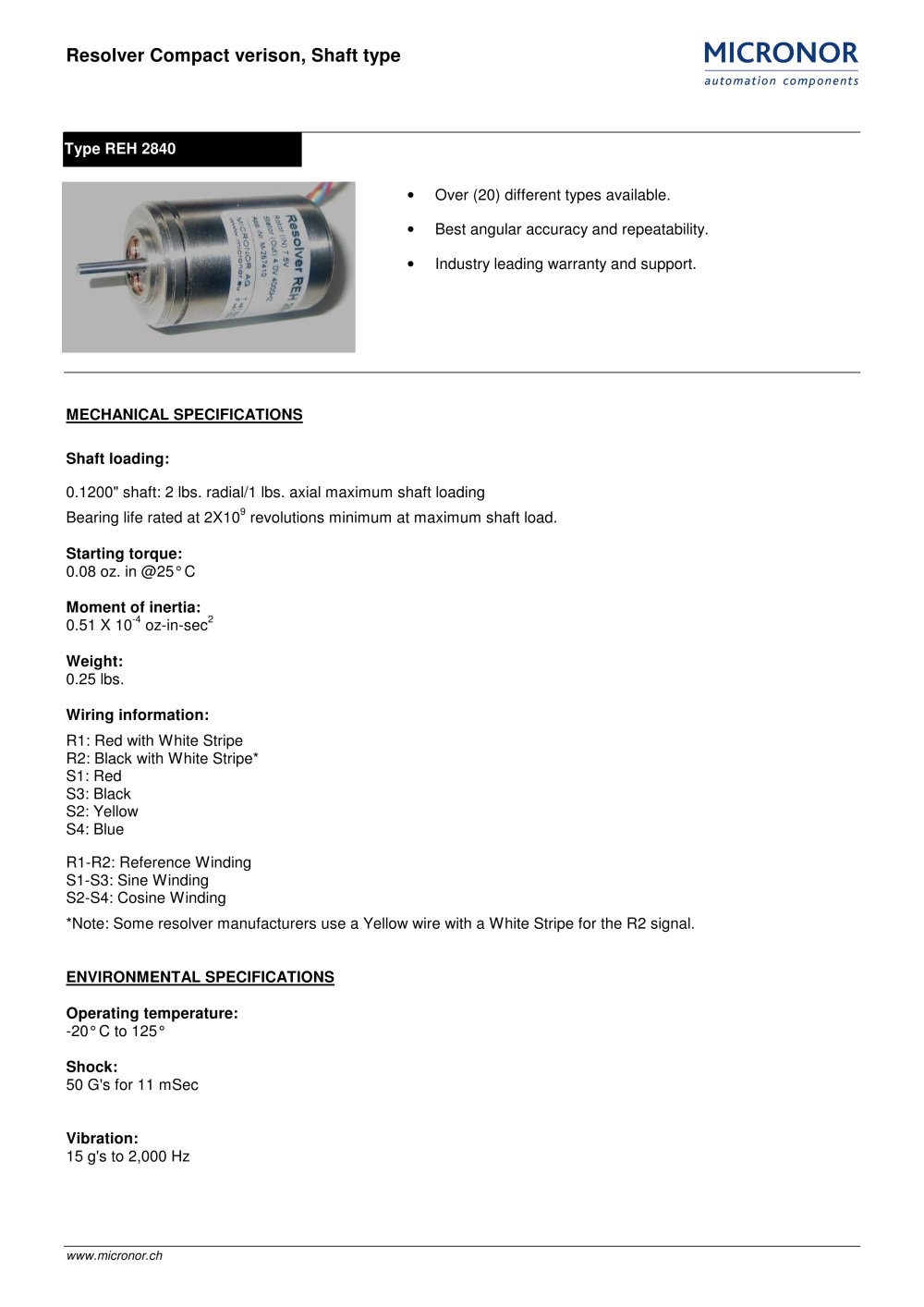

Type REH 2840 Over (20) different types available. Օ Best angular accuracy and repeatability. Industry leading warranty and support. MECHANICAL SPECIFICATIONS Shaft loading: 0.1200" shaft: 2 lbs. radial/1 lbs. axial maximum shaft loading Bearing life rated at 2X10 > 9 revolutions minimum at maximum shaft load. Starting torque: 0.08 oz. in @25հ C Moment of inertia: > -4 0.51 X 10 oz-in-sec > 2 Weight: 0.25 lbs. Wiring information: R1: Red with White Stripe R2: Black with White Stripe* S1: Red S3: Black S2: Yellow S4: Blue R1-R2: Reference Winding S1-S3: Sine Winding S2-S4: Cosine Winding *Note: Some resolver manufacturers use a Yellow wire with a White Stripe for the R2 signal. ENVIRONMENTAL SPECIFICATIONS Operating temperature: -20 C to 125а Shock: 50 G's for 11 mSec Vibration: 15 g's to 2,000 Hz > www.micronor.ch size="-1">
