Input/output extension Typ: MR 610
6Pages

{{requestButtons}}

Catalog excerpts

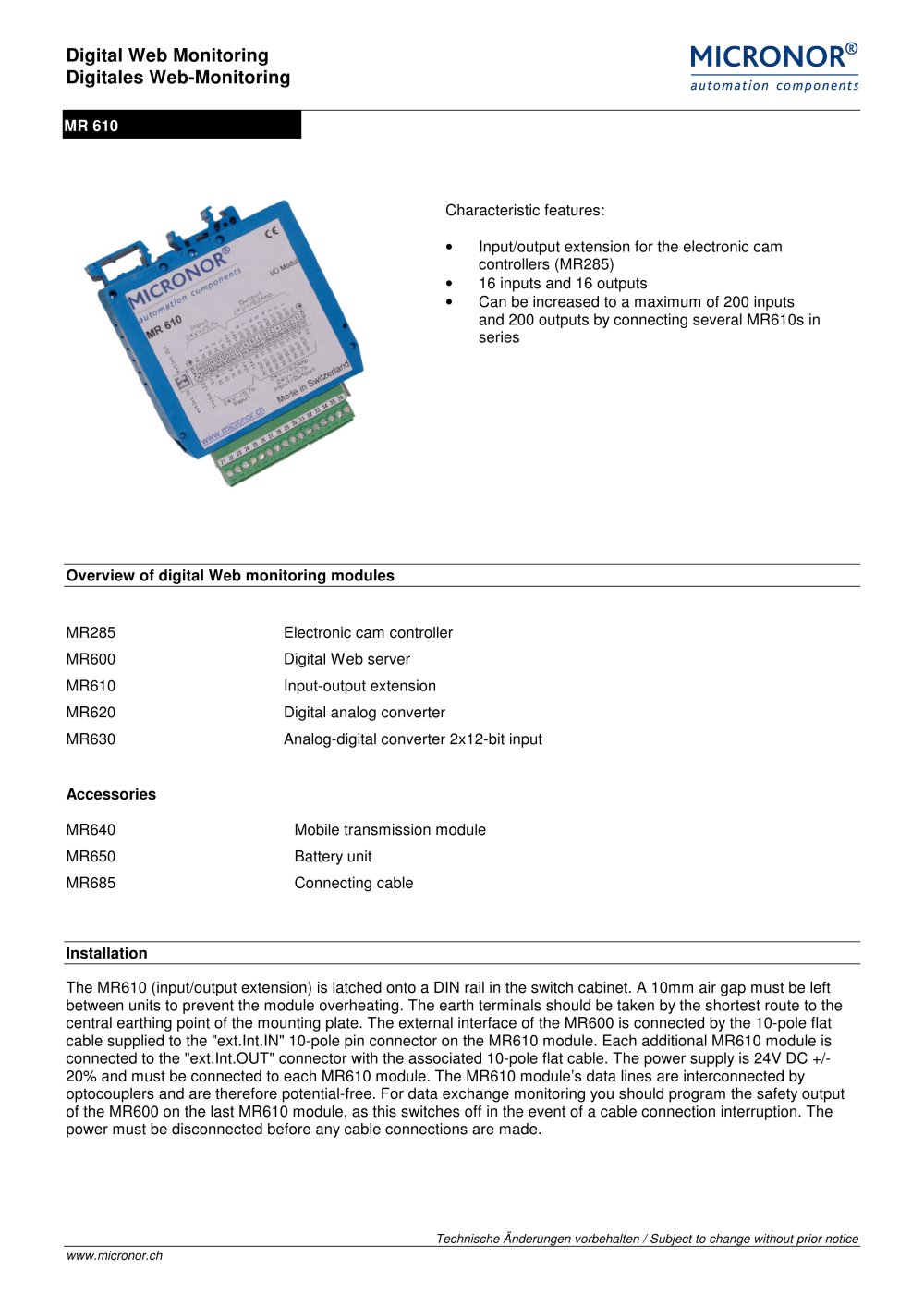

Input/output extension Typ: MR 610 - 1

MR 610 Characteristic features: Input/output extension for the electronic cam controllers (MR285) Օ 16 inputs and 16 outputs Can be increased to a maximum of 200 inputs and 200 outputs by connecting several MR610s in series Overview of digital Web monitoring modules MR285 Electronic cam controller MR600 Digital Web server MR610 Input-output extension MR620 Digital analog converter MR630 Analog-digital converter 2x12-bit input Accessories MR640 Mobile transmission module MR650 Battery unit MR685 Connecting cable Installation The MR610 (input/output extension) is latched onto a DIN rail in the switch cabinet. A 10mm air gap must be left between units to prevent the module overheating. The earth terminals should be taken by the shortest route to the central earthing point of the mounting plate. The external interface of the MR600 is connected by the 10-pole flat cable supplied to the "ext.Int.IN" 10-pole pin connector on the MR610 module. Each additional MR610 module is connected to the "ext.Int.OUT" connector with the associated 10-pole flat cable. The power supply is 24V DC +/- 20% and must be connected to each MR610 module. The MR610 moduleՒs data lines are interconnected by optocouplers and are therefore potential-free. For data exchange monitoring you should program the safety output of the MR600 on the last MR610 module, as this switches off in the event of a cable connection interruption. The power must be disconnected before any cable connections are made. > Technische nderungen vorbehalten / Subject to change without prior notice www.micronor.ch size="-1">

Open the catalog to page 1
Input/output extension Typ: MR 610 - 2

Digital Web Monitoring Digitales Web-Monitoring > MR 610 Dimensional drawing Technische nderungen vorbehalten / Subject to change without prior notice www.micronor.ch size="-2">

Open the catalog to page 2
Input/output extension Typ: MR 610 - 3

MR 610 Power supply terminal configuration Electrical connections The units power supply is transferred through the power supply of the outputs. Before making a start on the wiring please take careful note of the section entitled "Outputs " and "Inputs ". Terminal configuration of outputs 9-16 / inputs 9-16 Note: 0V terminals 1, 21, 16 and 36 are interconnected +24V DC terminals 10, 11, 30 and 31 are interconnected Outputs 9-16 have double-use terminals. For example, if output 13 is set this means that input 13 is also active. Terminal configuration of outputs 1-8 Terminal 1: 0V power...

Open the catalog to page 3
Input/output extension Typ: MR 610 - 4

MR 610 MR610 MR600 External interface Data exchange takes place via the external interface using the cam controller (MR285). The MR620 module has two 10-pole pin connectors, the "ext.Int.IN" and the "ext.Int.OUT" connection. Data exchange with the MR285 operates via the "ext.Int.IN". Data exchange with an additional module (MR610, MR620 or MR630) takes place via the "ext.Int.OUT" ). Data exchange is effected by way of optocouplers, so the connection remains potential-free. This connection method can be used to set up a BUS system for a wide variety of applications. A 10-pin flat cable...

Open the catalog to page 4
Input/output extension Typ: MR 610 - 5

MR 610 Status LED The MR610 has a three-colour status LED: dark: no power supply connected. green: indicates correct operation. red: Indicates that the outputs have switched off due to overload or short circuit. orange: Indicates that no data exchange is currently taking place through an MR600. Possible causes: the length of cable fitted to the MR600 exceeds the safe 300 metre limit, the MR6xx is switched off, or data exchange has been interrupted (e.g. cable break). In every case all the outputs of the MR610 module are reset. The outputs The MR610 has 16 short circuit-proof outputs. They...

Open the catalog to page 5
Input/output extension Typ: MR 610 - 6

MR 610 Technical data Display three-colour status LED Number of outputs 16, of which outputs 9-16 are connected to inputs 9-16 Number of inputs 16, of which inputs 9-16 are connected to outputs 9-16 Length of connecting cable between MR600 and MR610 max. 300m Power supply 24V DC +/- 20% Output voltage 24V DC, pulse switching Output current 0.2A per output, short circuit-proof Current consumption approx. 80mA with no load Connections for: Power supply and outputs via IP20 screw terminal Inputs via IP20 screw terminal Assembly convenient DIN-compliant snap-on assembly rail, alignable with a...

Open the catalog to page 6
