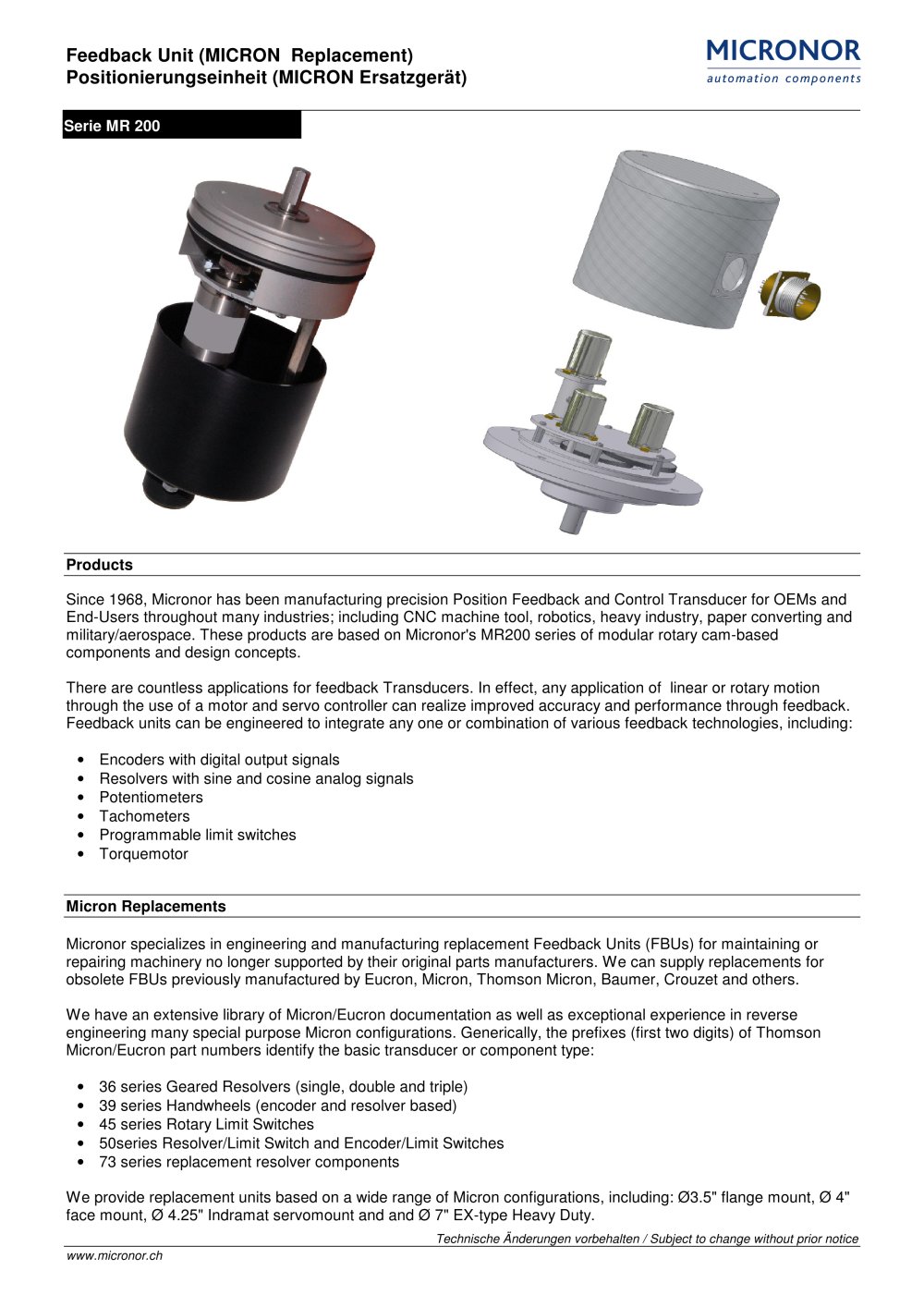

Serie MR 200 Products Encoders with digital output signals Since 1968, Micronor has been manufacturing precision Position Feedback and Control Transducer for OEMs and End-Users throughout many industries; including CNC machine tool, robotics, heavy industry, paper converting and military/aerospace. These products are based on Micronor's MR200 series of modular rotary cam-based components and design concepts. There are countless applications for feedback Transducers. In effect, any application of linear or rotary motion through the use of a motor and servo controller can realize improved accuracy and performance through feedback. Feedback units can be engineered to integrate any one or combination of various feedback technologies, including: 䕕 Resolvers with sine and cosine analog signals Potentiometers Օ Tachometers Programmable limit switches Օ Torquemotor Micron Replacements Micronor specializes in engineering and manufacturing replacement Feedback Units (FBUs) for maintaining or repairing machinery no longer supported by their original parts manufacturers. We can supply replacements for obsolete FBUs previously manufactured by Eucron, Micron, Thomson Micron, Baumer, Crouzet and others. We have an extensive library of Micron/Eucron documentation as well as exceptional experience in reverse engineering many special purpose Micron configurations. Generically, the prefixes (first two digits) of Thomson Micron/Eucron part numbers identify the basic transducer or component type: 36 series Geared Resolvers (single, double and triple) Օ 39 series Handwheels (encoder and resolver based) 45 series Rotary Limit Switches Օ 50series Resolver/Limit Switch and Encoder/Limit Switches 73 series replacement resolver components We provide replacement units based on a wide range of Micron configurations, including: 3.5" flange mount, 4" face mount, ؘ 4.25" Indramat servomount and and 7" EX-type Heavy Duty. > Technische nderungen vorbehalten / Subject to change without prior notice www.micronor.ch size="-1">
Open the catalog to page 1
Feedback Unit (MICRON Replacement) Positionierungseinheit (MICRON Ersatzgert) > Serie MR 200 Outline drawing 3.5" Technische 䘄nderungen vorbehalten / Subject to change without prior notice www.micronor.ch size="-2">
Open the catalog to page 2
Feedback Unit (MICRON Replacement) Positionierungseinheit (MICRON Ersatzgert) > Serie MR 200 Outline drawing 4" Technische 䘄nderungen vorbehalten / Subject to change without prior notice www.micronor.ch size="-2">
Open the catalog to page 3
Feedback Unit (MICRON Replacement) Positionierungseinheit (MICRON Ersatzgert) > Serie MR 200 Outline drawing 4.25" Technische 䘄nderungen vorbehalten / Subject to change without prior notice www.micronor.ch size="-2">
Open the catalog to page 4
Feedback Unit (MICRON Replacement) Positionierungseinheit (MICRON Ersatzgert) > Serie MR 200 Outline drawing 7" Technische 䘄nderungen vorbehalten / Subject to change without prior notice www.micronor.ch size="-2">
Open the catalog to page 5
sales@micronor.ch Serie MR 200 How to Specify Feedback Transducers Please appreciate that every Micron feedback transducer ever produced is a unique combination of many, many variables - housing/mounting type, gear ratios, type of resolver, number of limit switches, connector types, connector position, etc There was no one standard but there were some elements that were more common than others. Statistically, about 70% of the replacements we manufacture tend to share these common attributes: 䅘3.5" flange mount housing with 3/8" shaft with dual flats Use Harowe 11BRW-300-F-95A resolvers...
