Digital-analog converter Typ: MR 620
6Pages

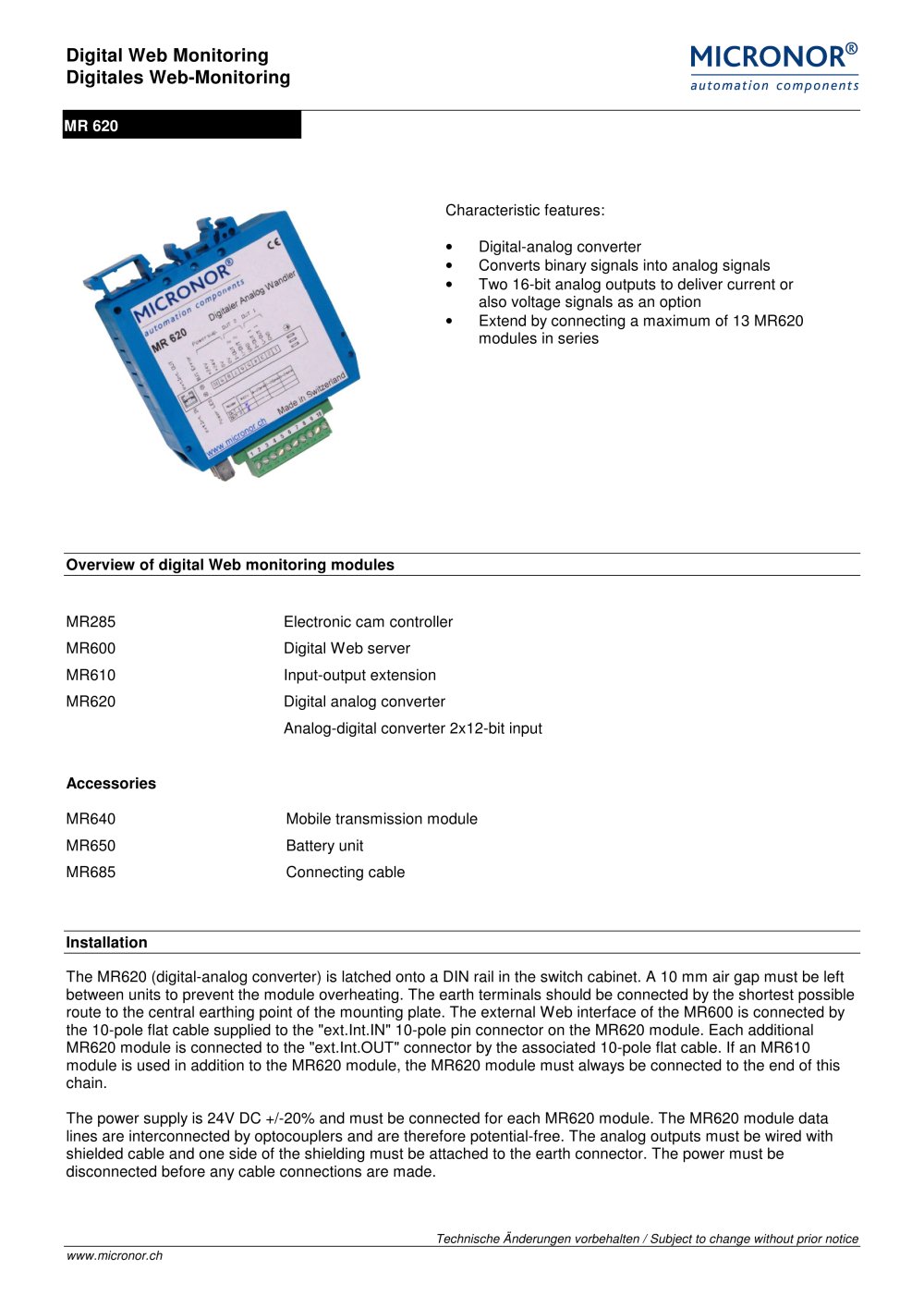

MR 620 Characteristic features: Digital-analog converter Օ Converts binary signals into analog signals Two 16-bit analog outputs to deliver current or also voltage signals as an option Օ Extend by connecting a maximum of 13 MR620 modules in series Overview of digital Web monitoring modules MR285 Electronic cam controller MR600 Digital Web server MR610 Input-output extension MR620 Digital analog converter Analog-digital converter 2x12-bit input Accessories MR640 Mobile transmission module MR650 Battery unit MR685 Connecting cable Installation The MR620 (digital-analog converter) is latched onto a DIN rail in the switch cabinet. A 10 mm air gap must be left between units to prevent the module overheating. The earth terminals should be connected by the shortest possible route to the central earthing point of the mounting plate. The external Web interface of the MR600 is connected by the 10-pole flat cable supplied to the "ext.Int.IN" 10-pole pin connector on the MR620 module. Each additional MR620 module is connected to the "ext.Int.OUT" connector by the associated 10-pole flat cable. If an MR610 module is used in addition to the MR620 module, the MR620 module must always be connected to the end of this chain. The power supply is 24V DC +/-20% and must be connected for each MR620 module. The MR620 module data lines are interconnected by optocouplers and are therefore potential-free. The analog outputs must be wired with shielded cable and one side of the shielding must be attached to the earth connector. The power must be disconnected before any cable connections are made. > Technische nderungen vorbehalten / Subject to change without prior notice www.micronor.ch size="-1">

Digital Web Monitoring Digitales Web-Monitoring > MR 620 Dimensional drawing Technische nderungen vorbehalten / Subject to change without prior notice www.micronor.ch size="-2">

Power supply terminal configuration > MR 620 Electrical connections Analog output 1 terminal configuration Terminal 7: 0V power supply Terminal 8: 0V power supply Terminal 9: +24V DC power supply Terminal 10: +24V DC power supply Terminal 1: GND reference potential (0V) Terminal 2: voltage output +/- 10Volt maximum 10mA Terminal 3: current output 0-20mA, 4-20mA or 0-24mA. when RL is max. 550 Analog output 2 terminal configuration Terminal 4: GND reference potential (0V) Terminal 5: voltage output +/- 10Volt maximum 10mA Terminal 6: current output 0-20mA, 4-20mA or 0-24mA. when RL is max....

MR 620 MR620 MR600 External interface Data exchange is effected by way of the external interface. The MR620 module has two 10-pole pin connectors, the "ext.Int.IN" and the "ext.Int.OUT" connection. Data exchange with the MR600 operates by way of the "ext.Int.IN". Data exchange with a further module (MR610, MR620 or MR630) takes place via the "ext.Int.OUT". Data exchange is effected by optocouplers, so the connection remains potential-free. This connection method can be used to set up a BUS system for a wide variety of applications. A 10-pin flat cable (MR685) approx. 4.5 cm in length is...

NB: An additional small plug-in PCB is needed for the +/- 10Volt voltage output. > MR 620 The analog outputs . The outputs are not free of potential to the power supply. The analog outputs must be wired with shielded cable and one side of the shielding attached to the earth connector. The MR620 has two 16-bit analog outputs. They supply either 0-20mA, 4-20mA, 0-24mA or optionally +/- 10Volt signals. The maximum output current at +/- 10Volt is 10mA (not short circuit-proof). The load resistance at current output must not exceed 550 Signal level of analog outputs The MR620 module offers 4...

Voltage output +/- 10Volt to 10mA (not short circuit-proof) Resolution 16-bit Maximum response time at full level excursion approx. 3ms Length of connecting cable between MR610 and MR620 max. 300m Power supply 24V DC +/- 20% Current consumption approx. 60mA with no load Connections for: power supply and outputs via IP20 screw terminal Assembly convenient DIN-compliant snap-on assembly rail, alignable with a 10mm air gap Disassembly by pulling back the snap-on catch Protective system housing conforms to IP20 Operating temperature 0C to +50аC Weight approx. 150g MR 620 Technical data Display...
