Compact Incremental encoder Typ: ESI 36 K

Compact Incremental encoder Typ: ESI 36 K
2Pages

Catalog excerpts

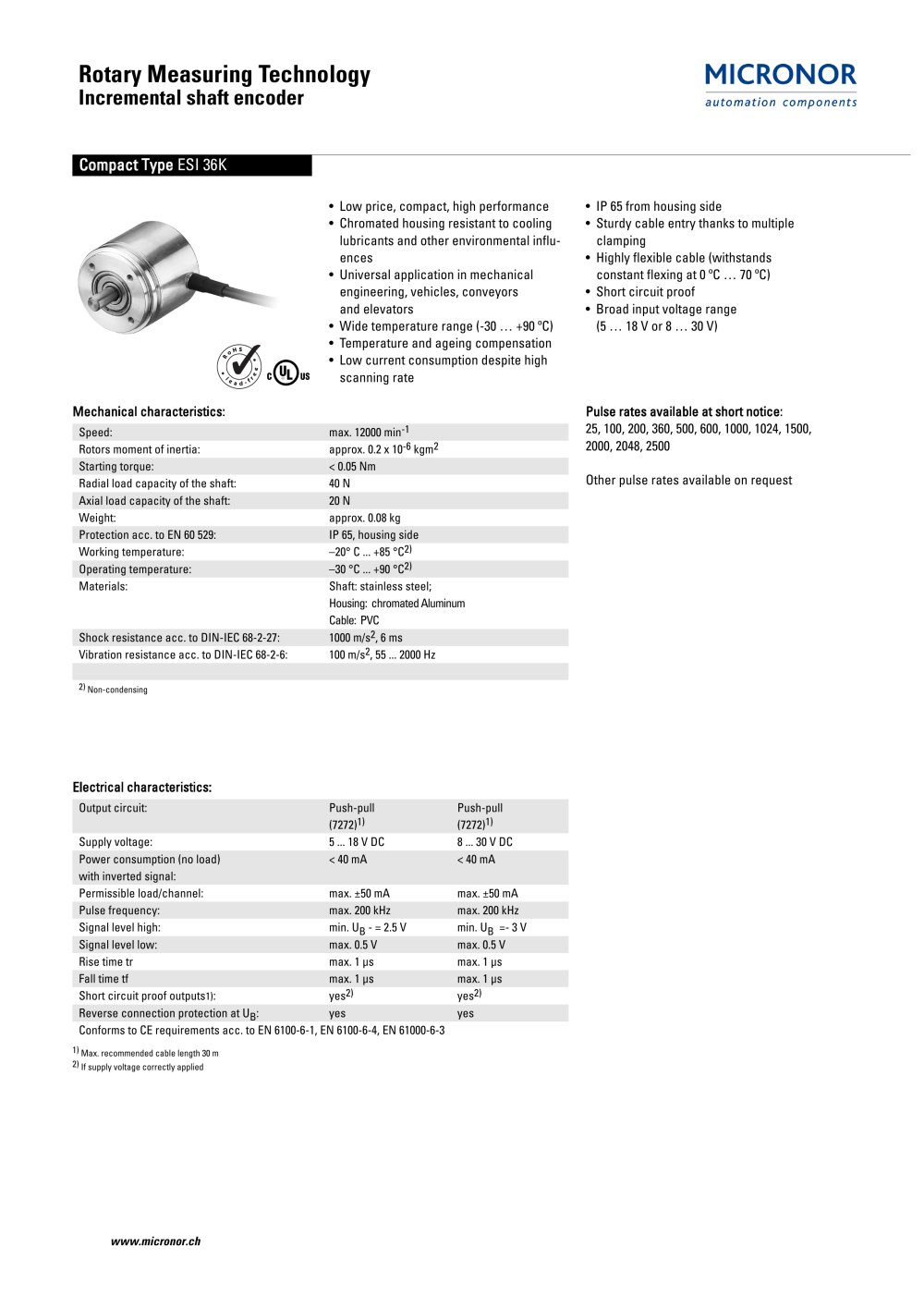

Compact Incremental encoder Typ: ESI 36 K - 1

Rotors moment of inertia:approx. 0.2 x 10 > -6 kgm > 2 Starting torque:< 0.05 NmRadial load capacity of the shaft:40 N Axial load capacity of the shaft:20 N Weight:approx. 0.08 kg Protection acc. to EN 60 529:IP 65, housing side Working temperature:20ְ C ... +85 C > 2) Operating temperature:Ж30 C ... +90 аC > 2) Materials:Shaft: stainless steel; Housing: chromated Aluminum Cable: PVC Shock resistance acc. to DIN-IEC 68-2-27:1000 m/s > 2 , 6 msVibration resistance acc. to DIN-IEC 68-2-6:100 m/s > 2 , 55 ... 2000 Hz > 2)Non-condensing Output circuit:Push-pullPush-pull (7272) > 1) (7272) > 1) Supply voltage:5 ... 18 V DC 8 ... 30 V DC Power consumption (no load)< 40 mA < 40 mA with inverted signal:Permissible load/channel:max. 50 mAmax. ѱ50 mA Pulse frequency:max. 200 kHzmax. 200 kHz Signal level high:min. U > B - = 2.5 Vmin. U > B =- 3 V Signal level low:max. 0.5 Vmax. 0.5 V Rise time trmax. 1 smax. 1 յs Fall time tfmax. 1 smax. 1 յs Short circuit proof outputs > 1) :yes > 2) yes > 2) Reverse connection protection at U > B :yesyesConforms to CE requirements acc. to EN 6100-6-1, EN 6100-6-4, EN 61000-6-3 > 1)Max. recommended cable length 30 m2) If supply voltage correctly applied www.micronor.ch >

Open the catalog to page 1

Compact Incremental encoder Typ: ESI 36 K - 2

Signal:0 V+UBAABB00ShieldColour:WHBNGNYEGYPKBURD > Insulate unused outputs before initial startup. f7 f7 Type series Pulse rate (e.g. 500 pulses => 0500) Bracket 2 = Synchronous bracket Type of connection 3 = Clamping bracket 1 = cable axial (2 m PVC cable) 2 = cable radial (2 m PVC cable) Shaft 1 = Ը 4 mm Output and voltage supply 2 = 5 mm 2= Push-pull with inverted signals 3 = 6 mm x 12.5 mm 5 ... 18 V DC Power supply 5 = 踸 1/4 x 12.5 mm > 3 = Push-pull without inverted signals 8 ... 30 V DC Power supply 4 = Push-pull with inverted signals 8 ... 30 V DCPower supply www.micronor.ch >

Open the catalog to page 2
