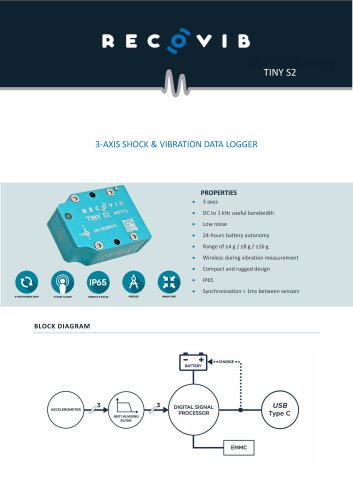

3-AXIS SHOCK & VIBRATION DATA LOGGER BLOCK DIAGRAM Wireless during vibration measurement Compact and rugged design

The RECOVIB Tiny S2 is configured by connecting it to a PC or smartphone via USB. The supplied software allows time synchronization, measurement range selection, sampling frequency, and start/stop interval programming. Five sampling frequencies up to 4 kHz and three acceleration ranges are available to suit a wide range of applications, from low-frequency structural monitoring to high-frequency shock measurements. Once configured and disconnected, the sensor records autonomously for up to 24 hours, entering sleep mode automatically at the preset stop time. Recording can also be triggered by simply...

The RECOVIB Tiny S2 is suited for a wide range of industrial and field applications. Its compact form factor, simple installation, and high-quality data capture make it easy to deploy in demanding environments. Typical applications include: • Structural analysis and health monitoring • Vibration modal analysis • Machine vibration diagnostics • Rotating machinery measurements • Transport and packaging monitoring • Automotive testing • Temporary field monitoring

RECOVIB TINY APPMonitor your Tiny Vibration Recorder on your mobile phone. Set up your Tiny S2 device, define the recording period, then download and analyze the data. Download sensor measurements Transfer the latest recording to this device Sen sot ready — lap Select folder O Select the sensor folder Pick the mounted drive containing MEASURE.BIN MEASURE.BIN is transferred to this device Heed help? See a visual walk-through of how to locate the sensoi 0PEN Downloadable on your Android devices via Google Play Store free of charge.

RECOVIB SUITE SOFTWARE A free desktop application to configure the recorders, download measurement campaigns and analyze the data. Modules for the Recovib Tiny S2 : Recovib Tiny Set up the Tiny S2, define the recording period and download the recorded data to the host PC. Recovib Converter Export the recorded data in various formats: txt, wav, MATLAB, LabVIEW, HDF5 and more. Recovib Viewer Replay and analyse the recorded data in both the time and frequency domain. The Suite also includes the Recovib Feel and Recovib Monitor modules, used with the other RECOVIB sensors. Signal processing options...

Android smartphone - Minimum configuration Current minimum : Android 12(1) (EOL Dec 2026, grace until Dec 2028) (1) The minimum supported Android version corresponds to the Google End-of-Life (EOL) date + 24 months of grace period. This rule applies at each app update. Windows Computer - Minimum configuration Windows 10 64-bit operating system, x64-based processor 2 GB (Recommended: 8 GB or more for large projects) Accessories The Tiny S2 is delivered in a complete box including all the necessary accessories. A standard suitcase contains: Specifications subject to change without notice. – Last...
