Stand-alone Cleaning Device DC
Stand-alone Cleaning Device DC
The Stand-alone Cleaning Device is designed for the automatic cleaning of Microdrop dispenser heads (MD-K-series) outside the production environment. It restores dispenser heads to pristine condition by cleaning and priming them.
Specifications
The device accommodates various configurations of dispenser heads and includes a microprocessor-controlled cleaning program. This program features adjustable rinsing and drying cycles, with customizable cleaning cycles, durations, and sequences. The piezo of the dosing head can be activated to enhance cleaning.
Advantages
- Automated cleaning process
- Low personnel expenses
- Reproducible and operator-independent results
- Minimizes operator errors
Technical Data
- Cleaning Unit: DC-M-200
- Compatible Dispenser Heads: MD-K-... with 4 ml storage container
- Minimal Dispenser Nozzle: 30 μm
- Permitted Liquids: Dispensable liquids filtered with a 5 μm filter, solvable in water, acetone, or isopropanol
- Cleaning Liquids: Distilled water, acetone, or isopropanol, all filtered with a 5 μm filter
- Cleaning Duration: 10 to 40 minutes; Drying Time: 30 minutes; Total: 40 to 70 minutes
- Self-cleaning Cycle: 5 minutes
- Materials: PFA, PEEK, EPDM, ETFE
- Chemical Resistance: Aqueous media, organic solvents, weak acids, and alkaline
- Dimensions: 245 mm (w) x 380 mm (h) x 420 mm (d)
- Weight: 11.45 kg
Drive Electronics: DC-E-200
- Operating Modes: Cleaning of MD-K-... dispenser heads, options for nozzle diameters < 35 μm and > 35 μm, self-cleaning of DC-M-200
- Displays: Operating modes, piezo-supported cleaning, and level detector control signaled by LEDs
- Connections: Mains connection 100-240 VAC1A 50/60Hz, max. power output 40W, output pressure air supply (max. 1 bar), output control cable, 2 level control sensors inputs
- Output Signal: Piezo 200 V / 30 μs / 3 kHz
- Dimensions: 235 mm (w) x 145 mm (h) x 400 mm (d)
- Weight: 5.45 kg
Contact Information
Microdrop Technologies GmbH, Mühlenweg 143, 22844 Norderstedt, Germany
Phone: +49 (0)40 53 53 83-0
Fax: +49 (0)40 53 53 83-24
Email: [email protected]
Website: www.microdrop.de
Note: Specifications are subject to change without prior notice.

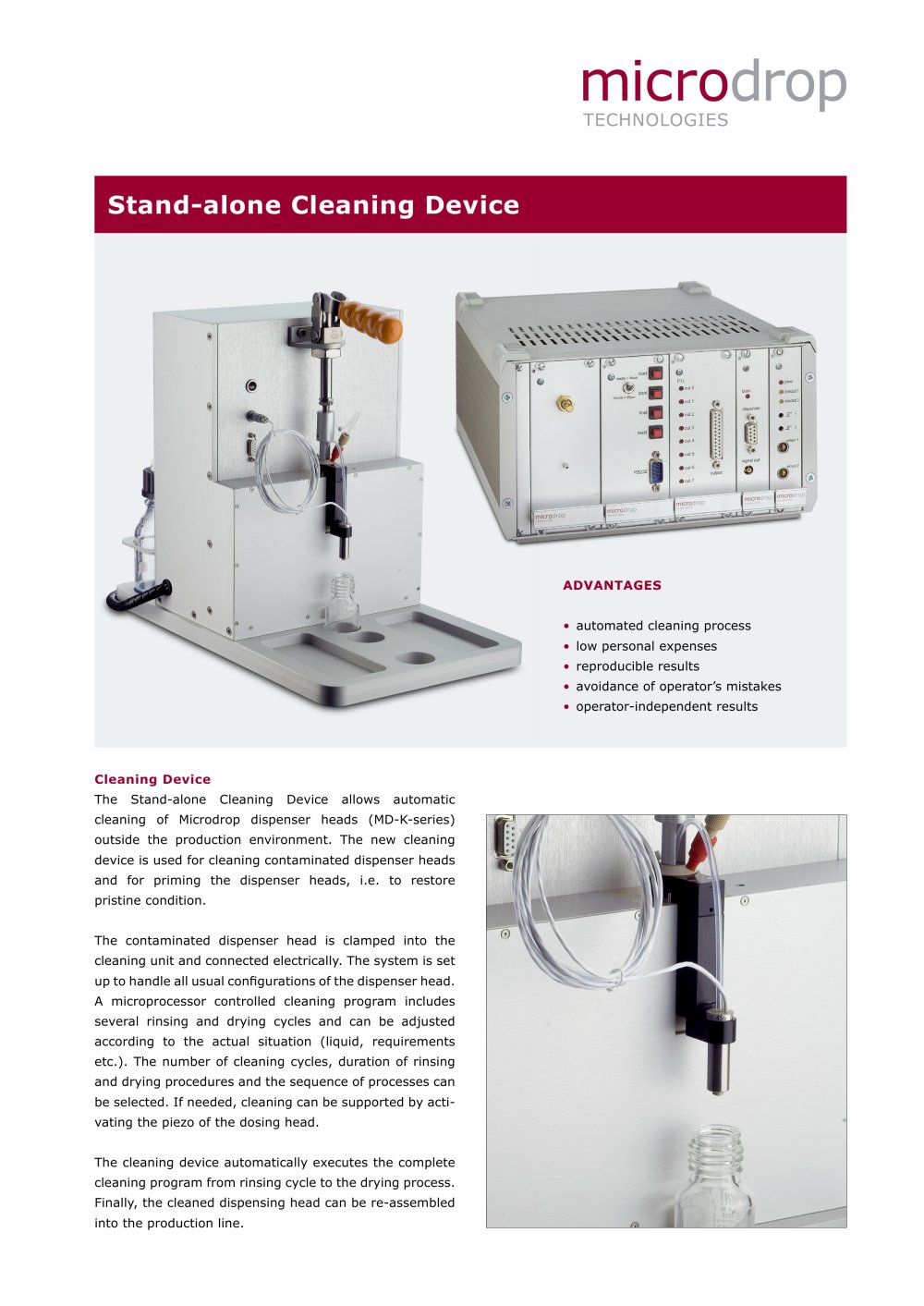

Catalog excerpts
ADVANTAGES automated cleaning process Օ low personal expenses reproducible results Օ avoidance of operators mistakes ҕ operator-independent results Cleaning Device The Stand-alone Cleaning Device allows automatic cleaning of Microdrop dispenser heads (MD-K-series) outside the production environment. The new cleaning device is used for cleaning contaminated dispenser heads and for priming the dispenser heads, i.e. to restore pristine condition.The contaminated dispenser head is clamped into the cleaning unit and connected electrically. The system is set up to handle all usual configurations of the dispenser head. A microprocessor controlled cleaning program includes several rinsing and drying cycles and can be adjusted according to the actual situation (liquid, requirements etc.). The number of cleaning cycles, duration of rinsing and drying procedures and the sequence of processes can be selected. If needed, cleaning can be supported by acti- vating the piezo of the dosing head.The cleaning device automatically executes the complete cleaning program from rinsing cycle to the drying process. Finally, the cleaned dispensing head can be re-assembled into the production line. >
