Autodrop Positioning System MD-P
Autodrop Positioning System MD-P
The Professional Positioning System MD-P-802 is engineered for high precision in the micrometer range, utilizing granite components for vibration damping. It features a stable z-axis and a movable x-y-table for substrate positioning relative to dispenser heads.
Design and Functionality
The system minimizes moved masses to enhance positioning accuracy, allowing control of up to 8 dispenser heads or pipettes simultaneously. Dispensing can occur in "start-stop" mode or "in-flight," with aiming accuracy varying by ±5 to ±10 μm per axis.
Advantages
- Versatile for R&D or production
- High axis accuracy: repetition ±1 μm, absolute ±5 μm
- Optional upgrade for 8 dispenser heads
- Optional flowbox
Technical Specifications
- Drive: DC-Servomotors, x- and y-axis 150 W, z-axis 30 W
- Travel Range: x-axis 200 mm, y-axis 200 mm, z-axis 80 mm
- Positioning Accuracy: ±5 μm (x- and y-axis), z-axis ±10 μm
- Repetition Accuracy: ±1 μm (x- and y-axis), z-axis ±5 μm
- Acceleration: max. 1000 mm/s²
- Load Capacity: max. 10 kg for x-y-table, z-axis 1.5 kg
- Speed: max. 125 mm/s (x- and y-axis), max. 75 mm/s (z-axis)
- Servo Control: 3-axis, RS 232, freely programmable
- Dimensions: width 750 mm, height 1520 mm, depth 740 mm
- Weight: approx. 380 kg
Contact Information
microdrop Technologies GmbH, Mühlenweg 143, 22844 Norderstedt, Germany
Phone: +49 (0)40 53 53 83-0
Fax: +49 (0)40 53 53 83-24
Email: [email protected]
Website: www.microdrop.de
Note: Specifications are subject to change without prior notice.
Catalog excerpts

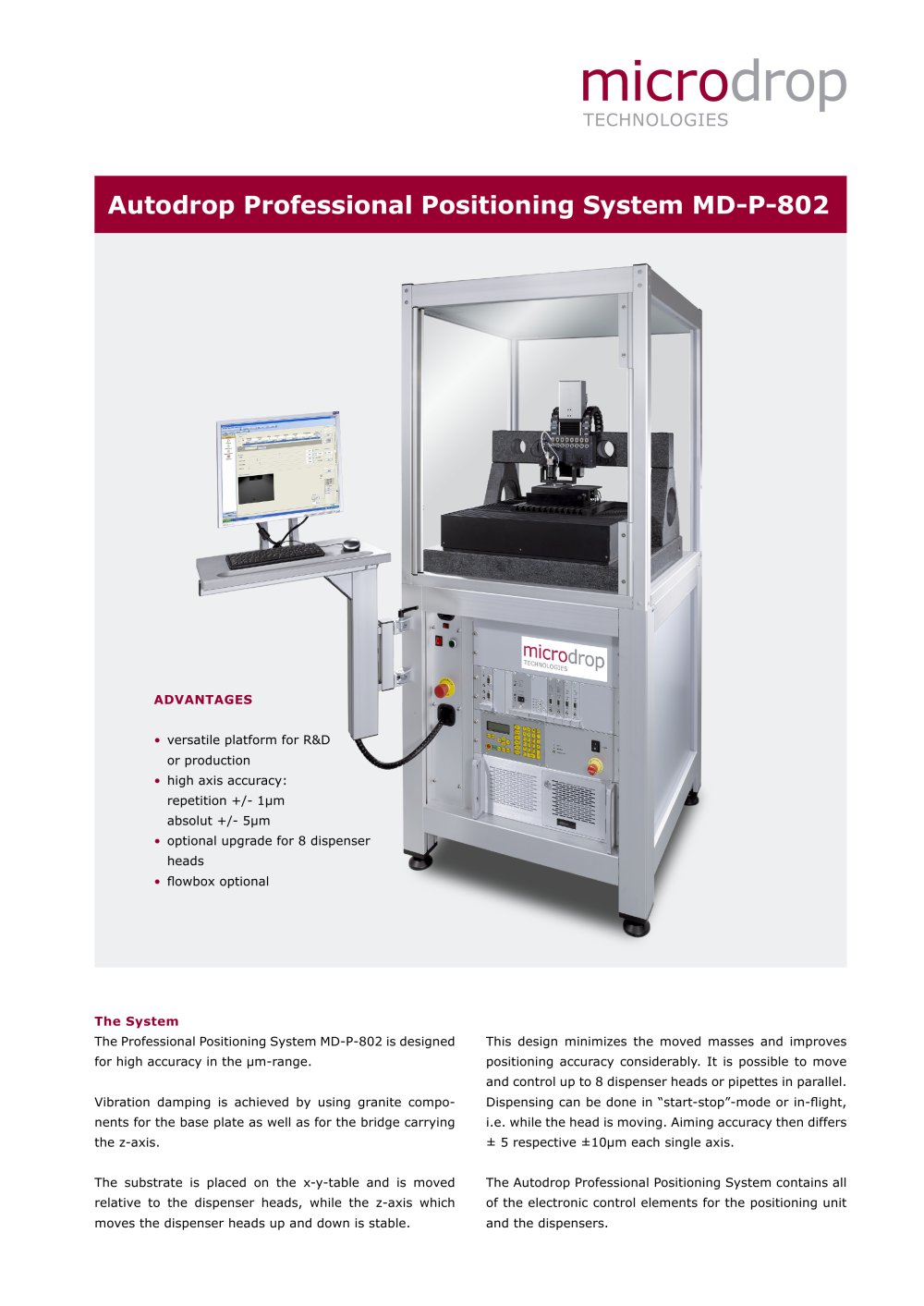

ADVANTAGES D VANTA G E S versatile platform for R&D or production versatile platform for R&D o r p roductio n Օ high axis accuracy: repetition +/- 1μm absolut +/- 5μm hig h axis accur acy : rep etition +/- 1μm a b so l ut + / - 5μm optional upgrade for 8 dispenser heads optional upgrade f or 8 dispens er he a ds Օ flowbox optional flowbox o p tional The System The Professional Positioning System MD-P-802 is designed for high accuracy in the μm-range. Vibration damping is achieved by using granite compo-nents for the base plate as well as for the bridge carrying the z-axis. The substrate is placed on the x-y-table and is moved relative to the dispenser heads, while the z-axis which moves the dispenser heads up and down is stable. This design minimizes the moved masses and improves positioning accuracy considerably. It is possible to move and control up to 8 dispenser heads or pipettes in parallel. Dispensing can be done in start-stopӔ-mode or in-flight, i.e. while the head is moving. Aiming accuracy then differs 5 respective ѱ10μm each single axis. The Autodrop Professional Positioning System contains all of the electronic control elements for the positioning unit and the dispensers. >
