Overview

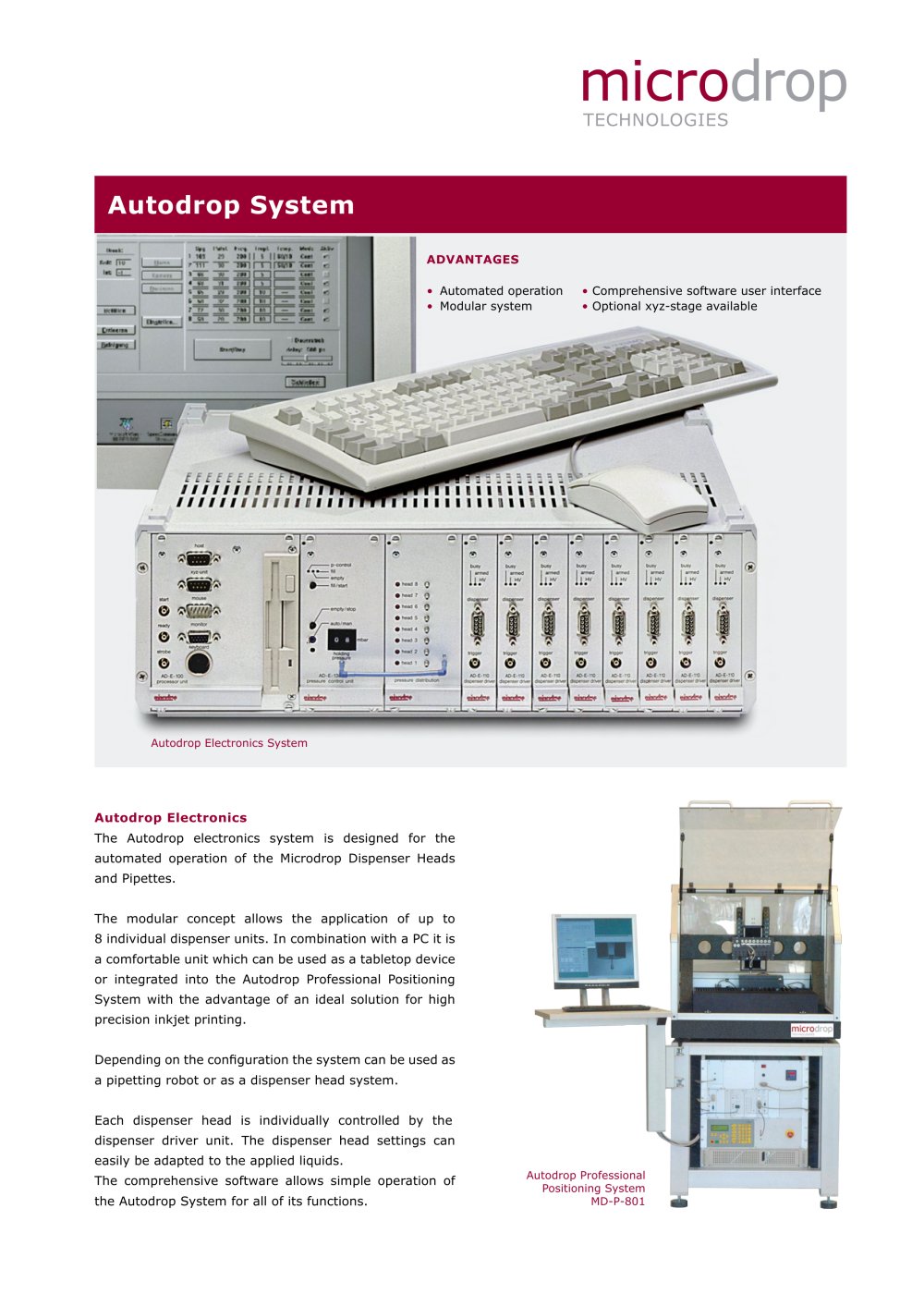

The Autodrop Electronics System is designed for the automated operation of Microdrop Dispenser Heads and Pipettes. It features a modular design that supports up to eight individual dispenser units, making it suitable for high precision inkjet printing. The system can function as a pipetting robot or a dispenser head system, depending on its configuration.

System Components

• Dispenser Driver Unit: Each dispenser head is controlled individually, allowing settings to be adapted to different liquids.
• Comprehensive Software: Facilitates simple operation of the system, offering a user-friendly interface.
• Optional XYZ-Stage: Available for enhanced positioning capabilities.

Software Features

• Graphical User Interface (GUI): Provides access to all settings and functions, guiding the operator through various options.
• Head Data Module: Allows independent setting and saving of parameters for up to eight dispensing heads.
• XYZ-Stage Module: Controls the positioning system, allowing entry of individual positions and setting of stage drive parameters.
• Dispensing Options: Offers patterns such as point, line, grid, and multigrid, with precise placement capabilities.
• Image Control Module: Displays images from CCD-cameras for drop observation and substrate inspection.
• Macros Module: Enables automated control through command line interpreter, allowing editing, storing, and executing command lines.
• Control Options Module: Combines data for filling, emptying, and cleaning dispenser heads, along with additional settings.

Advantages

• Automated operation
• Comprehensive software user interface
• Modular system
• Optional XYZ-stage available

Contact Information
Microdrop Technologies GmbH, Mühlenweg 143, 22844 Norderstedt, Germany. Phone: +49 (0)40 53 53 83-0, Fax: +49 (0)40 53 53 83-24, Email: [email protected], Website: www.microdrop.de
