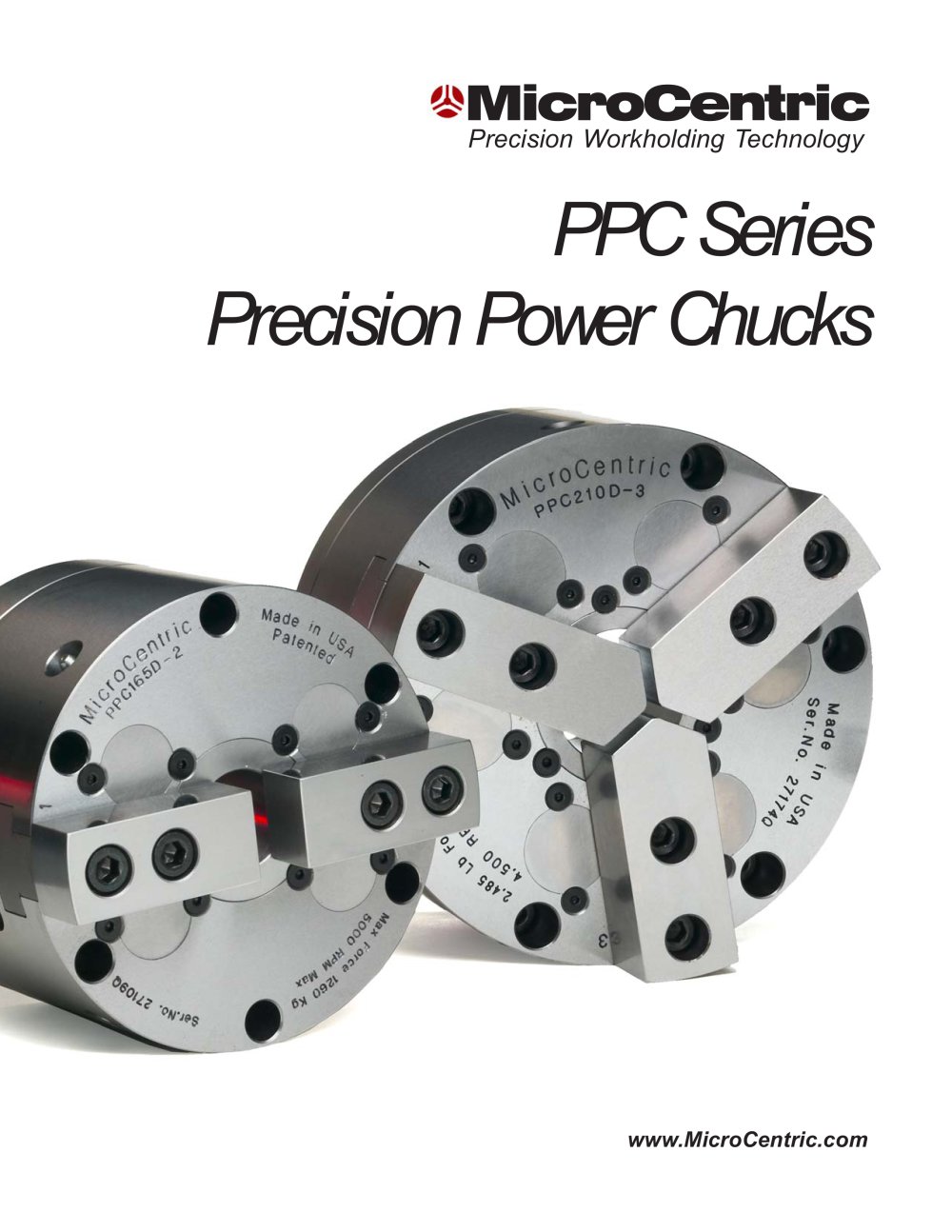

MicroCentric Precision Workholding Technology PPC Series Precision Power Chucks

MicroCentric The World’s Most Accurate Power Chuck Improve productivity and lower costs by enhancing workpiece quality . . . . . . Radial Runout Lateral Runout through accurate and repeatable workholding. Manufacturers that are able to maintain close concentricity across a workpiece's operation sequence benefit from lower scrap rates, reduced cycle times, and increased production capacity. By holding close tolerances and minimizing the amount of material left for finishing operations, you not only reduce your cost per part, but you end up with more parts produced at the end of each shift. The...

QC Precision Change Jaw Locating System Patented precision change jaw locating system reduces setup time by maintaining .0002” (0.005mm) runout after changing top jaws. MicroCentric’s QC system saves valuable set up time up by eliminating the remachining of top jaws or indicating in the chuck in order to maintain close workpiece concentricity. PPC chucks are qualified so jaws can be changed between chucks and maintain .0008” (0.02mm) TIR runout. Tapered QC Locating Buttons • .0002" (0.005mm ) TIR max runout when top jaws finished and replaced on same chuck • .0008" (.02mm) TIR max runout when...

Chuck Jaw Model Blank QC Top Jaws are made from A-2 tool steel. The tapered locating holes are precision jig bored for accurate location. QC jaws can be heat treated with minimal distortion to a hardness up to Rc 62. Special QC Top Jaws including blank pie-shaped jaws are quoted upon request. Turning Fixture Model QC jaw turning fixtures simulate the locating pattern of a QC chuck. They are used to rough machine Blank QC Top Jaws off-line to maximize a machine's production capacity. The clamping position of the jaw turning fixture is set in the middle of the chuck's stroke. Other positions are...

Grease Guns Model Quantity Manufacturer ALTEMP Q NB 50/08080 gram tubeKluber ALTEMP Q NB 50/600600 gram cartridge Kluber ALTEMP Q NB 50/750750 gram cartridge Kluber Kluber ALTEMP Q NB 50 is the recommended lubricant for PPC chucks. ALTEMP Q NB 50 is a white lubricating paste containing a mineral base oil, a barium complex soap and inorganic solid lubricants. This lubricant has been found to improve the sliding characteristics of moving chuck components and enabling constant clamping force. It prevents stick-slip and protects against fretting and tribo-corrosion in frictional or positive connections....
