Overview
MicroCentric's PMC Series Production Milling Chucks are designed for high precision and productivity in machining centers, milling machines, and grinders. These chucks are manually actuated and feature a low-profile design, making them suitable for integration with tombstones and pallets.

Design & Features

Concentric clamping system.
Low profile square body design.
Two-stage clamping for fast initial jaw stroke and high clamping force.
Available in sizes: 3.00” (80mm), 4.00” (100mm), 5.00” (125mm), and 6.00” (150mm).
Configurations: 3-jaw and 2-jaw models for both OD and ID clamping.

Accessories

Top Jaws: Available in various sizes and materials (AISI 1018).
Loading Rings: Specific to each chuck model.
Mounting Screw & Locating Bushing sets.
T Handle Wrench for operation.

Specifications

Models range from PMC-080 to PMC-150, with varying jaw numbers, stroke capacities, and clamping forces.
Maximum input torque and clamping force increase with chuck size.
Weight varies from 2.4 lb (1.1 kg) for smaller models to 12.7 lb (5.8 kg) for larger models.

Dimensions

Each model has specific dimensions for mounting and operation, including thread engagement and locating bushing specifications.

Contact Information
MicroCentric Corp, 25 So. Terminal Drive, Plainview, NY 11803, USA. Tel: 516-349-7220, Fax: 516-349-9354, Email: [email protected]

Catalog excerpts

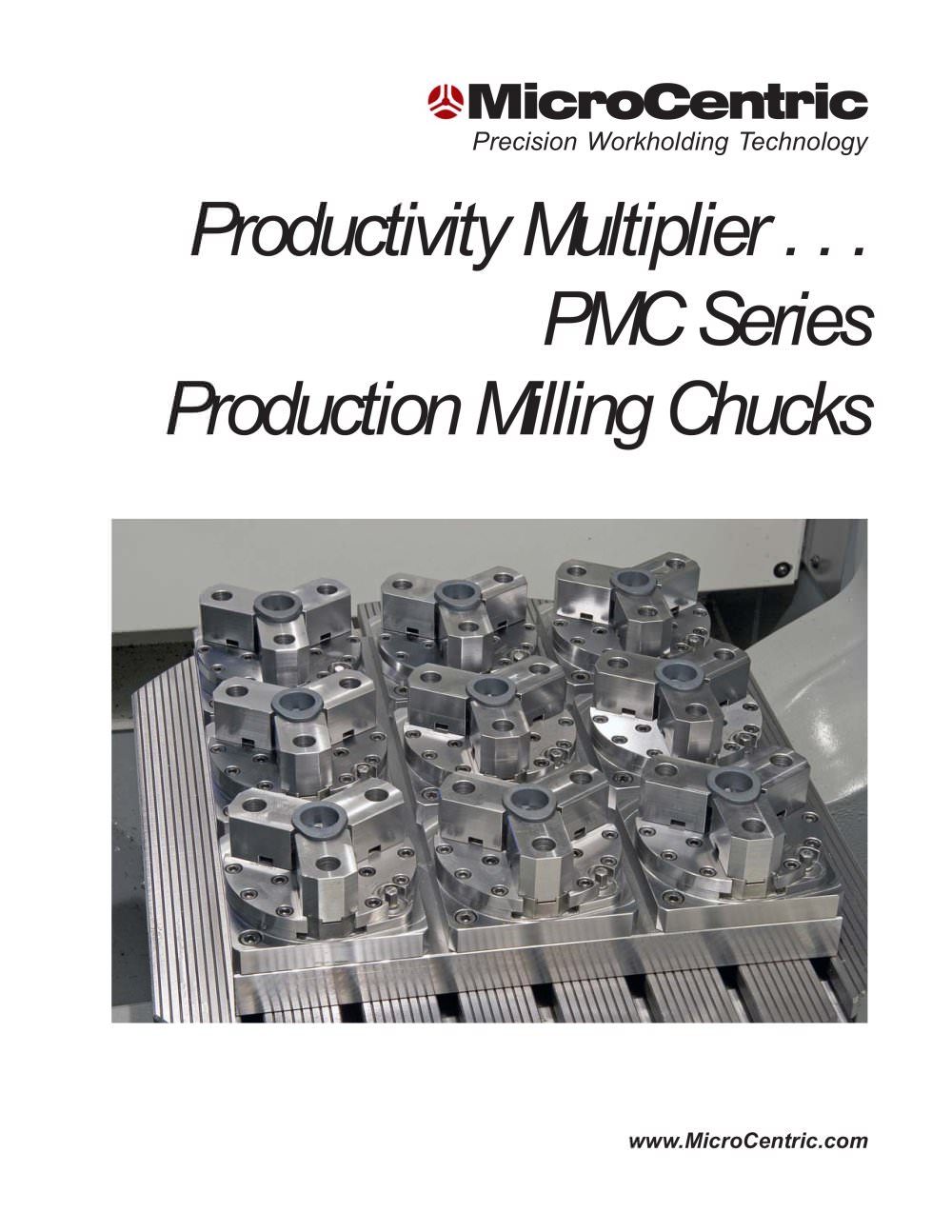

Precision Workholding Technology www.MicroCentric.com Productivity Multiplier . . . PMC Series Production Milling Chucks MicroCentric

Open the catalog to page 1

MicroCentric www.MicroCentric.com PMC Production Milling Chucks MicroCentric PMC chucks are a low profile manually actuated concentric clamping system for vertical and horizontal machining centers, milling machines, and grinders. PMC chucks integrate with tombstones and pallets to provide the ultimate in high productivity and high precision workholding. PMC chucks are clamped and unclamped on the top face enabling more chucks to be ganged together compared to side actuated models. Three Jaw Models: OD or ID Clamping Two Jaw Models: OD or ID Clamping PMC Design & Features • Concentric clamping...
