Microcentric
Multi Spindle Catalog

Multi Spindle Catalog

Product catalog summary

MicroCentric Quick Change Collet System
MicroCentric's Quick Change Collet System is engineered to enhance machine productivity by reducing setup time. Collets can be changed in under 15 seconds without tension adjustments, ensuring high clamping force and precision within .0005" TIR. The collets' one-piece vulcanized design minimizes chip and sludge buildup, improving machine cleanliness and performance.

Hainbuch Adjustable RS Pusher System
The Hainbuch Adjustable RS Pusher System allows for precise feed tension adjustments, ensuring uniform tension across spindles. Its six-segmented design provides consistent contact, reducing wear and extending pusher lifespan. RS collets are available with ceramic, plastic, or bronze coatings to protect finished bar stock from scratches.

Product Highlights
MicroCentric's tooling solutions focus on reducing setup time, maximizing run time, and lowering cost per part. The Quick Change Collets and RS Pushers enhance production capacity and flexibility, supporting efficient small lot runs. A 30-day return policy guarantees product performance satisfaction.

System Design and Features
The Quick Change Collet System includes a collet body that remains in the spindle and a removable collet. Collets are made from hardened, precision-finished segments vulcanized into a single unit, compatible with existing spindles. The RS Pusher System features an outer sleeve and RS collet, with tension adjustments facilitated by a specialized wrench.

Pricing and Models
The document details pricing and specifications for various Quick Change Collets and Adjustable RS Pushers compatible with Acme-Gridley and New Britain machines. Pricing varies by model and purchase quantity, with options for manual and hydraulic changing fixtures.

Overview: This technical catalog from MicroCentric outlines various collet models and accessories for quick change systems, including specifications, pricing, and purchasing contact information.

Sections:

Collet Models and Specifications: Lists models such as MB25N, MA25N, MB32A, MA32A, MB42C, MA42C, MB57N, MA57N, MB67A, and MA67A, detailing diameter capabilities and pricing for single and bulk purchases.
Pricing Structure: Provides prices for individual and bulk purchases (2-5 pieces and 6+ pieces), with discounts for larger orders.
Accessories: Includes accessories like adjusting wrenches, hydraulic pumps, and changing fixtures, with models such as WM25, WH25, EN162.
Contact Information: Lists contact details for MicroCentric Corporation in the USA and Germany, including phone numbers, fax numbers, and email addresses.

Key Information:

Collet Types: Specifies bore types for collets, including serrated, smooth, and hexagonal bores.
Hydraulic and Manual Fixtures: Offers options for hydraulic and manual changing fixtures, providing setup flexibility.
Adjustable Pushers: Lists various adjustable pusher models, detailing specifications for outer sleeves and inner collets.

Catalog excerpts

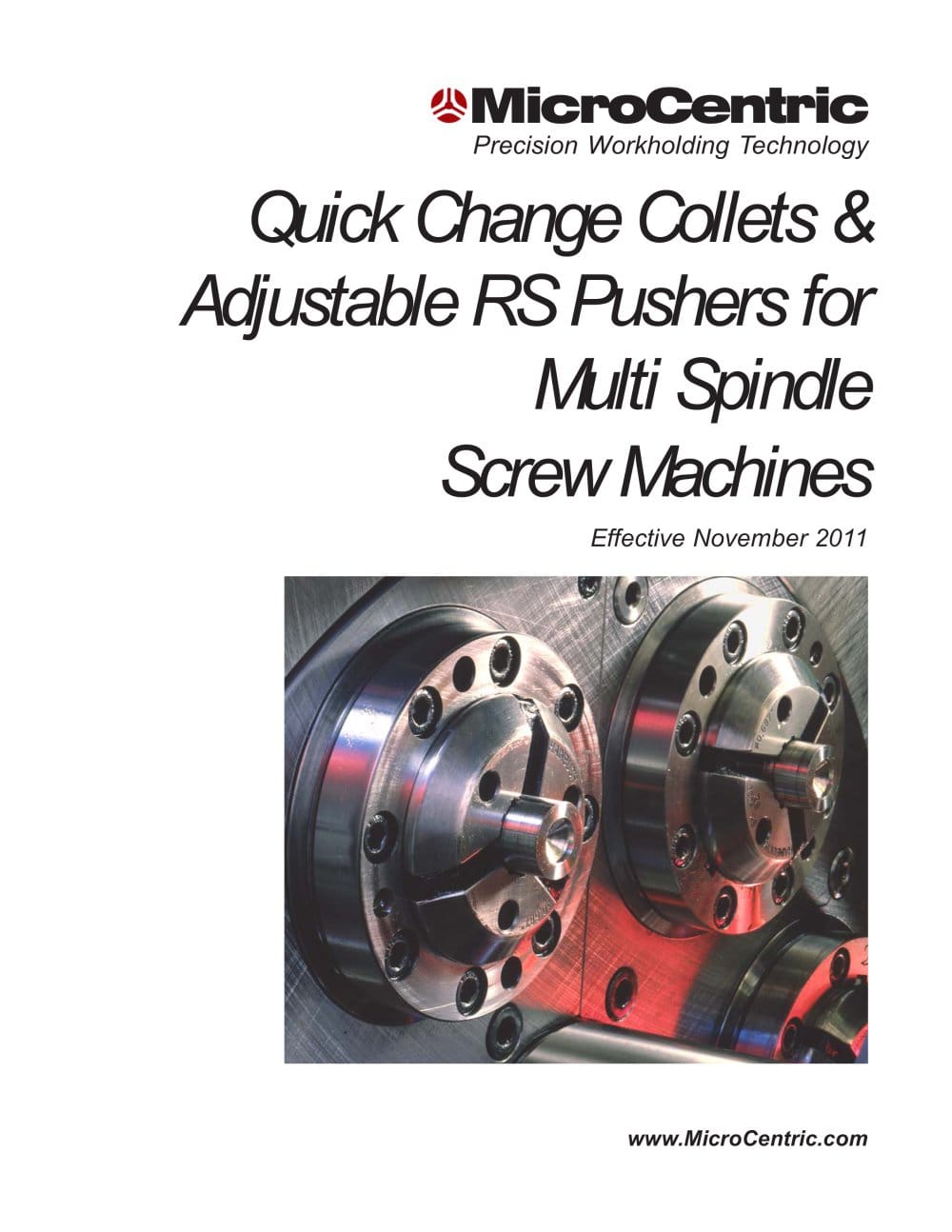

MicroCentric Precision Workholding Technology Quick Change Collets & Adjustable RS Pushers for Multi Spindle Screw Machines Effective November 2011

Open the catalog to page 1

MicroCentric Table of Contents MicroCentric Quick Change Collet System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hainbuch Adjustable RS Pusher System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Quick Change Collets & RS Adjustable Pushers for: Acme-Gridley 1" RA6, RAN6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Acme-Gridley 1-1/4" RA6, RB6, RB8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

Open the catalog to page 2

^ MicroCentric Reduce Setup Time, Maximize Run Time For Increased Output, And Lower Cost Per Part MicroCentric's Quick Change Tooling for multi spindle screw machines lets you dramatically reduce your setup time, and increase the number of hours your machine is producing parts. MicroCentric quick change collets and RS pushers will not only lower your cost per part, but also increase your production capacity, and give you the flexibility to run small lots efficiently and profitably. Performance Guarantee The performance of all MicroCentric Multi Spindle Tooling Products is guaranteed. Install...

Open the catalog to page 3

MicroCentric MicroCentric Quick Change Collets System Design MicroCentric Quick Change Collet The MicroCentric system consists of a collet body, that threads onto the collet tube and remains in the spindle during change over, and a removable collet. The MicroCentric Collet is comprised of hardened and precision finished segments that are vulcanized into a single unit. MicroCentric Quick Change Collets replace conventional solid and master collets without modifications to the spindle or collet tube. Collet Body Collet Change In 15 Seconds Without Tension Adjustment Collet Changing Fixture MicroCentric...

Open the catalog to page 4

MicroCentric Maximum .0005" TIR Runout MicroCentric collets are manufactured to very close size tolerances and concentricities. The parallel clamping design, together with MicroCentric's high quality standards produces a collet with unmatched accuracy. Collet Type One-Piece Vulcanized Design for Easy Handling, Reduced Chip & Sludge Buildup Vulcanized rubber is recessed below face of collet to prevent chip abrasion The advanced vulcanized design of MicroCentric collets produces a seal which prevents chips and sludge from accumulating in the machine spindles. Customers have confirmed their spindles...

Open the catalog to page 5

MicroCentric Hainbuch Adjustable RS Pushers System Design Adjusting Wrench Hainbuch RS Adjustable Pushers consist of an Outer Sleeve, that threads onto the feed tube, and an RS Collet. The RS Collet is changed and adjusted with a specially designed wrench. The Adjusting Wrench is engaged onto the collet to thread it into or out of the Outer Sleeve. Feed tension is determined by how far the RS Collet is threaded into the Outer Sleeve. Inner Collet Outer Sleeve Accurate Uniform Tension Setting & Adjustment Feed tension is very difficult to set and adjust with conventional pushers. Improper feed...

Open the catalog to page 6

MA25A/RSR Collet - Serrated Bore .312" 1.000" $162.00 $142.56 $129.60 MA25A/RSM Collet - Smooth Bore .187" 1.000" $162.00 $142.56 $129.60 WM25 Manual Changing Fixture $548.00 WH25 Hydraulic Changing Fixture $650.00 9278E/RS25 Outer Sleeve CALL RS25/RD Inner Collet - Round .187" 1.000" CALL RS25/HEX Inner Collet - Hexagonal .187" .875" CALL S25 Adjusting Wrench CALL

Open the catalog to page 7

Model / Description Min. Dia. Max. Dia. Price (1pcs) Price (2-5 pcs) Price (6+ pcs) MA32A/RSR Collet - Serrated Bore .375" 1.250" $165.00 $145.20 $132.00 MA32A/RSM Collet - Smooth Bore .187" 1.250" $165.00 $145.20 $132.00 WM32 Manual Changing Fixture $548.00 WH32 Hydraulic Changing Fixture $650.00 9285E/RS30 Outer Sleeve CALL RS30/RD Inner Collet - Round .250" 1.187" CALL RS30/HEX Inner Collet - Hexagonal .250" 1.000" CALL S30 Adjusting Wrench CALL

Open the catalog to page 8

Quick Change Collets Model / Description Min. Dia. Max. Dia. Price (1pcs) Price (2-5 pcs) Price (6+ pcs) MA42A/RSR Collet - Serrated Bore MA42A/RSM Collet - Smooth Bore WM42 Manual Changing Fixture WH42 Hydraulic Changing Fixture Adjustable Pushers Model / Description Price CALL RS40/RD Inner Collet - Round RS40/HEX Inner Collet - Hexagonal

Open the catalog to page 9

Model / Description Min. Dia. Max. Dia. Price (1pcs) Price (2-5 pcs) Price (6+ pcs) MA50A/RSR Collet - Serrated Bore .500" 2.000" $356.00 $313.28 $284.80 MA50A/RSM Collet - Smooth Bore .500" 2.000" $356.00 $313.28 $284.80 WH50 Hydraulic Changing Fixture $792.00 9404E/RS50 Outer Sleeve CALL RS50/RD Inner Collet - Round .500" 1.937" CALL RS50/HEX Inner Collet - Hexagonal .500" 1.687" CALL S50 Adjusting Wrench CALL

Open the catalog to page 10

Quick Change Collets Model / Description Min. Dia. Max. Dia. Price (1pcs) Price (2-5 pcs) Price (6+ pcs) MA42A/RSR Collet - Serrated Bore MA42A/RSM Collet - Smooth Bore WM42 Manual Changing Fixture WH42 Hydraulic Changing Fixture Collet Seat Model / Description Price (1pcs) Price (2-5 pcs) Price (6+ pcs) Price (1pcs) Price (2-5 pcs) Price (6+ pcs) MS42A/HSC Collet Seat (with collet pin)

Open the catalog to page 11

Model / Description Min. Dia. Max. Dia. Price (1pcs) Price (2-5 pcs) Price (6+ pcs) MA67A/RSR Collet - Serrated Bore .500" 2.625" $310.00 $272.80 $248.00 MA67A/RSM Collet - Smooth Bore .500" 2.625" $310.00 $272.80 $248.00 WH67 Hydraulic Changing Fixture $698.00 9446E/RS67 Outer Sleeve CALL RS67/RD Inner Collet - Round .500" 2.500" CALL RS67/HEX Inner Collet - Hexagonal .500" 2.125" CALL S67 Adjusting Wrench CALL

Open the catalog to page 12

Model / Description Min. Dia. Max. Dia. Price (1pcs) Price (2-5 pcs) Price (6+ pcs) MA90A/RSR Collet - Serrated Bore 1.000" 3.500" $772.00 $679.36 $617.60 MA90A/RSM Collet - Smooth Bore 1.000" 3.500" $772.00 $679.36 $617.60 WH90 Hydraulic Changing Fixture $1,210.00 9479E/RS80 Outer Sleeve CALL RS80/RD Inner Collet - Round .500" 3.125" CALL RS80/HEX Inner Collet - Hexagonal .500" 2.687" CALL S80 Adjusting Wrench CALL

Open the catalog to page 13
