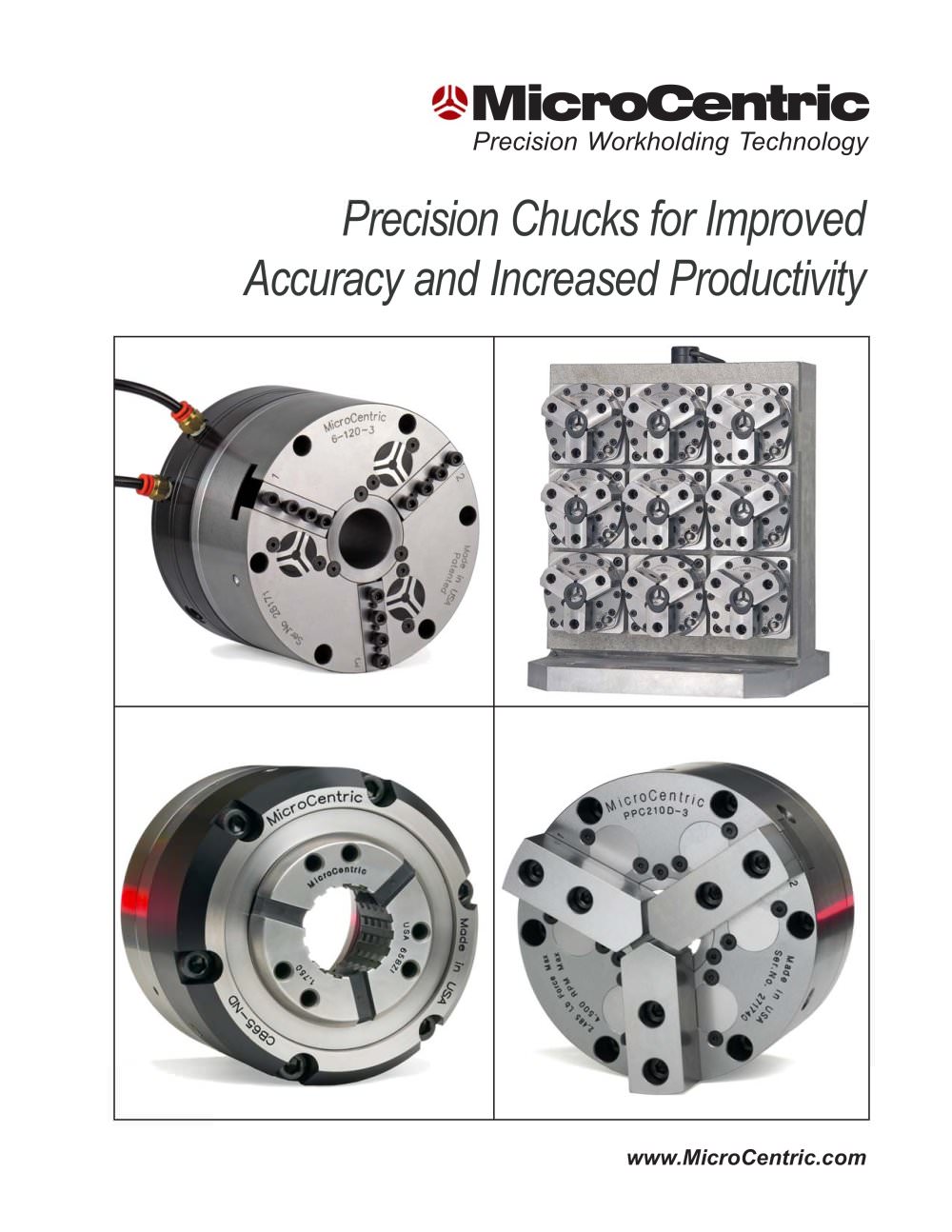

Precision Workholding Technology www.MicroCentric.com Precision Chucks for Improved Accuracy and Increased Productivity MicroCentric

www.MicroCentric.com MicroCentric Precision Air Chucks (Self Contained Design) MicroCentric Precision Air Chucks feature a patented open center design. Repeating accuracy to .000050” (0.001mm) TIR. Self-contained design with built-in cylinder. MicroCentric Air Chucks are double acting for both OD and ID clamping. Adjustable air pressure allows fragile parts to be clamped with minimal distortion. Available with QC jaw locating system for increased productivity. Air Chuck Models Standard Rotating Actuated by an air tube assembly with rotary union through machine spindle. Sizes from 3” to 20” dia....

MicroCentric 1-800-573-1139 Tapered QC Locating Buttons QC Precision Change Jaw Locating System Patented precision change jaw locating system reduces setup time by maintaining .0002” (0.005mm) runout after changing top jaws. MicroCentric’s QC system saves valuable setup time by eliminating the remachining of top jaws or indicating in the chuck in order to maintain close workpiece concentricity. PPC chucks are qualified so jaws can be changed between chucks and maintain .0008” (0.02mm) TIR runout. Accuracy to .0001” (0.002mm) TIR QC System Accuracies • .0002" (0.005mm) TIR max runout when top...

www.MicroCentric.com MicroCentric Quick Change Collet Chucks MicroCentric Quick Change Collet Chucks feature a segmented vulcanized collet. Quick Change Collets are changed in seconds by collapsing the collet with a changing fixture and removing it from the chuck. Collets Available From Stock • MicroCentric stocks an extensive range of inch and metric collets in round and hex sizes • Quick Ship Collets, delivered within 5 working days, are available for special bore sizes and configurations Vulcanized Collet • One piece vulcanized design for easy handling and reduced chip build up in ID of chuck...

MicroCentric 1-800-573-1139 S Pad Collet Chucks MicroCentric S Pad Collet Chucks feature a segmented vulcanized master collet. This low profile master collet results in a shorter OAL compared to conventional S Pad chucks. A shorter chuck length provides greater rigidity and maximizes the machine’s Z axis travel. MicroCentric S Pad Collet Chucks also accept MicroCentric Quick Change Collets for increased flexibility and accuracy. Master Collet Models Collet Pad Master Collet Capacity Range S-16 SK65BZI/S16 1.625” +/- .020” 41mm +/- 0.5mm S-20 SK65BZI/S20 2.000” +/- .020” 20mm +/- 0.5mm S-22 SK65BZI/S22...

www.MicroCentric.com MicroCentric Quick Change & S Pad Collet Chuck Models ND - Dead Length The collet is coupled in the chuck body and remains fixed as the tapered sleeve moves forward when the chuck is actuated. NS - Sub Spindle Low profile dead length design for maximum tool clearance on sub spindle. Internal mounting for part stops and ejectors. NB - Pull Back The collet is coupled in the draw tube adapter and is drawn into the tapered seat as the chuck is actuated. NDR - Pull to Close DL Patented dead length design for use with servo bar loaders. The NDR chuck is actuated to clamp as the...

MicroCentric 1-800-573-1139 Dead Length Collet Chucks (5C / 16C / 3J) MicroCentric Conventional Collet Chucks are available in Dead Length and Pull Back models for 5C, 16C, & 3J collets. All components are made from hardened and precision ground alloy steel for accuracy and long term performance. Modular design permits chucks to be adapted to any machine spindle configuration. Low profile nose design provides maximum tool clearance. Wide Opening Collet Chucks (5W / 16W) 5W and 16W wide opening collets to grip over the shoulder of headed parts. Exclusively from MicroCentric, 5W and 16W collets...

www.MicroCentric.com MicroCentric Air Cylinders & 5C Air Collet Closers MicroCentric LDZ Air Cylinders feature a high performance precision rotary air bearing assembly. The air bearing incorporates a hardened steel journal and a housing supported by high speed ball bearings. This advanced design is combined with MicroCentric's precision manufacturing capability to produce a line of air cylinders of unmatched performance and reliability. Air cylinders offer fine adjustment of draw tube force to prevent distortion of workpieces during clamping as compared to hydraulic actuators. LDZ Air Cylinders...

MicroCentric 1-800-573-1139 High Precision Diaphragm Chucks MicroCentric MBS Chucks are ideal for production turning, grinding, and milling applications, as well as clamping delicate workpieces with minimum distortion. MBS chucks require no maintenance and are especially suited to abrasive and highly contaminated environments since there are no exposed moving parts. MBS chucks are available in self-contained and draw tube actuated models. MBS Chuck Features • Repeating Accuracy to .0001" (0.002mm) TIR • Low maintenance, no lubrication required, and no exposed moving parts to wear out or become...

www.MicroCentric.com MicroCentric New! PMC Production Milling Chucks MicroCentric PMC chucks are a low profile manually actuated concentric clamping system for vertical and horizontal machining centers, milling machines, and grinders. PMC chucks integrate with tombstones and pallets to provide the ultimate in high productivity and high precision workholding. PMC chucks are clamped and unclamped on the top face enabling more chucks to be ganged together compared to side actuated models. Three Jaw Models: OD or ID Clamping PMC Design & Features • Concentric clamping • Low profile square body design...

MicroCentric 1-800-573-1139 Special Turnkey Workholding Systems In addition to offering a wide range of standard workholding products, MicroCentric also specializes in designing and building custom engineered workholding systems for specific workpiece and machine applications. Our technical salesmen and engineers work with you to design special top jaws, special configuration collets, part stops, ejectors, as well as other custom tooling. We can also modify standard chuck models or design completely special chucks and workholding fixtures to meet your specific application requirements. The Process...
