Collet Chuck Brochure

Product catalog summary

Overview
MicroCentric offers high-performance collet chucks designed for precision workholding solutions. These chucks are engineered for quick collet changes, high accuracy, and efficient clamping.

Quick Change Collet Chucks
- Collets can be changed in 15 seconds with an accuracy of 0.0004” (0.01mm).
- Features a parallel clamping design and a one-piece vulcanized design for easy handling and reduced chip buildup.
- The rubber compound used is resistant to cutting fluids, ensuring durability.
- A wide range of inch and metric collets are available, with quick shipping options for special sizes.

Collet Models
- Various models are available with different configurations and capacity ranges, such as SK42BZI, SK65BZI, and SK100BZI, each offering specific segment numbers and size capacities.

S Pad Collet Chucks
- These include vulcanized master collets with a parallel clamping design.
- They offer a shorter overall length for greater rigidity and full use of the Z-axis stroke.
- The vulcanized design ensures resistance to cutting fluids and a guaranteed bond between rubber and metal.

Dead Length Design
- ND Series: Keeps the collet in a fixed Z-axis position during clamping, suitable for fast conversion to chucking operations.
- NDR Series: Patented design for use with servo stop bar loaders, maintaining accurate feed-out lengths.
- NS Series: Low profile design for sub spindles, featuring mounting for stop plates or part ejectors.

Modular Design
- All components are made from hardened and precision-ground alloy steel for accuracy and performance.
- The modular design allows adaptation to various machine spindle and draw tube configurations.
- Typical delivery time for chucks is 3 to 5 working days.

For more detailed specifications and model information, contact MicroCentric or visit their website.

Catalog excerpts

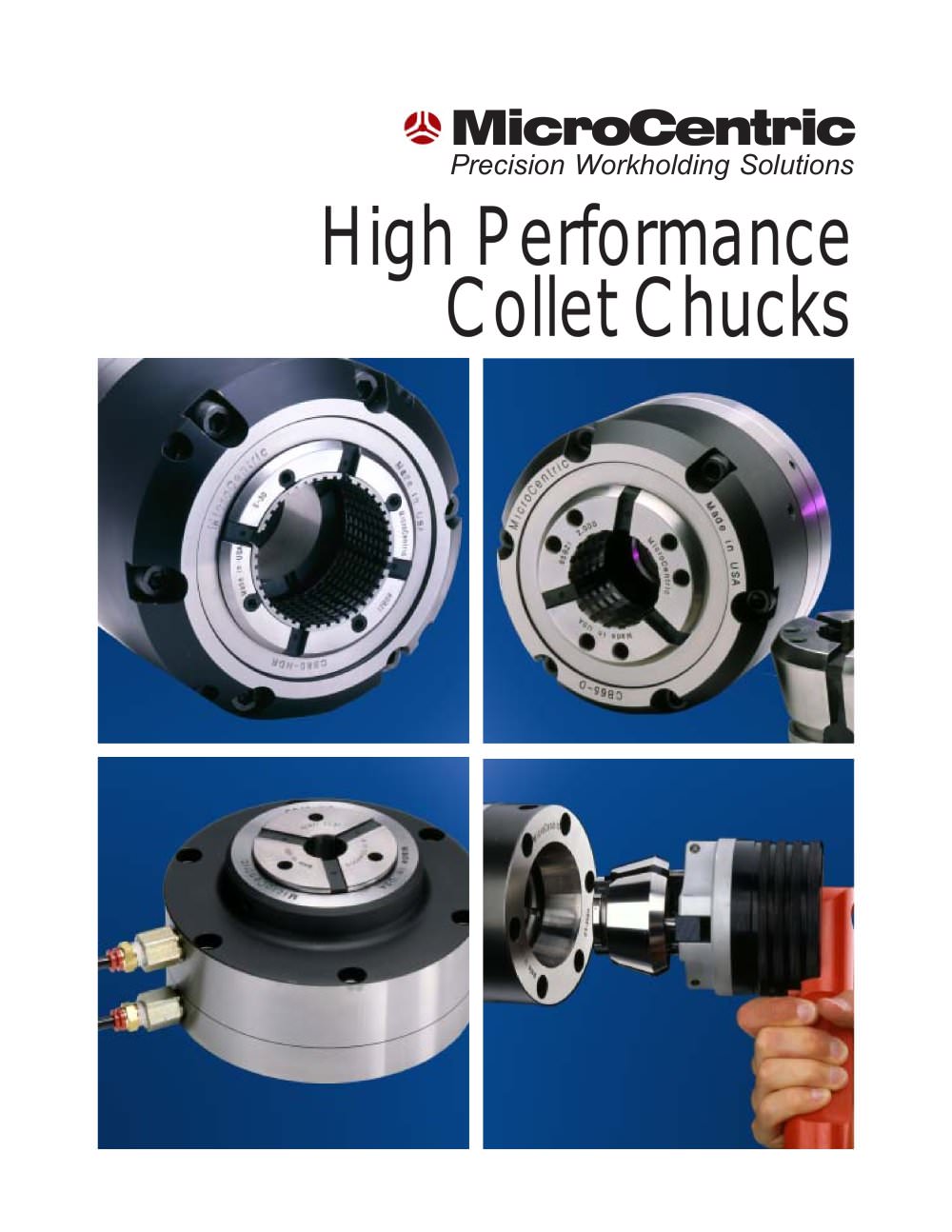

High Performance MicroCentric Collet Chucks Precision Workholding Solutions

Open the catalog to page 1

www.MicroCentric.com MicroCentric Quick Change Collet Chucks • Change Collets in 15 Seconds • .0004” (0.01mm) Accuracy • Parallel Clamping Design Vulcanized Design • One-piece vulcanized design for easy handling & reduced chip buildup inside chuck. • Specially formulated rubber compound is resistant to cutting fluids. The bond between rubber and metal is guaranteed for the life of the collet. Collets From Stock • MicroCentric stocks an extensive range of inch and metric collets, in round and hex configurations. • Quick ship collets, that are shipped within 5 working days, are offered for special...

Open the catalog to page 2

MicroCentric 1-800-573-1139 S Pad Collet Chucks Master Collet Models Collet Pad Master Collet # Segments Capacity Range S-16 SK65BZI/S16 3 1.625” +/- .020” 41mm +/- 0.5mm S-20 SK65BZI/S20 3 2.000” +/- .020” 20mm +/- 0.5mm S-22 SK65BZI/S22 3 2.250” +/- .020” 57mm +/- 0.5mm S-26 SK80BZI/S26 4 2.625” +/- .020” 65mm +/- 0.5mm S-30 SK80BZI/S30 4 3.000” +/- .020” 76mm +/- 0.5mm • Vulcanized Master Collet • Parallel Clamping Design • Shorter OAL compared to conventional master collet chucks for greater rigidity & full use of Z axis stroke Vulcanized Master • Not only is MicroCentric’s Master Collet...

Open the catalog to page 3

Made In USA ND Series - Dead Length Design NDR Series - Pull to Close Dead Length Design The NB series is a basic pull back design. The collet is coupled directly to the draw tube connector. As the draw tube is actuated, the collet is drawn into the tapered seat of the chuck body, efficiently translating draw tube force into maximum clamping force. Collet Chuck Models The collet is coupled directly to the chuck body and remains fixed when the tapered seat moves forward as the chuck is actuated. The ND design keeps the collet in a fixed Z axis position during clamping and imparts no pull back...

Open the catalog to page 4
