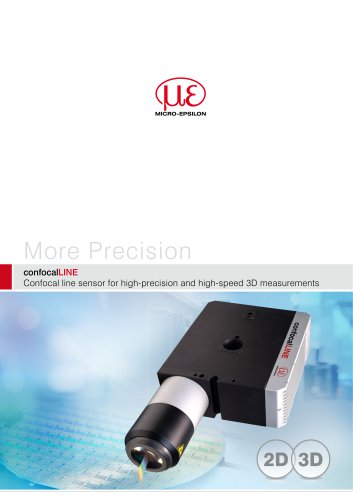

More Precision confocalLINE Confocal line sensor for high-precision and high-speed 3D measurements

Confocal line sensor for high-precision and high-speed 3D measurements confocalLINE CLI8500 Highest precision in confocal line measurement confocalLINE confocal chromatic measurement technology with scanning for the first time. With up to 2,624 measurement points per profile, the CLI8500 captures the finest 2D and 3D structures, even on reflective, transparent, and challenging surfaces. The integrated SMART analysis also enables complete measurement tasks to be performed directly within the sensor – from the semiconductor industry to electronics and battery production to medical technology. High...

High performance light source More than 10 million Innovative technology for high-precision measurements points per measurement Deflection mirror The confocalLINE sensors use the confocal chromatic measuring principle, in which white light is split into its spectral colors by special optics and projected onto the measuring object as a line. Each wavelength of the spectrum corresponds to a defined distance. From the reflected light, the sensor determines the distance to the surface for each measuring point. The 2,624 measuring points per line produce a high-resolution height profile. By combining...

Advantages & outstanding features confocalLINE CLI8500 Ultra-fast and reliable on all surfaces The confocalLINE CLI8500 impresses with its exceptionally high signal stability on a wide variety of surfaces and delivers excellent measurement speed, with up to 10,000 profiles per second. The sensor generates reliable and reproducible measurement results with matte, reflective, and transparent materials – even objects with varying surface properties are reliably detected. This enables stable measurement values and a high level of process reliability in industrial production monitoring. The smallest...

Large measuring range with maximum point density The confocal chromatic line scanners acquire profiles with line lengths of 7 mm along the X-axis. With 2,624 measuring points 14.7 mm per profile, they generate high-resolution 2D profile data and precise 3D point clouds – reliably and largely independent of the surface properties. Line-based acquisition enables complete scans to be generated significantly faster than with conventional point sensors. Maximum precision down to the finest detail 2.1 mm With a lateral resolution of 2.7 µm and a Z-axis resolution of 200 nm, CLI8500 detects the finest...

Application examples confocalLINE Precise wafer topography measurement Measuring wafer topographies requires the detection of the finest height differences. The confocalLINE CLI8500 generates a detailed height profile along the measurement line, which can be used to evaluate flatness, waviness, steps, edges, and local defects. The non-contact measurement prevents mechanical stress on the sensitive wafer surface. Measurement of BGA radius, height and shape Precise geometric inspection during display assembly For BGAs, the individual solder balls are inspected for shape, height, During the assembly...

Geometric inspection of medical implants The CLI8500 captures the surface contours of stents at high resolution, enabling reliable inspection of dimensional accuracy, strut widths, height differences, and potential deformations. At the same time, non-contact measurement prevents mechanical stress on the sensitive structures. PIN measurement of micro connectors Geometric inspection of indexable inserts For micro-connectors, the height, position, flatness, and any Indexable inserts are replaceable cutting inserts used in machining possible deformation of the pins must be reliably inspected. To...

[1] Value after single averaging over the measuring field (2,688 points) [2] The maximum measurement angle of the sensor at which it produces a usable signal on diffusely reflective surfaces—accuracy decreases as the limits are reached. For surfaces with direct reflection, this value may decrease to as low as ±35°.

Easy installation A centering mandrel with an adapter plate is available to ensure simple and repeatable assembly. This makes it easier to align the sensor precisely, ensuring a quick and reliable installation. In addition, the centering mandrel allows the sensor to be mounted at a defined angle. This is particularly advantageous for challenging measurement tasks or special target geometries, as an angled sensor orientation can improve signal stabilit

Power supply cable suitable for drag chains and robots, digital I/Os, sync, and Industrial Ethernet Cable length in meters: 2 / 5 / 10 / 15 / 25 / 35 Ethernet connection cable SCR8500X-X Cable for parameter setting, measurement value and profile data transmission; suitable for drag chains and robots Cable length in meters: 2 / 5 / 10 / 15 / 25 / 35 Power supply cable ECR8500-5 Cable suitable for drag chains and robots 3-pin M8 socket to open ends Cable length in meters: 5

SMART Fast, intuitive path to a high-precision 3D solution 3D DATA Highest precision with maximum integration flexibility Direct output of measurement values = Evaluation in the sensor Integration into image processing = external evaluation Integration into customer software = external evaluation - Standardized interfaces: GenICam / GigE Vision - Direct connection to compatible vision software - Transfer measurement values directly to the PLC - Sensor control via standard protocols - OK/NOK result evaluation and output via digital outputs or fieldbus - Integration examples for various programming...
