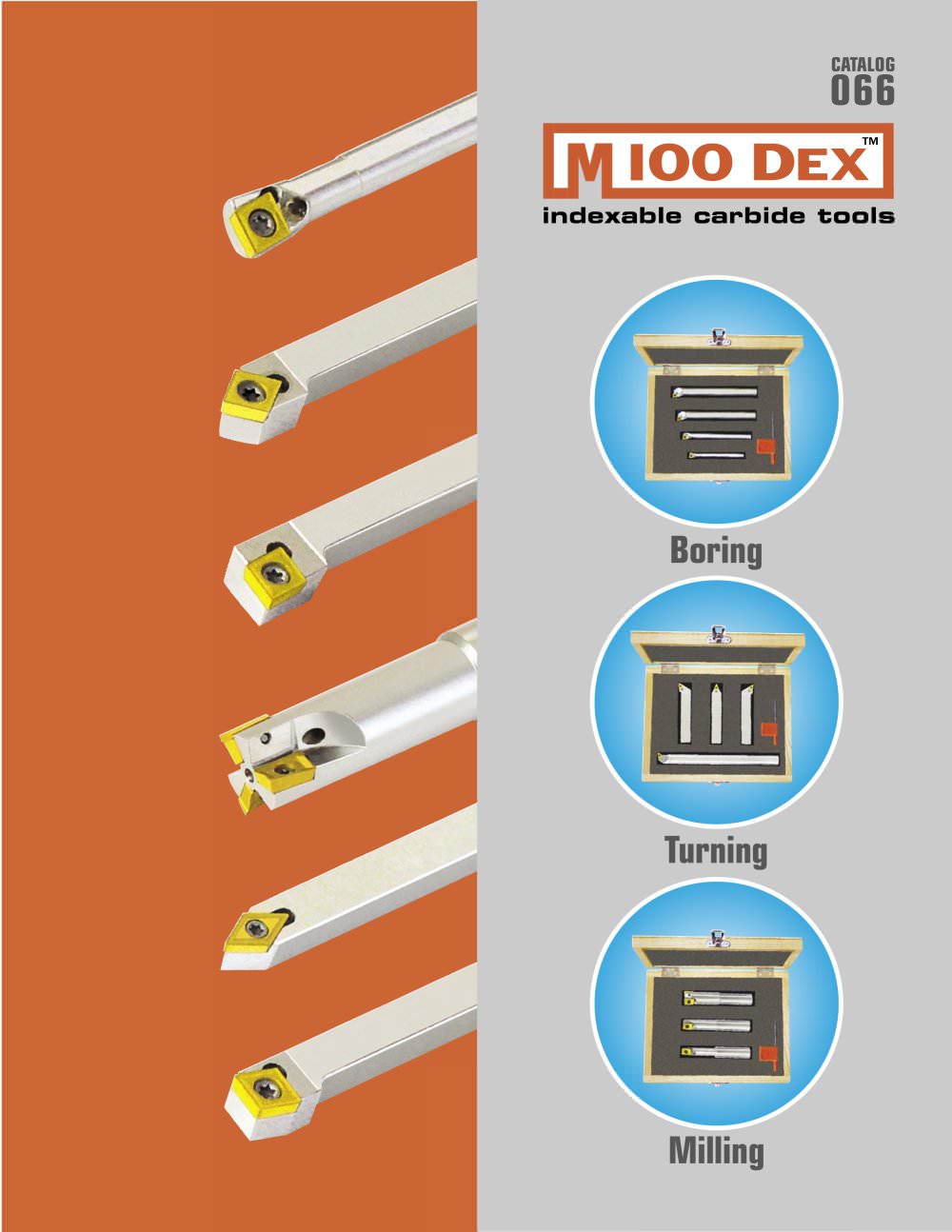

M100Dex Indexable Carbide Tools Catalog
12Pages

indexable carbide tools

indexable carbide tools Only 4 types of ANSI standard carbide inserts required to cover this entire range of boring, chamfering, facing, turning applications. CARBIDE INSERTS ANSI STANDARD multi-layer coatings

INDEXABLE INSERT HOLDERS 90° Turning & Facing Tools Each holder includes high precision M2.5 x T-8 Torx Screw and Torx Key Utilizes CCMT 21.51 Insert, not included, see page 2. 60° Turning & Facing Tools Each holder includes high precision Utilizes DCMT 21.51 Insert, not included, see page 2. positive chip control

INDEXABLE INSERT HOLDERS IMIOO DEXI Utilizing 100° Unused RH Cutting Corner of Insert Each holder includes high precision M2.5 x T-8 Torx Screw and Torx Key Utilizes CCMT 21.51 Insert, not included, see page 2. Utilizing 100° Unused LH Cutting Corner of Insert Each holder includes high precision M2.5 x T-8 Torx Screw and Torx Key Utilizes CCMT 21.51 Insert, not included, see page 2. IOO DEX | 'n touch with the future

INDEXABLE INSERT HOLDERS IMIOO PEXI Turning & Chamfering Tools Each holder includes high precision M2.5 x T-8 Torx Screw and Torx Key Utilizes CCMT 21.51 Insert, not included, see page 2. Chamfering Tools Each holder includes high precision M2.5 x T-8 Torx Screw and Torx Key Utilizes CCMT 21.51 Insert, not included, see page 2. treated tool holders

INDEXABLE INSERT HOLDERS IMIOO DEXI Each holder includes high precision izes DCMT 21.51 Insert, not included, see page 2. Coolant-Thru Boring Bars 90° Boring & Facing / 95° Approach Each holder includes high precision M2.5 x T-8 Torx Screw and Torx Key Solid boring bars also from stock Utilizes CCMT 21.51 Insert, not included, see page 2. touch with the future

INDEXABLE INSERT HOLDERS Coolant-Thru Boring Bars Profile Boring & Facing Each holder includes high precision M2.5 x T-8 Torx Screw and Torx Key Solid boring bars also from stock Utilizes DCMT 21.51 Insert, not included, see page 2. Coolant-Thru Boring Bars For Blind Bores Utilizing 90° Insert Face Each holder includes high precision M2.5 x T-8 Torx Screw and Torx Key Solid boring bars also from stock Utilizes TCMT 21.51 Insert, not included, see page 2. high performance

INDEXABLE INSERT HOLDER SETS | M 100 DEx" 3 & 4 Piece Coolant-Thru Boring Bar Sets Furnished in fitted wooden case 4 Piece Multi-Purpose Sets Furnished in fitted wooden case Utilizes DCMT 21.51 Insert in touch with the future

INDEXABLE INSERT HOLDER SETS | M 100 DExl 7 Piece Multi-Purpose Sets Furnished in fitted wooden case Utilizes CCMT 21.51 Insert optimized productivity

INDEXABLE INSERT HOLDERS Utilizes APKT 1003 PDR Insert, not included, see page 2. Coolant-Thru Milling Utilizes APKT 1003 PDR Insert, not included, see page 2. touch with the future

INDEXABLE INSERT HOLDER SETS | M 100 DEx" 3 Piece Coolant-Thru Milling Set Furnished in fitted wooden case Complete 180 page catalog ^gSZJSSSZ 1410 E. Pine Avenue, Meridian, ID 86342

CATALOG 066 Set Convenience Represented by: MICRO 1OO TOOL CORP. 1410 E. Pine Avenue, Meridian, ID 86342 TEL 208/888-7310 • 800/421-8065 FAX 208/888-2106 www.micro100.com • info@micro100.com PRINTED IN USA © 2006 MICRO 100 TOOL CORP., MERIDIAN, ID
