Technical databook - Mechanical handler
46Pages

{{requestButtons}}

Catalog excerpts

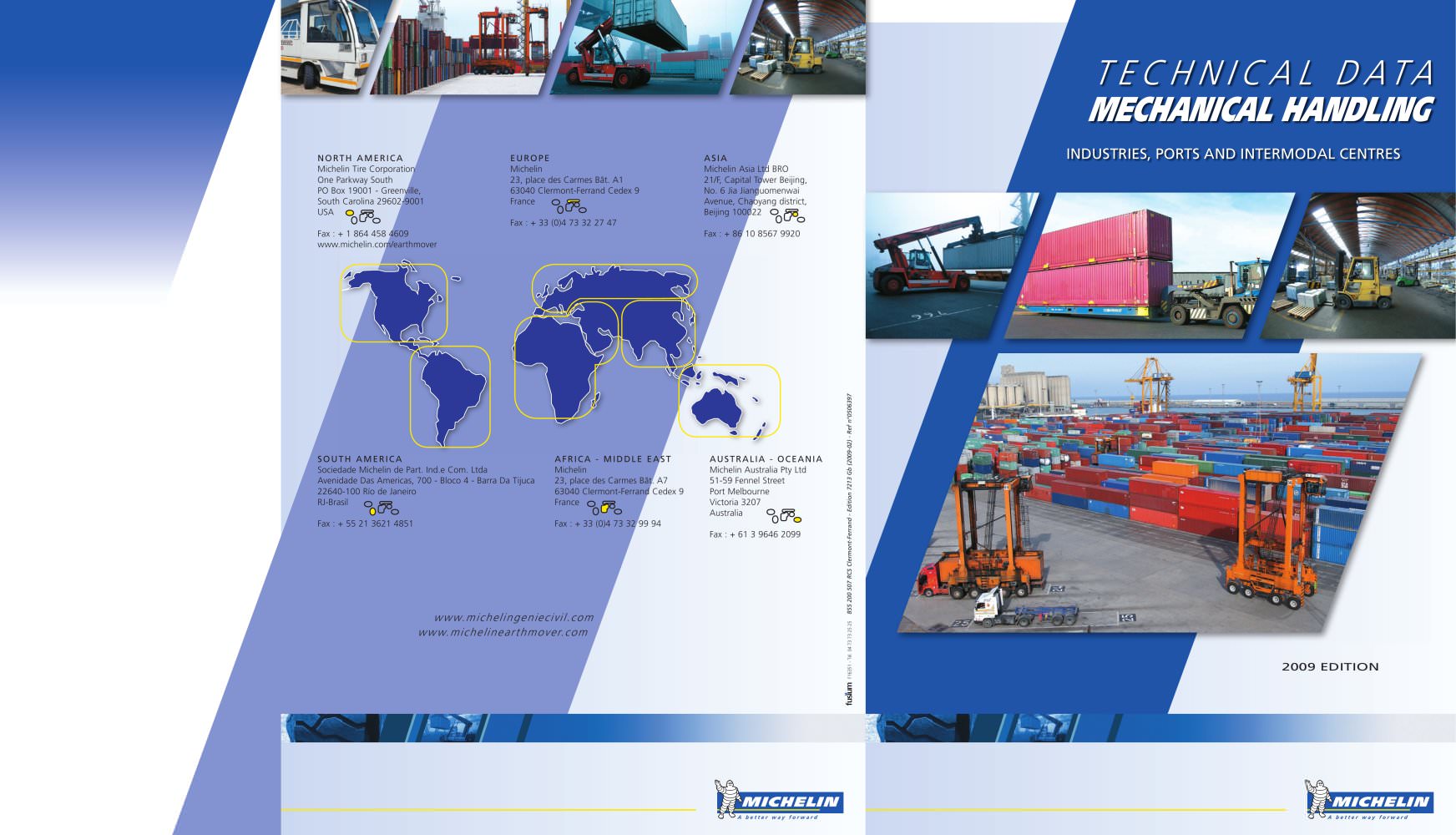

Technical databook - Mechanical handler - 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial", sans-serif; } .font3 { font:33.00pt "Arial", sans-serif; } .font4 { font:5.30pt "Sylfaen", serif; } \~ECHNICAL DATA MECHANICAL HANDLING INDUSTRIES, PORTS ANDINTERMODALCENTRES NORTHAMERICA Michelin Tire Corporation One Parkway South PO Box 19001 - Greenville, South Carolina 29602-9001 USA o Fax : + 1 864 458 4609 www.michelin.com/earthmover EUROPE Michelin 23, place des Carmes Bt. A1 63040 Clermont-Ferrand Cedex 9 France o Fax : + 33 (0)4 73 32 27 47 Michelin Asia Ltd BRO 21/F, Capital Tower Beijing, No. 6 Jia Jianguomenwai Avenue, Chaoyang district, Beijing 100022 °q^Sq Fax : + 86 10 8567 9920 rs, 3 ° O C SOUTHAMERICA Sociedade Michelin de Part. Ind.e Com. Ltda Avenidade Das Americas, 700 - Bloco 4 - Barra Da Tijuca 22640-100 Rio de Janeiro Fax : + 55 21 3621 4851 AFRICA-MIDDLEEAST Michelin 23, place des Carmes Bt. A7 63040 Clermont-Ferrand Cedex 9 France o Fv* Fax : + 33 (0)4 73 32 99 94 AUSTRALIA-OCEANIA Michelin Australia Pty Ltd 51-59 Fennel Street Port Melbourne Victoria 3207 Australia ^fi^o Fax : + 61 3 9646 2099 8 Ci c o LU C c o S QJ G www. michielingeniecivil. com www. michelinearthmover. com A better way forward A better way forward

Open the catalog to page 1
Technical databook - Mechanical handler - 3

TECHNICAL DATA MECHANICAL HANDLING PRINCIPLES OF TYRE CONSTRUCTION4 & 5 Solid tyres, bias tyres and radial tyresTyre Size Markings 10 to 27OTHER MICHELIN RADIAL TYRES USED FOR MECHANICAL HANDLING29 & 30 GENERAL INFORMATION6 to 8 Dimensions and tyre markingsLoad Index and Speed Symbol XZM - XZM STABILX - XZM2 STABILҒXX STACKER STABILX X TERMINAL-T X STRADDLE MICHELIN RADIAL TYRES FOR MECHANICAL HANDLING9 The different tread patterns Conditions of use - Tread patterns Contents CHARACTERISTICS OF MICHELININDUSTRIAL TYRES FOR:- FORKLIFT TRUCKS - TRACTORS - STRADDLE CARRIERS 32 & 33 Tubeless...

Open the catalog to page 3
Technical databook - Mechanical handler - 4

TECHNICAL DATA MECHANICAL HANDLING Tread RubberInterior RubberSidewall ProtectionBase RubberWire Core ReinforcementRimRetainer Bead Lock fi g. 1fi g. 2 The whole tyre is made of rubber, with the possibility of three different rubber compoundsThe construction of the tyres is different, depending on how they are fi tted to the rim.- the tyre may be built to look like a pneumatic tyre, and can be fi tted to a multipiece rim (fi g. 1) - the tyre may be designed and built in such a manner that it is not necessary to use the removable pieces of the rim to hold the tyre in position once fi...

Open the catalog to page 4
Technical databook - Mechanical handler - 5

TECHNICAL DATA MECHANICAL HANDLING The casing is made The crown up of several is notstabilized. criss-crossed plies. > The crown and sidewalls are formed by the same ply structure.The tread is subjected to any fl exing which occurs and this causes. - deformation of the tyre contact area on the ground- movement in the contact patch.The casing plies tend to scissorӔin relation to each other. Disadvantages:- accelerated wear. - less grip.- increased fuel consumption. The crown is stabilized by a belt made up of several plies.The casing has only one radial casing ply. > The sidewall and tread...

Open the catalog to page 5
Technical databook - Mechanical handler - 6

TECHNICAL DATA MECHANICAL HANDLING

Open the catalog to page 6
Technical databook - Mechanical handler - 7

TECHNICAL DATA MECHANICAL HANDLING EXPLANATION OF DIFFERENT MEASUREMENTS (ref. notes 1 and 2 on the following pages) > e : maximum overall section width D : external tyre diameter (R x 2) : nominal bead seat diameter(rim diameter) S : section width on measuring rim (this rim is indicated in bold) E : minimum dual spacing (on measuring rim) H : section height R : free radius (2R = D) Rؒ : static loaded radius * RC : rolling circumference * Tread depth : tyre tread depth in mm (rubber depth that can be used without risk) Cap. : Interior capacity of the tyre (to calculate the nitogen quantity...

Open the catalog to page 7
Technical databook - Mechanical handler - 8

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } TECHNICAL DATA MECHANICAL HANDLING GENERAL INFORMATIONS LOAD INDEX AND SPEED SYMBOL Industrial and handling tyres bear a Load Index and a Speed Symbol. The LOAD INDEX is a numerical code which indicate the maximum load a tyre can carry at the speed corresponding to its Speed Symbol, under specified conditions. Load index Load in kg Load index Load in kg Load index...

Open the catalog to page 8
Technical databook - Mechanical handler - 9

TECHNICAL DATA MECHANICAL HANDLING INDUSTRIAL USE (Forklift Trucks - Tractors - Straddle Carriers) XZM STABILX > standard profi le XZM and XZM STABILҒX > low profi le XZM2 STABILX X STACKER STABILҒXX TERMINAL-TX-STRADDLE AGRO-INDUSTRIAL TYRES FOR ALL TERRAIN USE XFXZSLXMCL EARTHMOVER TYRES > ROUGH TERRAIN XRXHD1XLB > LEVEL, MADE-UP SURFACES XK - XKD1XDRXGC TRUCK TYRES USED FOR MECHANICAL HANDLING XZYXZY2XZLXMLXZH 2R >

Open the catalog to page 9
Technical databook - Mechanical handler - 11

TECHNICAL DATA MECHANICAL HANDLING >

Open the catalog to page 11
Technical databook - Mechanical handler - 13

TECHNICAL DATA MECHANICAL HANDLING >

Open the catalog to page 13
Technical databook - Mechanical handler - 14

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:3.50pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } .font5 { font:19.00pt "Arial", sans-serif; } .font6 { font:4.20pt "Impact", sans-serif; } .font7 { font:5.30pt "Sylfaen", serif; } TECHNICAL DATA MECHANICAL HANDLING 14 CHARACTERISTICS OF MICHELIN INDUSTRIAL TYRES COMMERCIAL DESCRIPTION Types CAI (Part Number) Max. dist. / hour km Miles Standardized dimensions maximum in...

Open the catalog to page 14
Technical databook - Mechanical handler - 15

TECHNICAL DATA MECHANICAL HANDLING >

Open the catalog to page 15
Technical databook - Mechanical handler - 17

TECHNICAL DATA MECHANICAL HANDLING >

Open the catalog to page 17
Technical databook - Mechanical handler - 19

TECHNICAL DATA MECHANICAL HANDLING >

Open the catalog to page 19
Technical databook - Mechanical handler - 26

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:4.20pt "Impact", sans-serif; } .font3 { font:3.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:8.60pt "Lucida Sans Unicode", sans-serif; } .font6 { font:12.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:14.40pt "Lucida Sans Unicode", sans-serif; } TECHNICAL DATA MECHANICAL HANDLING 26 CHARACTERISTICS OF MICHELIN INDUSTRIAL TYRES COMMERCIAL DESCRIPTION Types CAI (Part...

Open the catalog to page 26
