AC / DC POWER SUPPLY PRIMARY SWITCHED MODE SINGLE OUTPUT PH 300 SERIES

Product catalog summary

Overview: The document provides technical specifications and ordering information for the PH 300 Series of AC/DC power supplies, which are primary switched mode, single output devices. It includes details on input/output parameters, protection features, and compliance with various standards.

Specifications:

Input Voltage: 120 or 230 VAC, with a range of AC 187 - 264 V or AC 94 - 132 V.
Efficiency: Typically between 85% and 88.5%.
Output Voltage: Adjustable ranges of 12 - 15 V and 23 - 29 V, factory preset at 12 V, 15 V, or 24 V.
Protection: Includes overvoltage, overtemperature, and current limitation protections. The device is short-circuit proof and features mains buffering up to 85 ms.
Regulation: Line regulation is less than 0.2%, and load regulation is less than 0.5% for single operation.

Ordering Information: The document lists order numbers for different configurations, including DIN-Rail and wall mounting options, with optional Power-Factor-Correction (PFC) for 230 VAC models.

Standards and Compliance:

Complies with EMC standards EN 50081-1 and EN 50082-2.
Safety standards include IEC 60950, EN 60950, VDE 0805, and UL 508.

Installation and Mechanics:

Devices can be mounted on a DIN-rail or wall-mounted using assembly kits.
Proper ventilation is required, with specific spacing guidelines provided.

Additional Features:

Includes a green LED operation indicator and soft-start performance to prevent overshooting of output voltage.
Offers a 3-year guarantee.

Catalog excerpts

AC / DC POWER SUPPLY PRIMARY SWITCHED MODE SINGLE OUTPUT PH 300 SERIES-1

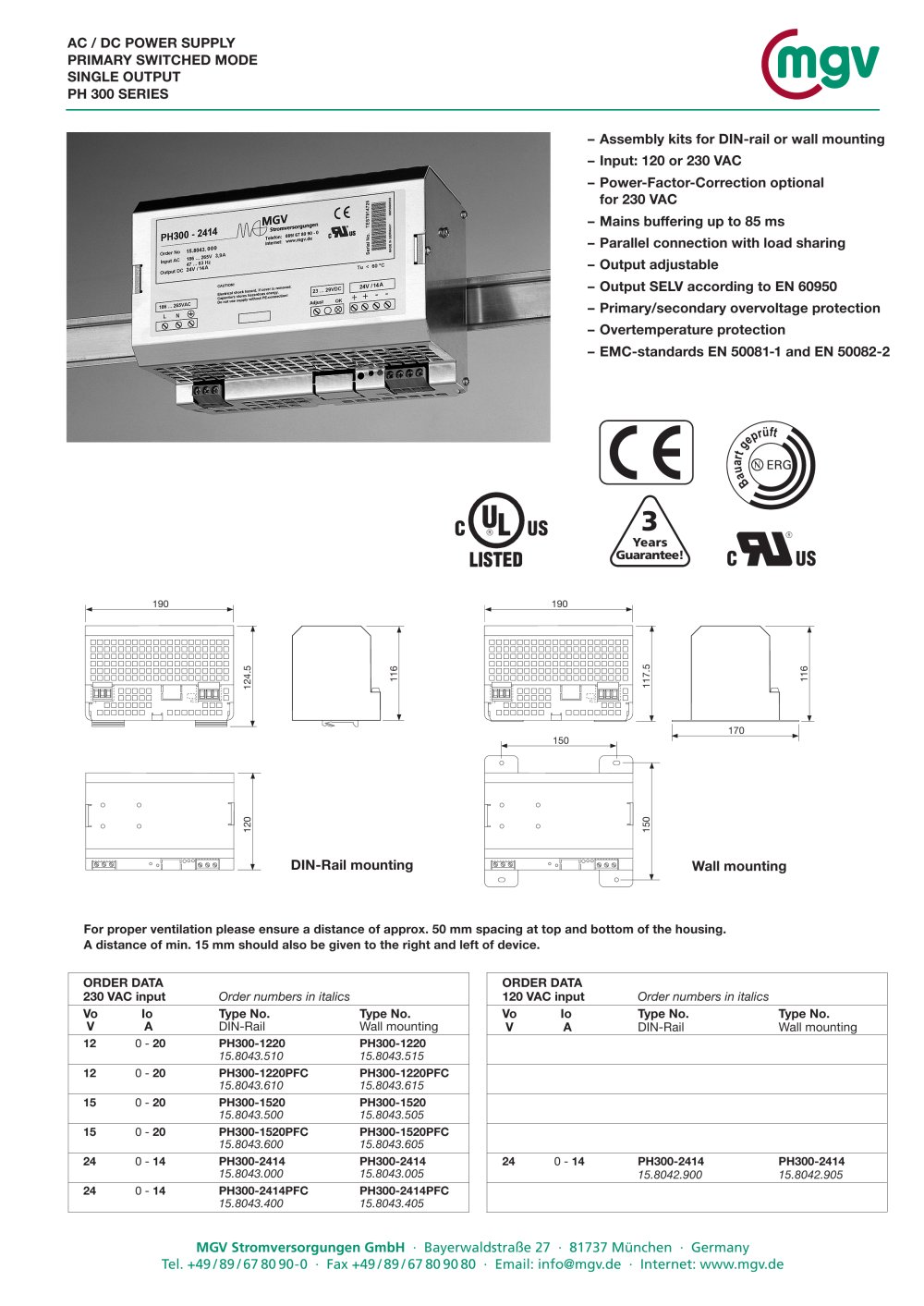

PRIMARY SWITCHED MODE SINGLE OUTPUT Assembly kits for DIN-rail or wall mounting Power-Factor-Correction optional Parallel connection with load sharing Output adjustable Output SELV according to EN 60950 Primary/secondary overvoltage protection Overtemperature protection DIN-Rail mounting Wall mounting For proper ventilation please ensure a distance of approx. 50 mm spacing at top and bottom of the housing. A distance of min. 15 mm should also be given to the right and left of device. ORDER DATA Order numbers in italics Wall mounting ORDER DATA Order numbers in italics Wall mounting MGV Stromversorgungen GmbH • BayerwaldstraGe 27 • 81737 Munchen • Germany Tel.+49/89/678090-0 • Fax+49/89/67809080 • Email: [email protected] • lnternetwww.mgv.de
