Specifications:

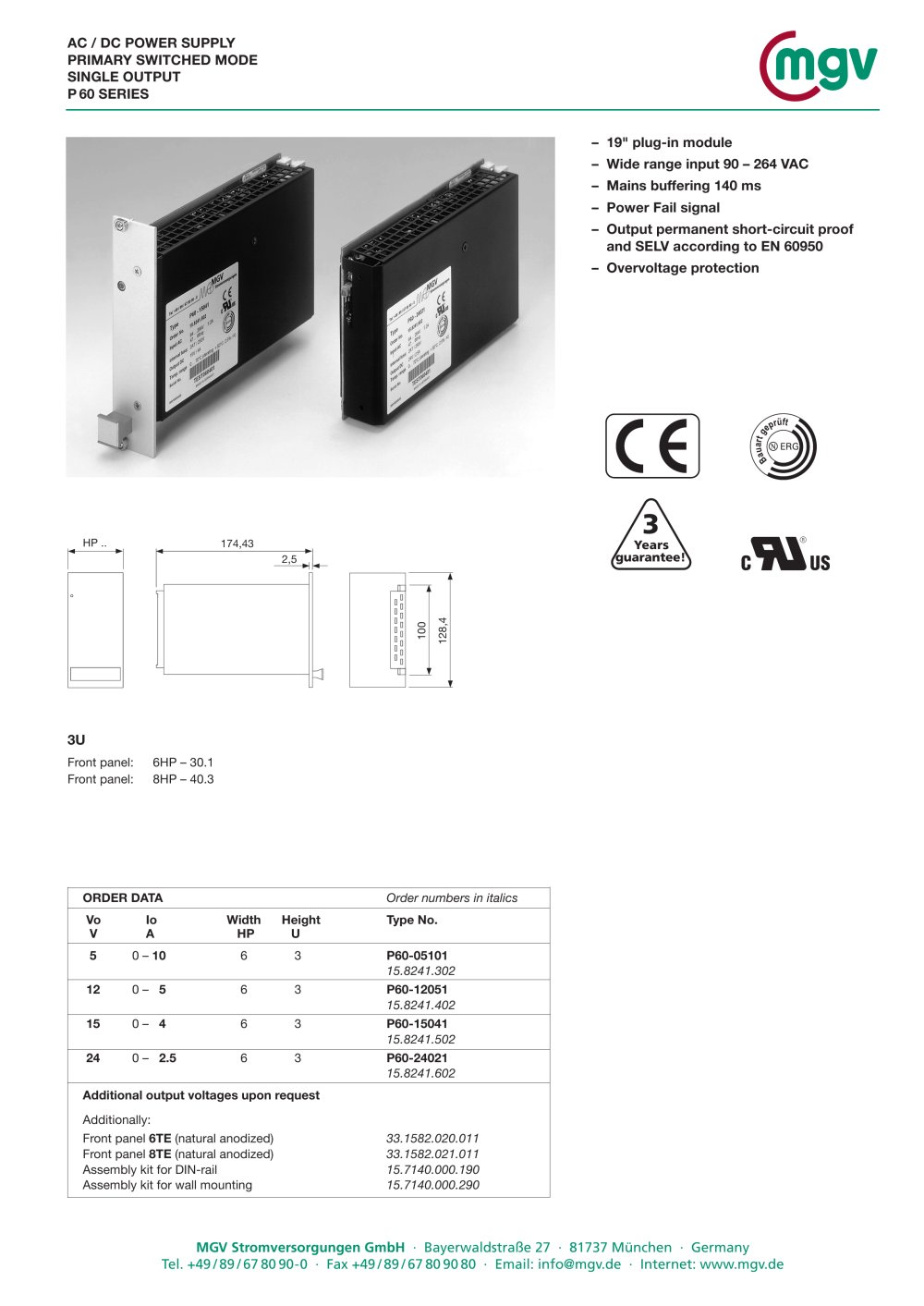

The document describes the P 60 Series AC/DC power supply, a primary switched mode, single output device. It is a 19" plug-in module with a wide input voltage range of 90 – 264 VAC and mains buffering of 140 ms. The power supply is designed to be short-circuit proof and complies with SELV according to EN 60950. It includes overvoltage protection and a power fail signal.

Order Data:
Various models are available with different output voltages and currents, such as 5V/10A, 12V/5A, 15V/4A, and 24V/2.5A. Additional output voltages can be requested. The front panel is available in natural anodized finishes, and assembly kits for DIN-rail and wall mounting are provided.

Input and Output Characteristics:
The input voltage range is 90 – 264V AC with an efficiency of 79 – 87%. The output features a preset range of V0 ±5%, with a ripple of less than 20 mVpp and noise voltage under 80 mVpp. The device has a temperature coefficient of ≤ 0.025% / K and a start-up delay of less than 1 second.

Regulation and Protection:
Line and load regulation are both under 0.1%. The device includes overvoltage protection at 125% ±5% of the nominal voltage and current limitation that switches off at 110% of the nominal current. It is designed to be permanently short-circuit proof.

EMC and Safety Standards:
The power supply complies with various EMC standards, including EN 61000-3-2, EN 61000-3-3, and EN 61000-6-2. It meets safety standards IEC 60950, EN 60950, and UL 60950, among others.

Operating Data:
The operating temperature range is 0 to 70°C with a derating of 2.5% / K at +50°C. The device weighs 0.35 kg and requires unobstructed ventilation from bottom to top.

Mechanical and Connection Details:
The power supply is a 19'' plug-in module according to DIN 41494 Part 5, with a connector H 15 / DIN 41612 codable. The pin assignment includes connections for mains, load, and power-fail signals.

Additional Notes:
Ensure the protective conductor (PE) is connected and do not use the supply without it. The document advises referring to the MVG user instructions for further details.
