AC / DC POWER SUPPLY PRIMARY SWITCHED MODE DOUBLE OUTPUT P 2060 SERIES

Product catalog summary

Overview: The document provides technical specifications and operational details for the P 2060 Series AC/DC power supply, a primary switched mode, double output unit designed for various applications.

Specifications:

Input: Wide range input voltage from 94 to 264 VAC, with efficiency between 75% and 85%. The input current limitation is ≤ 25Apeak in cold state and ≤ 35Apeak in hot state, with an internal fuse of 2 AT.
Output: The power supply offers floating outputs that can be series-connected for equal nominal voltages. It features a soft-start mechanism with no overshooting, a rise delay time of less than 0.8 seconds, and a run-up time of ≤ 30ms. The outputs are short-circuit proof and comply with SELV according to EN 60950.
Protection: Includes primary and secondary overvoltage protection, overtemperature protection, and current limitation between 105% and 140% of nominal current. The unit switches off when the internal temperature is too high and restarts periodically.
Regulation: Line regulation is less than 0.1% for Vo1 and Vo2, and load regulation is less than 0.2% for Vo1 and Vo2 at Io 0 – 100%.
EMC Standards: Complies with EN 50081-1 and EN 50082-2, with specific standards for interference suppression and immunity.

Mechanical and Safety Features:

The unit is a 19'' plug-in module with dimensions according to DIN 41494 Part 5 and weighs 350g.
It requires a protective conductor (PE) and should not be used without a PE connection.
Safety standards include IEC 60950, EN 60950, VDE 0805, and UL 1950, CSA 22.2-950.
Operating temperature range is 0 to +70°C with a derating of 2.5% per K at +50°C.

Additional Information:

Order data includes various configurations with different voltage and current outputs.
Accessories include a front panel and assembly kits for DIN-rail and wall mounting.

Catalog excerpts

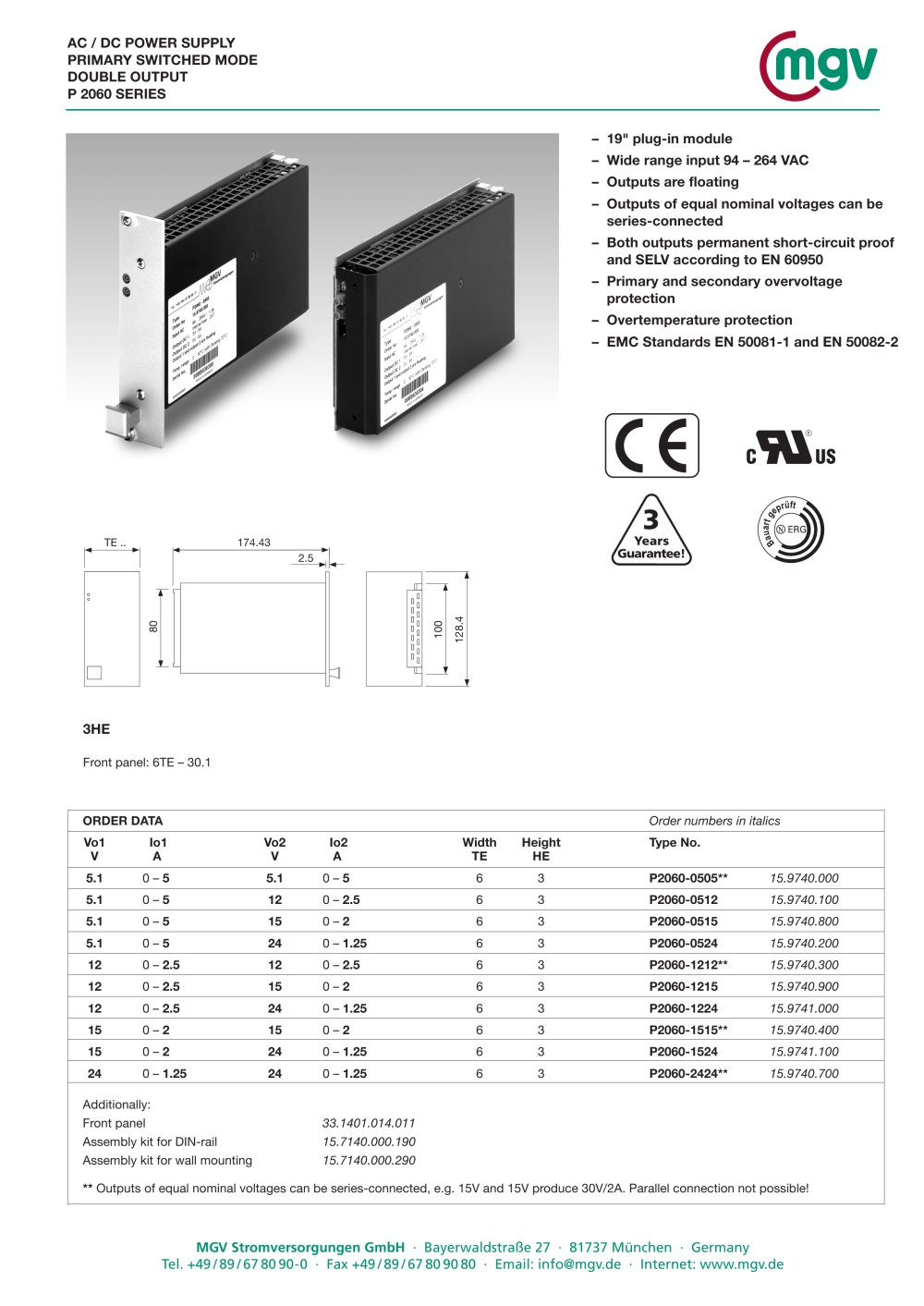

AC / DC POWER SUPPLY PRIMARY SWITCHED MODE DOUBLE OUTPUT P 2060 SERIES-2

PRIMARY SWITCHED MODE DOUBLE OUTPUT Input voltage range Input current limitation Internal fuse OPERATING DATA Operation indicator Noise voltage Temperature coefficient Rise delay time Run-up time Temperature range 0...+70°C, at free convection Ventilation from bottom to top of the power supply and the housing-specific heat radiation must not be obstructed when installing the power supply. Ensure fire protection by means of the surrounding housing system. In general, kindly refer to the MGV user instructions before use. 19" plug-in module according to Line regulation Load regulation Response time...
