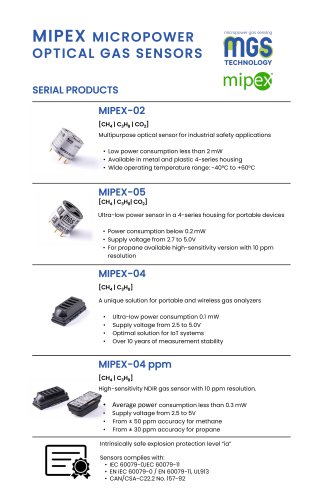

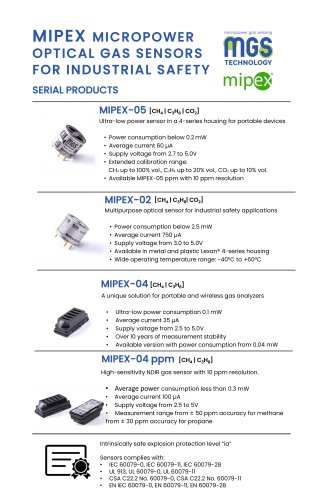

MIPEX MICROPOWER OPTICAL GAS SENSORS FOR INDUSTRIAL SAFETYSERIAL PRODUCTS MIPEX-05 [CH41 CsHs | CO2] Ultra-low power sensor in a 4-series housing for portable devices • Power consumption below 0.2 mW • Supply voltage from 2.7 to 5.0V • Extended calibration range: • Available MIPEX-05 ppm with 10 ppm resolution Multipurpose optical sensor for industrial safety applications • Power consumption below 2.5 mW • Supply voltage from 3.0 to 5.0V • Available in metal and plastic Lexan® 4-series housing • Wide operating temperature range: -40°C to +60°C A unique solution for portable and wireless gas analyzers Ultra-low power consumption 0.1 mW Supply voltage from 2.5 to 5.0V Over 10 years of measurement stability Available version with power consumption from 0.04 mW High-sensitivity NDIR gas sensor with 10 ppm resolution. • Average power consumption less than 0.3 mW • Supply voltage from 2.5 to 5V • Measurement range from ± 50 ppm accuracy for methane from ± 30 ppm accuracy for propane Intrinsically safe explosion protection level "ia" Sensors complies with:

Ultra-low power NDIR sensor for portable and battery-powered gas detectors • Power consumption below 0.2 mW • Supply voltage from 2.7 to 5.0V • Extended calibration range: Half-height solution for small-sized and portable gas detectors • Power consumption below 0.2 mW • Supply voltage from 2.7 to 5.0 V • Height: 10 mm with a base size of 19.9x19.9 mm • Reduced sensor response time (T90) Ready-to-use optical measurement unit for stationary gas detection systems • Power consumption below 2 mW • Supply voltage from 3.0 to 5.0 V • Four- or dual-channel measurement method • Wide operating temperature...
