Catalog excerpts

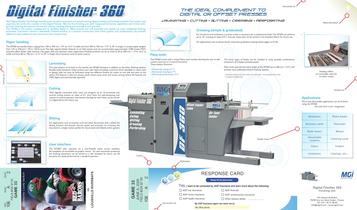

DF360 - 1

Horizontal (H) = feeding direction Vertical (V) = perpendicular to feeding direction Input - high capacity feeder Type: air feed system (suction) Double feed detection system Capacity: 3000 sheets (60 cm / 23.5" paper pile) Thickness: up to 400 microns (without lamination) up to 320 microns (with lamination) Feeder table/registration Type: offset with 24 adjustable guidance balls Adjustment: automatic via user templates Standard configuration: 100 sheet capacity (tray) or jogging table Thermo-controlled rollers Film options: matte, satin or gloss Film thickness: 35 to 80 microns Number of rolls: 2 - 300 m / 1,000 ft each Settings: automatically controlled via user templates Able to be enabled / disabled at any time Directions: Horizontal (H) and vertical (V) Types: rotary blades (H) & guillotine (V) Number of cuts per sheet: up to 16** Maintenance: none required, self-sharpening tools Digital Graphic Technology Europe/Middle East/Africa 94204 Ivry s/Seine Cedex - FRANCE Number of tools: 2 sets of blades Type: rotary blades Maintenance: none required, self-sharpening tools Directions: horizontal (H) and vertical (V) Types: rotary blade (H) guillotine (V) Number of creases per sheet: up to 16* Repeatability: up to 9 creases in the same position Modes: simple or automatic offset Flexy tools module Type: rotary blades Standard configuration Setting: manual Space between blades: 32 mm / 1.26" Digital Graphic Technology Glossy lamination Offline Multi-function Finishing Solution for Digital and Offset Prints Cutting & Slitting Digital pilot Touch-screen interface (5.7' display) Mbdes "assisted" (via design templates) and "expert" (free-form) Up to 999 preset user templates ^ool management & technical modes (manual tool manipulation) Electrical requirements I 220-240V ( I phase 16A 3.7 kW each + I phase 8A 0.3 kW) # without the jogging table L=388 cm (12.73') with the jogging table Relative Humidity level: 30 to 70 % - optimal 40 to 60 % RH / will vary according to finishing tools and paper size used ' Number of cuts and creases for the same sheet -not Including Flexy tools Americas/Caribbean/Asia Pacific All the other trademarks cited are marks registered by their respective manufacturers This is not a contractual document and technical specifications subject to change without notice Operator/end-user are invited to submit substrates to MGI for validation This brochure was printed on MGI's Meteor DP8700 XL® multi-substrate digital press (using 250 gsm glossy Finishing done on the MGI DF360®. One side using matte lamination and the other satin lamination. It was then cut, creased and perforated in just one pass.

Open the catalog to page 1
DF360 - 2

MGI Digital Graphie Technology manufactures versatile, innovative and award-winning digital printing and finishing solutions.This unique dual expertise led to the the creation of the Digital Finisher 360, the first finishing unit with integrated lamination capabilities and in-line multi- function finishing (horizontal and vertical cutting, creasing slitting and scoring) in just one pass. The DF360 is the perfect complement to sheetfed digital or offset presses and will automate and speeds up many traditional finishing processes. Customers receive a beautifully finished product in a shorter...

Open the catalog to page 2
