MEVA load tower

Product catalog summary

Overview
The MEVA Load Tower LT50 is a heavy-duty support system designed for high shoring and heavy loads, featuring long-lifespan steel frames. It offers high stability with a wide footprint of 125 x 125 cm and torsion-resistant frames. The system is hot-dip galvanized for durability, with a maximum load capacity of 50 kN per leg.

Specifications

Maximum load per leg: 50 kN
Footprint: 125 x 125 cm
Heaviest item weight: 25 kg
Adjustable head and base spindles
Frame heights: 100 cm and 133 cm
Base spindle adjustment range: 75 to 425 mm
Head spindle adjustment range: 75 to 325 mm

Assembly and Flexibility
The LT50 allows for rapid assembly by one person without special tools. It supports horizontal assembly and can be crane-lifted to vertical. The system is flexible for various applications, including high slab formwork and precast beam support, making it ideal for industrial and engineering projects.

Safety and Recommendations
MEVA recommends consulting their engineering team for design assistance when using the LT50. Compliance with national and local safety regulations is essential. Cross bracing with scaffold tubes may be required for certain applications to manage uplifting, tilting, or horizontal load transfer.

Components and Weights

Frame 100 LT50: 15 kg
Frame 133 LT50: 18.9 kg
Strut 150 LT50: 2.5 kg
End frame LT50: 23.9 kg
Head spindle LT50: 9.8 kg
Base spindle LT50: 10.3 kg
Clip for LT50: 0.04 kg

Contact Information
MEVA Schalungs-Systeme GmbH, Industriestraße 5, D-72221 Haiterbach, Germany. Tel: +49 7456 692-01, Email: [email protected], Website: www.meva-international.com

Catalog excerpts

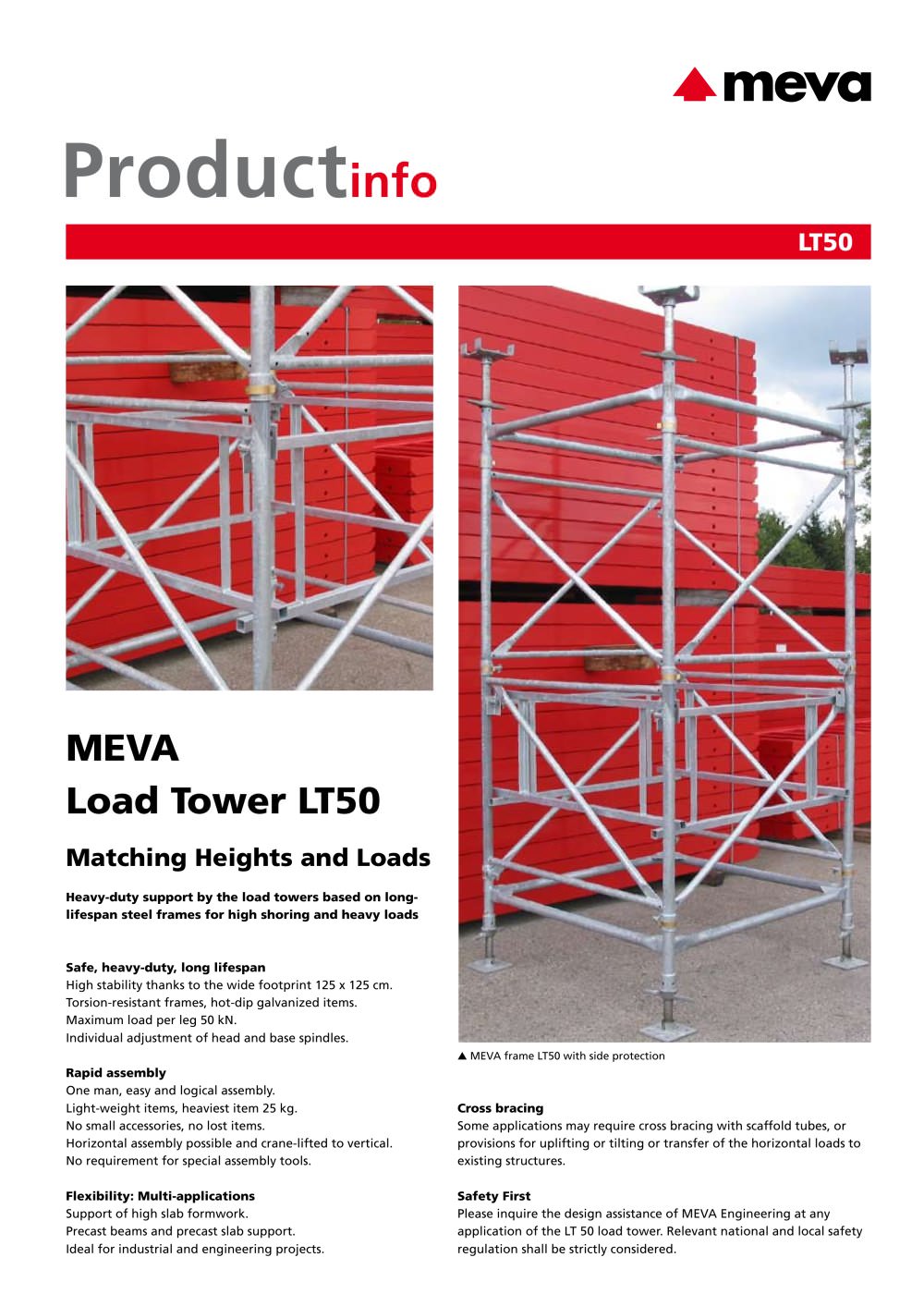

LT50 Productinfo MEVA Load Tower LT50 Matching Heights and Loads Heavy-duty support by the load towers based on longlifespan steel frames for high shoring and heavy loads Safe, heavy-duty, long lifespan High stability thanks to the wide footprint 125 x 125 cm. Torsion-resistant frames, hot-dip galvanized items. Maximum load per leg 50 kN. Individual adjustment of head and base spindles. Rapid assembly One man, easy and logical assembly. Light-weight items, heaviest item 25 kg. No small accessories, no lost items. Horizontal assembly possible and crane-lifted to vertical. No requirement for special assembly tools. Flexibility: Multi-applications Support of high slab formwork. Precast beams and precast slab support. Ideal for industrial and engineering projects. £ MEVA frame LT50 with side protection Cross bracing Some applications may require cross bracing with scaffold tubes, or provisions for uplifting or tilting or transfer of the horizontal loads to existing structures. Safety First Please inquire the design assistance of MEVA Engineering at any application of the LT 50 load tower. Relevant national and local safety regulation shall be strictly considered.

Open the catalog to page 1

H20 2,90 m H20 2,90 m H20 2,90 m H20 2,90 m 2185 GB PDF 4/10, Printed in Germany MEVA Schalungs-Systeme GmbH Industriestraße 5 D-72221 Haiterbach Tel. +49 7456 692-01 Fax +49 7456 692-66 [email protected] BGðmSofija, Tel. 02 9898277 CDNðmToronto, Tel. 905 8576037 CZ-Praha, Tel. 283 085333 FðmChampsðmsurðmMarne, Tel. 01 64621060 FðmSarreguemines, Tel. 0387 959938 HðmBudapest, Tel. 01 2722222 IND-Mumbai, Tel. 0222 7658884 NLðmGouda, Tel. 0182 570770 ROðmBucuresti, Tel. 0 21 3169882 RUSðmMoskva, Tel. 495 7813737 RUSðmSankt-Peterburg, Tel. 812 3320188 SGP-Singapore, Tel. 656389 1832 UAðmKiev, Tel. 8044...
