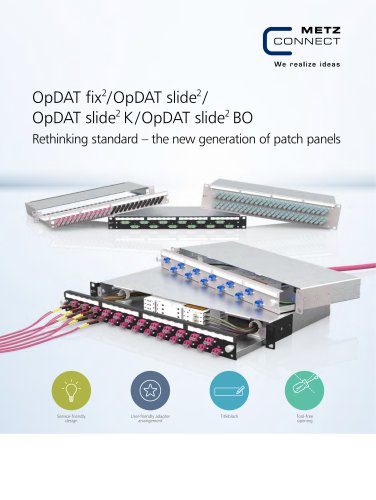

OpDAT fix2/ OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Rethinking standard – the new generation of patch panels Service-friendly design User-friendly adapter arrangement Tool-free opening

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Technical information Product specification The new generation of the OpDAT patch panel is available in 2 different designs. The OpDAT fix2 is designed for permanent installation. The patch panel cover can be opened without tools, making quick and easy access possible. The OpDAT fix2 can be selected as a 1 RU or 2 RU variant. The OpDAT slide2 has an extending drawer, which can be tilted down when extended, therefore making work inside on the 19 inch box easier. The OpDAT slide² 30 mm can be adjusted in depth if required....

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Technical information Product specification The new OpDAT slide² K fits seamlessly into the new generation of OpDAT patch panels. It is based on the well-known OpDAT slide². Highlights include the box‘s depth, which is approximately 30 % smaller than the OpDAT slide², and it‘s angled cable entries. The reduced depth and angled cable entries allow for use in 19-inch data cabinets with equipment from the front and rear within the same height unit. Installation in 19-inch wall cabinets is also simplified. The new OpDAT slide²...

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Variants Product name Permanent installation fix² Tool-free cover available as a 1 RU or 2 RU variant extendable tilts down slide² innovative quick fastener depth adjustable Things in common Housing made from steel sheet Front plate powder coated removable labeling field optional: strain relief for incoming cabl

METZ CONNECT - OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO > angled cable entries > optional strain relief for incoming cables Things in common > extendable > innovative quick fastener > Housing made from steel sheet > Front plate powder coated > removable labeling field

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Equipment variants OpDAT slide² / OpDAT fix² Splice Equipped with pigtails and adapters, this variant is prepared for the connection of installation cables. The pigtails are visually checked in line with IEC 61300-3-35 Ed.2 and kept ready to splice in the splice trays. Assignment is in line with the color code of IEC 60304. Prefab The “Prefab” is the best choice when working with pre-terminated cables. The patch panel is equipped with adapters and the U-cut-outs at the back allow the incoming cables to be installed quickly...

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Equipment variants OpDAT slide² K / OpDAT slide² BO Splice As an OpDAT slide² K equipped with pigtails and adapters, this variant is prepared for the connection of installation cables. The pigtails are visually inspected according to IEC 61300-3-35 Ed.2 and stored in splice trays with splice holders, ready for splicing. The pin assignment is color-coded according to IEC 60304. Available with up to 24 fibers (with crimp splice protection). Prefab The „Prefab“ version of the OpDAT slide² K is the optimal choice for working...

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Front plates The connector cut-outs on the new front plate are arranged in a user-friendly manner so that each connector can be easily removed or inserted. The front plates can also be ordered with mixed components. The front plates are available for the following adapter cut-outs. All front plates of the 1 RU version are available with either 12 or 24 adapter breakouts. They feature a removable labeling field and are powder-coated in gray (RAL 7035). There are 48 adapter breakouts available for the fix² 2 RU version....

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Title block Each front plate is equipped with labeling fields. These can be individually filled out by hand or with a labeling device. The labeling fields can also be removed and the labeling can be glued on. Printed using a label printer Hand written Dimensional drawing

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Cable entries (fix2 / slide2 / slide2 K & slide2 BO back) Kabeleingänge (fix2 / slide2 / slide2 K / slide2 BO Rückseite) fix 2 = Brush strip cable entry

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Connecting installation cables with cable glands and optional strain relief, as well as connecting Prefabs with cable glands and Prefabs with retaining plates. Brush strip cable entry Configuration – a patch panel to suit your needs* 1. Select basic housing slide² extendable short Permanent installation extendable breakou

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Configuration – a patch panel to suit your needs* 2. Select application Pre-terminated cables Cable connection 3. Select front plate *Examples – further configuration options can be selected 4. Select adapter type / fiber type

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO 5. Select the number of adapters

METZ CONNECT – OpDAT fix2 / OpDAT slide2 / OpDAT slide2 K / OpDAT slide2 BO Accessories Strain relief A M20 or M25 strain relief can be optionally attached. This is mounted on the cable gland and the incoming cable is fixed with strain relief elements. Size Product image Patch cord tray Clean and organized cabling is part of every installer's job and allows for quick and effective troubleshooting in the event of patching or damage. The METZ CONNECT patch cord tray can be mounted to any OpDAT fix2 and neatly leads all plugged patch cords outside. The mounted panel can be quickly removed to gain...
