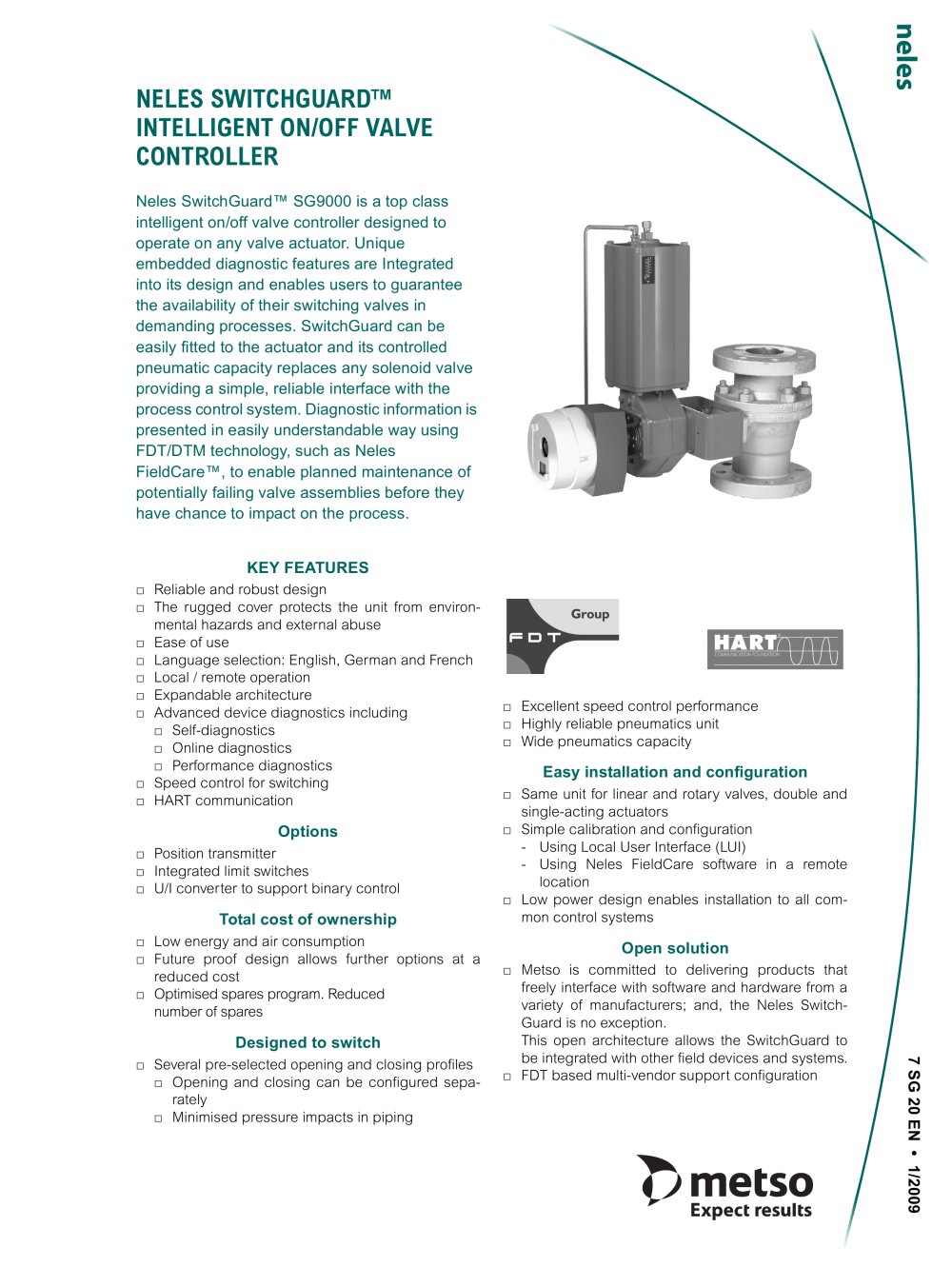

Reliable and robust design The rugged cover protects the unit from environ-mental hazards and external abuse Ease of use Language selection: English, German and French Local / remote operation Expandable architecture Advanced device diagnostics including Excellent speed control performance Self-diagnostics Highly reliable pneumatics unit Online diagnostics Wide pneumatics capacity Performance diagnostics Speed control for switching > HART communication Same unit for linear and rotary valves, double andsingle-acting actuators > Simple calibration and configuration- Using Local User Interface (LUI)- Using Neles FieldCare software in a remotelocation Position transmitter Integrated limit switches U/I converter to support binary control Low power design enables installation to all com-mon control systems > Low energy and air consumption Future proof design allows further options at areduced cost > Metso is committed to delivering products thatfreely interface with software and hardware from avariety of manufacturers; and, the Neles Switch-Guard is no exception. This open architecture allows the SwitchGuard tobe integrated with other field devices and systems. Optimised spares program. Reduced number of spares > FDT based multi-vendor support configuration > 7 SG 20 EN ٕ 1/2009 Several pre-selected opening and closing profiles Opening and closing can be configured sepa-rately Minimised pressure impacts in piping >
Open the catalog to page 1Modular design with maintenance components The SwitchGuard is a 420 mA loop-powered microcontrol-ler-based intelligent on/off valve controller. Binary 24 VDCsignal can be used via optional U/I converter. The Switch- Guard operates even at 3.6 mA input signal and communi-cates via HART. The device contains a Local User Interfaceenabling local configuration. A PC with FieldCare software can be connected to the SwitchGuard itself or to the controlloop.The powerful 32-bit microcontroller controls the valve posi- tion. The measurements include: Alterable pneumatics module Fewer maintainable...
Open the catalog to page 27 SG 20 EN NELES SWITCHGUARDINTELLIGENT ON/OFF VALVECONTROLLER Loop powered, no external power supply required.Suitable for rotary and linear valves.Actuator connections in accordance with VDI/VDE 3845 and IEC 60534-6 standards.Action: Double or single actingTravel range: Linear: 10ٖ120 mm Rotary: 4595ְMeasurement range 110 with freelyrotating feedback shaft Electrical connection: max. 2.5 mm > 2 HARTSupply power: Loop powered, 4 Minimum signal: 3.6 mACurrent max : 23 mALoad voltage: up to 9.5 V DC / 20 mA(corresponding 475 .)Voltage: max. 30 V DCPolarity protection: -30 V DC Over current...
Open the catalog to page 3Intrinsically safe and non incendiveATEX II 1 G EEx ia IIC T4...T6 (EN50014, EN50020,EN50284) II 2 G EEx ia IIC T4...T6 (EN50014, EN50020)II 3 G Ex nA IIC T4...T6 (EN60079-0, EN60079-15) CSA (Pending)IS Class I, Div. 1, Groups A, B, C, D T4...T6IS Class I, Zone 0, Ex ia IIC T4...T6 NI Class I, Div. 2, Groups A, B, C, D T4...T6 FM (Pending)IS Class I, Div. 1, Groups A, B, C, D T4...T6IS Class I, Zone 0, AEx ia IIC T4...T6NI Class I, Div. 2, Groups A, B, C, D T4...T6NI Class I, Zone 2, Ex nA II T4...T6 Flameproof and explosion proofATEX II 2 G Ex d IIC T3...T4(ZELM 07ATEX 0342 X according to...
Open the catalog to page 47 SG 20 EN NELES SWITCHGUARDINTELLIGENT ON/OFF VALVECONTROLLER
Open the catalog to page 5ACCESSORIES CE091/2 NPT conduit entry nipplesM20x1,5 / 1/2 NPT, Exd approved Code: K0148 CG5 M20 x 1,5 cable gland, grey/plastic, IP66 Code: H6870CG6M20 x 1,5 cable gland, blue/plastic, IP66, EEX eCode: H5057 U/I Converter, Seneca K109UI. DC Input.. Input voltage 0 to 30 VDCPower/Supply: 19.2 to 30 VDCPower Consumption: 500 mW U48U/I Converter, P+F KFDX-DCV. DC InputInput voltage 10 mV to 100 VDC Power/Supply: 9 to 30 VDCPower Consumption: ≤ 1.5 W U24 U/I Converter, P+F KFDX-AC. AC Input. Input voltage 100 mV to 250 VACPower/Supply: 9 to 30 VDCPower Consumption: ≤ 1,5 WKFilter regulator for...
