Eliminator™ 2000 WOG / 600 ANSI Class Screwed End Ball Valves

Product catalog summary

Overview: The Eliminator ball valve is engineered for high performance and cost-effectiveness, featuring fire-test specifications, robust actuator mounting, and flexible-lip seats for versatile applications. It is available in sizes ranging from 1/4" to 2" (DN 8 to 50) and comes in two versions: one rated by traditional Cold Working Pressure (CWP) and the other by ANSI Standard B16.34.

Specifications: The valve is constructed from carbon and stainless steel, suitable for steam applications with XTREME® and PTFE seats. The CWP version is rated at 2000 psi (138 bar), while the ANSI version is rated at 600 Class, 1480 psi (102.1 bar).

Features: Notable features include reliable bi-directional shutoff, a new XTREME seat for extended life, and a polymeric flexible lip-seat design for tight shut-off and prolonged cycle life. The valve meets ANSI Class 600 standards and API 607 fire-test requirements.

New Features and Benefits: Enhancements include a new stem seal system for extended sealing life, ISO 5211 Bonnet for global conformity, and an optional CE Marking. It also features a stainless steel linkage for actuators to minimize maintenance and ensure longevity.

Valve/Actuator Interface: The interface supports up to a 200 lb. load in any direction without causing actuator misalignment, ensuring no stem seal leakage.

Materials and Construction: The valve body is made from carbon steel or 316 stainless steel, with seat materials including PTFE, XTREME, Delrin®, and UHMW polyethylene. It is designed to handle temperatures from -20˚F to +100˚F (-29˚C to +38˚C).

Accessories: Optional accessories include bonnet and stem extensions, round and oval handles, and stainless steel linkages for actuators.

Torque and Actuation: Torque data is provided for actuator selection, with adjustments for media characteristics and valve operation frequency. Actuators are available in pneumatic and electric models.

Standards and Compliance: The valve complies with standards such as API 608, MSS SP-25, ANSI B1.20.1, and API 607 for fire testing.

Installation, Maintenance, and Operation Instructions: Guidelines for installation, maintenance, and operation of Metso Automation products are provided. These instructions, known as IMO's or AMI's, are included with the products, and additional copies can be obtained through local distributors or the company's website.

Technical Documentation Updates: Metso Automation regularly reviews and updates technical bulletins for their products. The most current information is available on their website.

Valve Specifications: Specifications for ordering Eliminator Ball Valves include valve size, pressure class, body material, ball and stem material, and seat and seal material. Key materials mentioned include 316 Stainless Steel, Monel, Hastelloy C, and various seat and seal options like PTFE and TFM.

Ordering Instructions: To order a valve, select the appropriate body style, material combination, and seat material based on the application. An example is provided for a 1-1/2" Fire-Tite ANSI Class 600 NPT ball valve with specific material and construction details.

Trademark Information: Delrin, Monel, Hastelloy, and TFM are registered trademarks of their respective companies.

Catalog excerpts

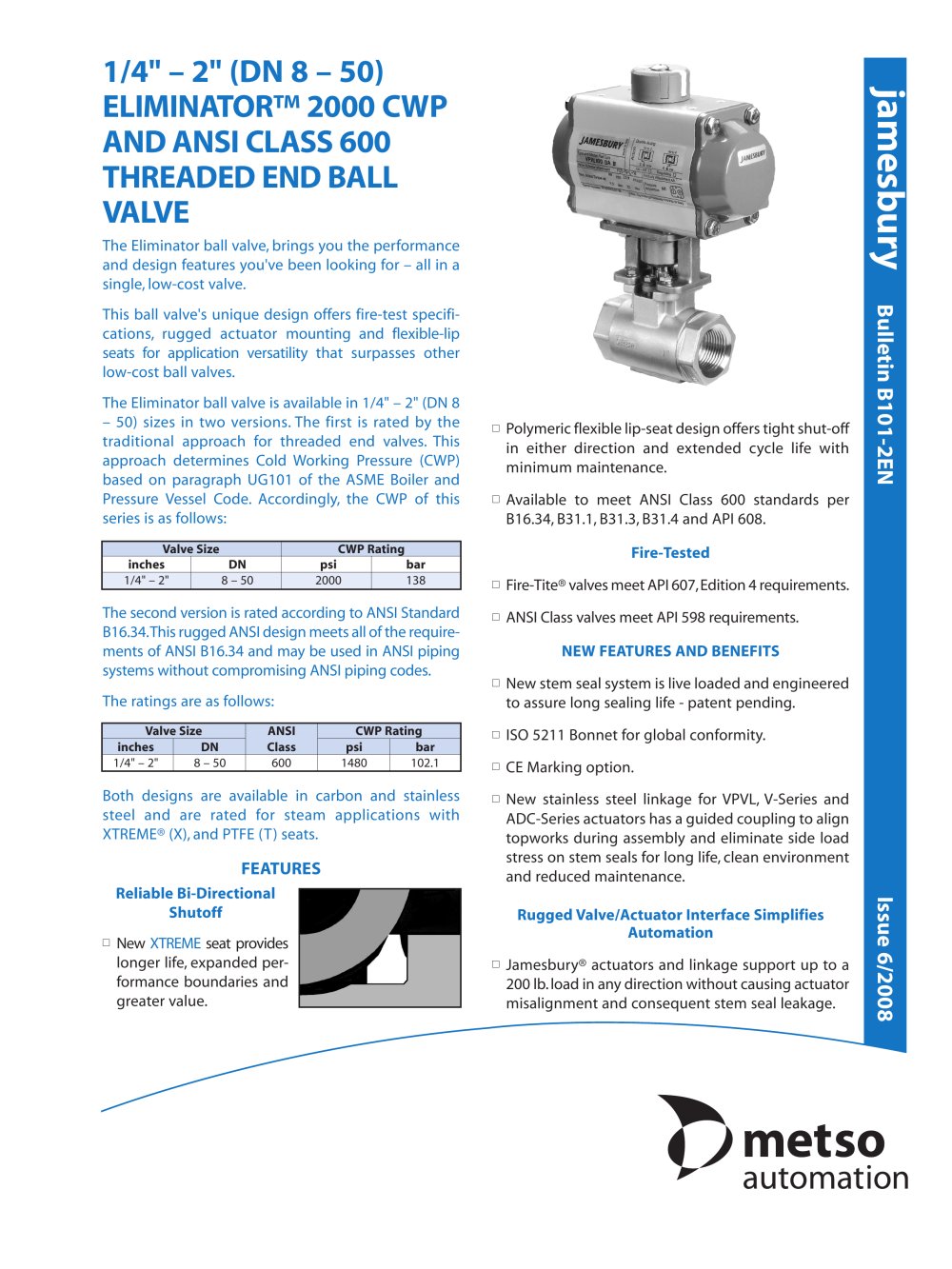

Eliminator™ 2000 WOG / 600 ANSI Class Screwed End Ball Valves-1

jamesbury The Eliminatorball valve,brings you the performanceand design features you've been looking for ٖ all in a single,low-cost valve.This ball valve's unique design offers fire-test specifi-cations,rugged actuator mounting and flexible-lip seats for application versatilitythat surpasses otherlow-cost ball valves.The Eliminatorball valve is available in 1/4" 2" (DN 8֖ 50) sizes in two versions.The first is rated by the traditionalapproach for threaded end valves.This approach determines Cold Working Pressure (CWP) based on paragraph UG101 of the ASME Boiler and Pressure Vessel Code.Accordingly,the CWP of this series is as follows:The second version is rated according to ANSI StandardB16.34.This rugged ANSI design meets all of the require- ments of ANSI B16.34 and may be used in ANSI piping systems without compromising ANSI piping codes.The ratings are as follows:Both designs are available in carbon and stainlesssteel and are rated for steam applications with XTREME (X),and PTFE (T) seats. > Bulletin B101-2ENIssue 6/2008 ΢֠ Polymeric flexible lip-seat design offers tight shut-offin either direction and extended cycle life withminimummaintenance. > ■ Available to meet ANSI Class 600 standards perB16.34,B31.1,B31.3,B31.4 and API 608. > Valve SizeCWP Rating inchesDNpsibar Fire-Tested > 1/4" 2"8 ֖ 502000138 ■ Fire-Tite valves meet API 607,Edition 4 requirements. > ΢֠ ANSI Class valves meet API 598 requirements. NEW FEATURES AND BENEFITS > ■ New stem seal system is live loaded and engineeredto assure long sealing life - patent pending. > Valve SizeANSI CWP RatinginchesDNClasspsibar ■ ISO 5211 Bonnet for global conformity. > 1/4" 2"8 ֖ 506001480102.1 ■ CE Marking option. > ■ New stainless steel linkage for VPVL,V-Series and ADC-Series actuators has a guided coupling to aligntopworks during assembly and eliminate side load stress on stem seals for long life,clean environment and reduced maintenance. Rugged Valve/Actuator Interface SimplifiesAutomation > Reliable Bi-DirectionalShutoff > ■ New XTREMEseat provideslonger life,expanded per-formance boundariesand greater value. > ■ Jamesburyactuators and linkage support up to a200 lb.load in any direction without causing actuatormisalignment and consequent stem seal leakage. >

Open the catalog to page 1

Eliminator™ 2000 WOG / 600 ANSI Class Screwed End Ball Valves-3

B101-2EN1/4" 2" (DN 8 ֖ 50) ELIMINATOR 2000 CWP AND ANSI CLASS 600 THREADED END BALL VALVEREV.6/08 Patented stem seal (70017915) has3 engineered sealing zones toprovide multiple barriers for longterm sealing. 32 Fully guided stem,couplingand precision bracket assures optimum form,fit and performanceCompression plate and discsprings to accomodate thermal and pressure cycles. 1 1 32 Automation Performance and Value www.jamesbury.com. Eliminatorvalves combined with Jamesburyactuators,network capable valve monitors and communication devices offer a total value and performance package. Available with...
