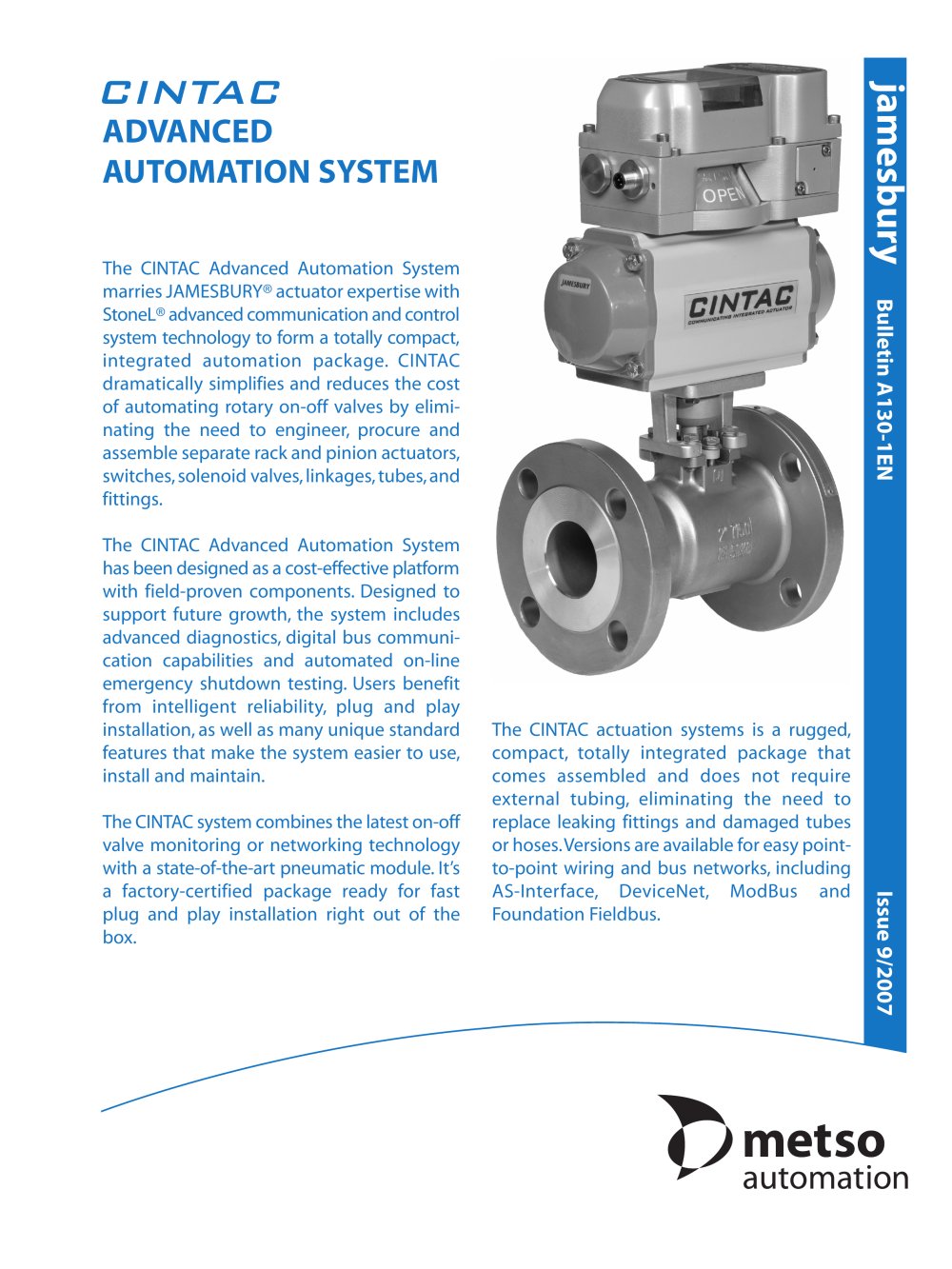

CINTAC Advanced Automaton System (English) - 2

The heart of the system is a rugged,field proven rack andpinion pneumatic module with ISO 5211 interface for com- patibility with any quarter turn valve.The CINTAC automa- tionsystem combines high cycle life,rugged construction and a compact,symmetrical design with a unique range of features and options. > ■ Modular design with same body and end caps for dou-ble-acting and spring return models reduce inventory. > ■ Safety-contained multi-spring design with preloaded and heavy-duty coated springs for simpler range versatility, greater safety and corrosion resistance. > ■ Failure direction...

Open the catalog to page 2

CINTAC Advanced Automaton System (English) - 3

The CINTAC automation system provides reliable and scalable on-off valve networking and communications solutions.Using a contact-free magnetic resistive (Mag Res) sensor system,CINTAC reliably monitors exact valve position.The Mag Res sensor system is tolerant of lateral and vertical shaft movement,and cams,shafts and other mechanical parts prone to wear are not required. > ■ High accuracy position sensor system is solid state withno moving wear points for highly reliable and preciseposition feedback. > ■ In addition to being corrosion resistant and temporarilysubmersible,CINTAC is suitable...

Open the catalog to page 3

CINTAC Advanced Automaton System (English) - 5

PneumaticTorque Output in FTLBS - CT XXDA Double-Acting Pneumatic Module at Specified psi Supply Pressures Module40 psi50 psi60 psi70 psi80 psi90 psi100 psi CT100 1214.917.920.923.926.829.8 CT200 23.729.63541475359 CT250 37.246.65565748393 CT300 5467.68194108122135 CT400 113141169197225254282 CT500 231289346404462519577 CT600 4335416497578669741082 CT650 74493111171302148916751860 PneumaticTorque Output in NՕm - CT XXDA Double-Acting Pneumatic Module at Specified bar Supply Pressures Module2.7 bar3.5 bar4.2 bar4.8 bar5.5 bar6.2 bar6.9 bar CT100 1620.524.628.1323640 CT200 31404855647280...

Open the catalog to page 5

CINTAC Advanced Automaton System (English) - 6

CT650LD89 Not available on CT100 Stop ScrewType ACT100-300Stop ScrewType BCT400-650L Min.Approx.L Max.Approx. > 100% Travel Stop Lengths >

Open the catalog to page 6

CINTAC Advanced Automaton System (English) - 8

Pneumatic Valve Specifications Valve DesignPilot operated spool valve Pilot Operator Options Solenoid Coil or Piezo > 1 Configuration Single Pilot5-way,2 position spring return Dual PilotShuttle piston,5-way,2 postion F low Rating0.75 Cv (Kv - 0.64) Porting1/4NPT Operating Pressure40 to 120 psi (2.7 to 7.5 bar) Filtration Requirements40 micron (Piezo,30 micron) Operating Temperature > 2 See pilot specifications below Operating Life1 million cycles Manual OverrideInternal momentary Material of Construction SpoolNickel Plated Aluminum BodyEpoxy coated anodized aluminum > End Caps &...

Open the catalog to page 8

CINTAC Advanced Automaton System (English) - 9

SST Switching Sensors (33) Configuration Open and Closed Settings Switches correspond to a particular valve position and are set using the push button panel on the module's sealed membrane pad. Simply operate the pneumatic module to the open position (using standard manual override) and push the "Set Open" button. Operate the pneumatic module to the closed position and push the "Set Closed" button.Position settings remain locked in when power is removed and reapplied. > A130-1ENCINTAC ADVANCED AUTOMATION SYSTEMREV.9/07 DeviceNet (92) Configuration > Open &Closed Inputs(1)4-20 mA Auxiliary...

Open the catalog to page 9

CINTAC Advanced Automaton System (English) - 10

Reduce plant down time and cut maintenance costs withAS-Interface diagnostics. The Communication and Control Module 96Ӕfeatures optionalon-board diagnostic systems which may predict potential automated valve malfunctions.As a result,plant down time may be reduced by repairing discrete automated valveswhich,when called upon to operate,would have failed to do so.And,should problems occur during normal operation, maintenance personnel will be aided in rapidly locating failure causes,thus reducing maintenance time and speeding valve repair and operation renewal. Diagnostic Alerts &...

Open the catalog to page 10

CINTAC Advanced Automaton System (English) - 11

Materials of Construction Housing & Mounting ManifoldEpoxy coated anodized aluminum Cover & Visual Indicator Lexan > polycarbonate Fasteners & Mounting AdaptorsStainless Steel Pneumatic ValveSee Pneumatic Valve Specifications on page 8 Temperature Ratings (pneumatic valve dependent) Piezo Pilots-10΋ to 60ڋ C (14ڋ to 140ڋF)Solenoid Pilots-20ڋ to 65ڋ C (-4ڋ to 150ڋF) > Special solenoid pilot -40ڋ to 80ڋC (-40ڋ to 176ڋF) available.Please confult factory. Position Sensor System AccuracyWithin 1ڋ RepeatabilityWithin 1ڋ Setting Buffer2ڋ from set point ( > Rotational distance fromoriginal set...
