MERLO SPA

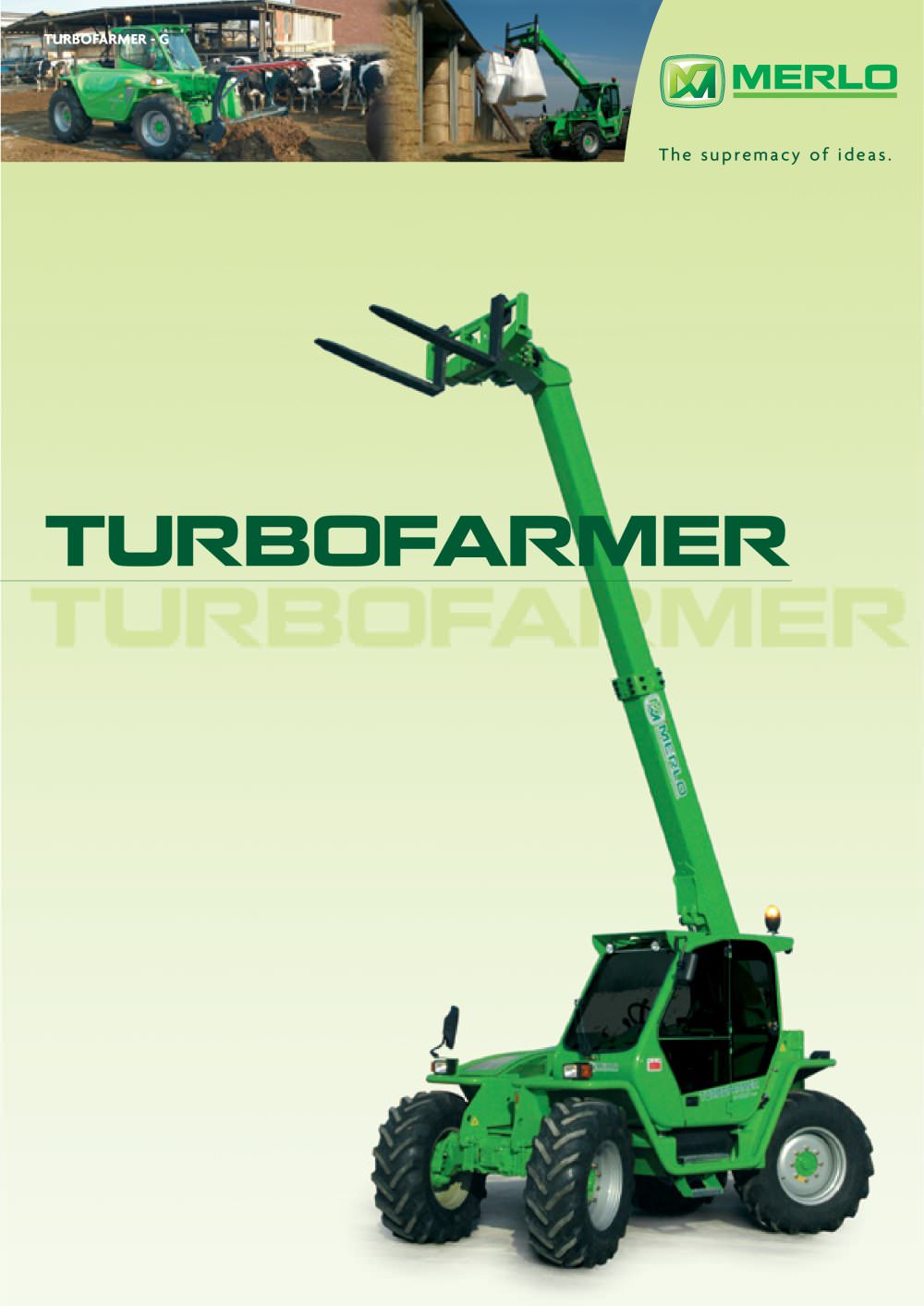

Turbofarmer / P 34.7 PLUS

Turbofarmer / P 34.7 PLUS

Product catalog summary

Overview
The TURBOFARMER range by Merlo represents a blend of advanced technology and innovation in farm handlers, designed for various agricultural applications. It includes 16 models with lifting capacities ranging from 3400 to 4100 kg, addressing diverse handling needs in agriculture.

Specifications

Engine: Equipped with a 4-cylinder turbo Euro 2 engine, offering up to 140HP with aftercooling.
Hydraulic System: Features a 'Load-Sensing' hydraulic system with a 'Flow-Sharing' valve block for enhanced performance.
Transmission: Utilizes an electronically controlled hydrostatic transmission, achieving speeds up to 40kph.
Suspension: Options include BSS boom suspension or EAS active front axle suspension.
Cabin: Spacious design with 360° visibility, ergonomic controls, and optional air conditioning.

Key Features

Versatility: Quick attachment interchangeability with the 'Tac-Lock' hydraulic locking system.
Safety: Longitudinal stability control mechanism that locks the boom when stability limits are approached.
Comfort: Features the widest handler cab available, with adjustable seats and controls.
Efficiency: 'Load-Sensing' hydraulic pump reduces energy wastage and fuel consumption.

Innovations

Side-Mounted Engine: Improves visibility, stability, and service access.
Boom Sideshift: Unique Merlo feature for precise load placement without repositioning the machine.
Frame Levelling: Ensures vertical lift on uneven surfaces by hydraulically tilting the chassis.

Performance

Towing Capacity: Capable of towing up to 21 tonnes, homologated as farm tractors in Europe.
Steering Modes: Includes front wheel, all wheel, and crab steer modes for enhanced maneuverability.
Braking System: Four-wheel braking with independent hydraulic circuits and optional trailer braking systems.

Conclusion
The TURBOFARMER range is engineered for high productivity, safety, and comfort in demanding farm environments. Its advanced features and robust design make it a competitive choice for modern agricultural operations.

Additional Details

Construction: The telescopic boom is made from U-shaped steel fabrications for durability, with enclosed hydraulic and electrical components for protection.
Performance and Features: Includes a rigid front axle with sideshift/levelling capabilities, hydrostatic transmission with continuous speed variation, and a four-wheel drive system.
Safety and Comfort: Safety features include disk brakes on all wheels, differential locking, and a robust braking system. Comfort options include air conditioning, a pneumatic seat, and a comprehensive lighting system.
Dimensions and Options: Detailed dimensions for each model are provided, along with options such as differential locks, additional lighting, and manual or automatic battery isolators.
Company Philosophy: Merlo emphasizes innovation, quality, and customer satisfaction, highlighting its integrated production process and focus on training and after-sales service.
