Catalog excerpts

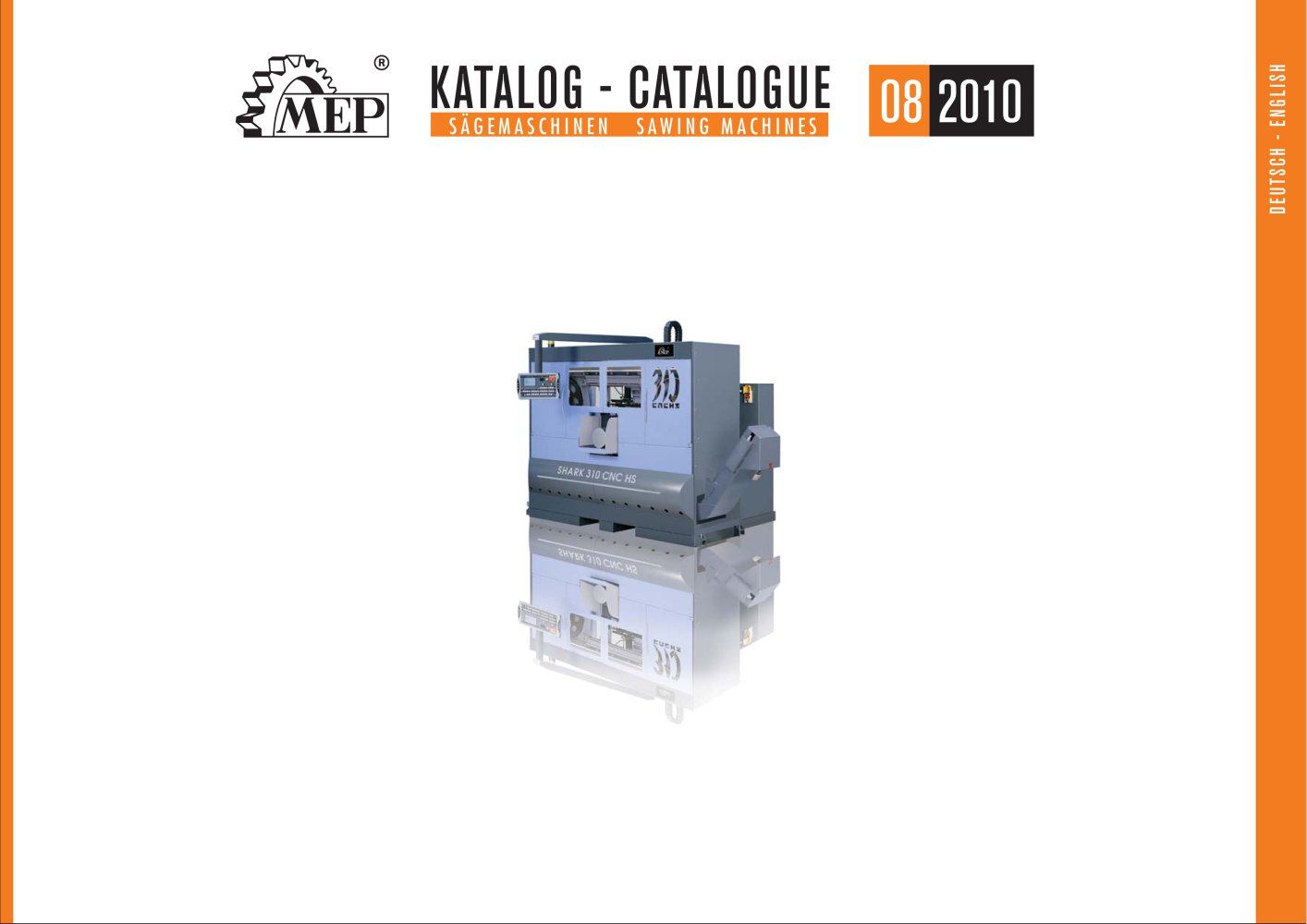

Catalogue MEP - 1

D E UTSCH - E NG L I S H KATALOG - CATALOGUE 08 2010 S Ä G E M A S C H I N E N S A W I N G M A C H I N E S

Open the catalog to page 1
Catalogue MEP - 4

HYD-MECH INC. (USA) MEP SPA Pergola (PU) ITALY www.mepsaws.com HYD-MECH Woodstock Ontario CANADA - www.HYDMECH.com MEP (SUZHOU) CO. LTD (P.R. CHINA) - World leader in the manufacture of standard and special execution band saws for the metal cutting. - More than 70 different models in our catalogue among horizontal band saws, with swing-head or on linear guides, pivot arm or vertical column cold saws for the cut of ferrous and non-ferrous material. - More than 10.000 saws delivered yearly. - 4 manufacturing facilities located in three different continents to meet quickly and efficiently...

Open the catalog to page 4
Catalogue MEP - 5

(USA) HYD-MECH LTD (CANADA) MEP SPA (ITALY) MEP (SUZHOU) CO. LTD (P.R. CHINA) 03 • Israele • Kuwait • Libano • Libia • Malesia • Marocco • Messico • Norvegia • Nuova Zelenda • Olanda • Polonia • Portogallo • Qatar • Rep. Ceca • Russia • San Marino • Saudi Arabia • Singapore • Slovenia • Spagna • Sud Africa • Svezia • Svizzera • Taiwan • Tailandia • Tunisia • U.A.E. • Ucraina • Ungheria • USA • Venezuela PRODUKTIONSSTÄTTEN - MANUFACTURING FACILITIES GROSSHÄNDLER - DISTRIBUTION NETWORK

Open the catalog to page 5
Catalogue MEP - 6

EN 349 (1993) + A1 (2008) EN 953 (1997) KÜRZLICH IST EINE NEUE NORM VERÖFFENTLICHT WORDEN UND IN KRAFT GETRETEN: EN 13898:2003 Werkzeugmaschinen - Sicherheit Sägemaschinen mit denen Metall kalt geschnitten wird, wurde auf italienischem Levell 2007 veröffentlicht FÜR VERÄNDERUNGEN HAT DIES FÜR MEP-MASCHINEN GEBRACHT? Vegleich zu den schon geltenden Vorschriften, schreibt die neue Vorschrift eine Steigerung Sicherheitsniveau vor, und zwar in Bezug auf die Arbeitsbereiche und die Ladeund Entladebereiche (siehe angelegtes Schema) wo zusätzliche Risiken für den Arbeiter auftreten. neuen...

Open the catalog to page 6
Catalogue MEP - 7

05 • EN ISO 13857 (2008), art. 4.2.2 • EN 349 (1993) + A1 (2008) • EN 953 (1997) KÜRZLICH IST EINE NEUE NORM VERÖFFENTLICHT WORDEN UND IN KRAFT GETRETEN: • EN 13898:2003 – Werkzeugmaschinen - Sicherheit Sägemaschinen mit denen Metall kalt geschnitten wird, wurde auf italienischem Levell 2007 veröffentlicht WAS FÜR VERÄNDERUNGEN HAT DIES FÜR MEP-MASCHINEN GEBRACHT? Im Vegleich zu den schon geltenden Vorschriften, schreibt die neue Vorschrift eine Steigerung des Sicherheitsniveau vor, und zwar in Bezug auf die Arbeitsbereiche und die Ladeund Entladebereiche (siehe angelegtes Schema) wo...

Open the catalog to page 7
Catalogue MEP - 8

4 6 4 7 4 8 4 9 3 8 4 0 4 2 4 4 5 6 5 7 5 0 5 2 5 4 T I G E R 3 5 2 / M A T I G E R 3 5 2 S X evo T I G E R 3 5 2 N C e v o T I G E R 3 7 2 S X e v o W I L L Y 2 2 5 F A L C O N 2 5 0 F A L C O N 2 7 5 F A L C O N 3 5 2 /MA C O B R A 3 5 2 C O B R A 3 5 2 S X e v o C O B R A 3 5 2 N C e v o S M V 3 0 0 0 S M V 3 0 0 0 P R O SMV 3000 Halbautomatischer Sägezyklus cutting mode SEMI-AUTOMATIC Manueller Sägezyklus cutting mode MANUAL Vollautomatischer Sägezyklus cutting mode AUTOMATIC Halbautomatischer dynamischer Sägezyklus cutting mode SEMI-AUTOMATIC DYNAMIC - Metallkappsägen - pivot sawing...

Open the catalog to page 8
Catalogue MEP - 9

C B 6 0 0 1 S B A 4 0 0 0 07 CB - Lademagazin - loading magazine - Zubehöre - accessories - Le foto pubblicate in questo catalogo potrebbero comprendere dei particolari non di serie - Le foto pubblicate in questo catalogo potrebbero comprendere dei particolari non di serie

Open the catalog to page 9
Catalogue MEP - 10

PH 211-1/261-1 PH 211-1/261-1 1510 645 211/1 165 760 1300 PH211/1 kg 190 0° 45° 60° 200 mm 70 70 70x70 180 180 200x150 115 110 125x110 n. 02,04,25,26,91 identifizierbarer elektrischer Verkabelung, Stand-By, abschließbarem Hauptschalter mit Türverriegelung, Kurzschlussschutz, Motorschutzschalter mit thermomagnetischem Auslöser, Unterspannungsauslöser, Niederspannungsanlage 24 Volt). - Schaltgriff IP55. - Das NEUE Antriebsrad ist mit einem Spannsatz auf der Welle befestigt und gewährleistet eine kraftschlüssige Verbindung von Welle und Nabe sowie eine mögliche Axialeinstellung. - NEUE...

Open the catalog to page 10
Catalogue MEP - 11

1HB/261-1HB PH 261-1/HB 09 network 1700 715 261/1 1700 890 1520 PH261/1 kg 240 90 90 90x90 225 200 240x160 160 140 155x115 0° 45° 60° 2450x27x0,9 245 mm mm 0,70/0,81 46/92 kw m/min 3 1 2 0 n. 02,04,27,28,92 - Driving pulley locked with clamp ring to ensure a strong fastening, still allowing axial adjustment. - Blade-guide heads with 6 CARBIDE pads instead of bearings to ensure a better stability. - Stop strokes at 0° and 60° on the left with lever for locking at any intermediate angle. - Head articulation with preloaded tapered bearings. - Vice with fast locking lever. - Stand with...

Open the catalog to page 11
Catalogue MEP - 12

SHARK 281/281CCS SHARK 281/281CCS 800 1880 281 1650 1000 1700 SH 281 kg 370 0° 45° 60° 120 110 110x110 250 230 280x200 190 180 180x180 n. 02,03,04,08,10,12,15,92 SHARK 281, manual band sawing machine to cut from 0° to 60° left. The vice on the pneumatic versions (MA) opens and closes by means of a manually operated valve (or by means of a footpedal which is instead optional). A FEW FEATURES: - Electric panel (wiring totally identifiable, standby, loose-key safety switch, main switch, pole change switch, emergency stop, motor magnetothermal overload, minimum tension coil, protection against...

Open the catalog to page 12
Catalogue MEP - 13

281/281CCS SHARK 281CCS 11 network 800 1880 281 1650 1000 1700 SH 281 kg 370 0° 45° 60° 2950x27x0,9 285 mm mm 120 110 110x110 250 230 280x200 190 180 180x180 1,5/1,8 36/72 kw m/min 3 1 2 0 n. 02,03,04,10,12,15,92 - The CUT CONTROL SYSTEM (CCS) can be retrofitted on machines out in the field. SHARK 281 CCS (Cut Control System) manual bandsawing machine to cut from 0° up to 60° left. Other than the manual cut mode, the sawing machine can make single cuts without operator, using the head weight controlled by a hydraulic brake: after the cut the band stops. The frame at this point is manually...

Open the catalog to page 13
