Polarizing microscopes
2Pages

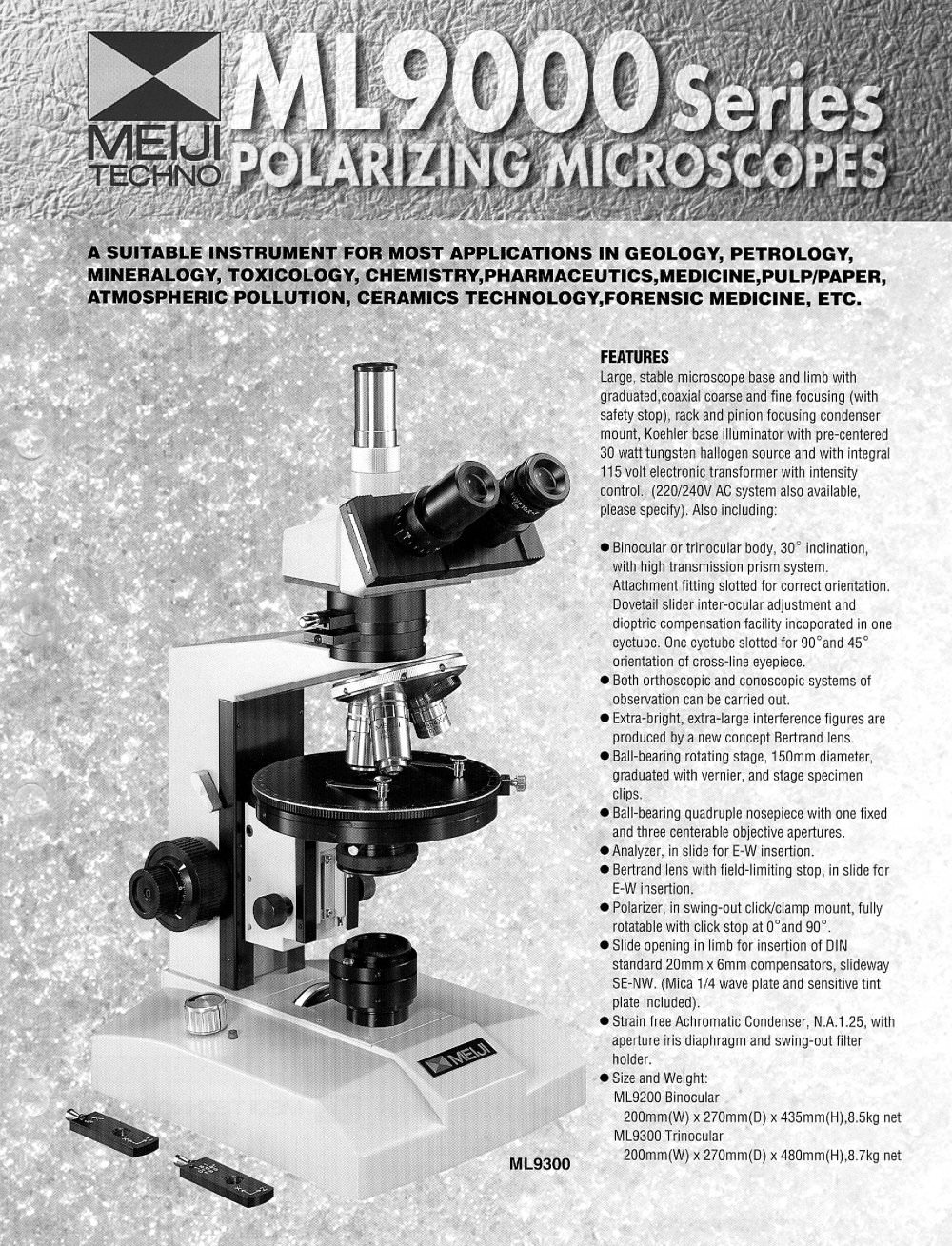

A SUITABLE INSTRUMENT FOR MOST APPLICATIONS IN GEOLOGY, PETROLOGY, MINERALOGY, TOXICOLOGY, CHEMISTRY,PHARMACEUTICS,MEDICINE,PULP/PAPER, ATMOSPHERIC POLLUTION, CERAMICS TECHNOLOGY,FORENSIC MEDICINE, ETC. Large, stable microscope base and limb with graduated,coaxial coarse and fine focusing (with safety stop), rack and pinion focusing condenser mount, Koehler base illuminator with pre-centered 30 watt tungsten hallogen source and with integral 115 volt electronic transformer with intensity control. (220/240V AC system also available, please specify). Also including: • Binocular or trinocular body, 30° inclination, with high transmission prism system. Attachment fitting slotted for correct orientation. Dovetail slider inter-ocular adjustment and dioptric compensation facility incoporated in one eyetube. One eyetube slotted for 90°and 45° orientation of cross-line eyepiece. • Both orthoscopic and conoscopic systems of • Extra-bright, extra-large interference figures are produced by a new concept Bertrand lens. • Ball-bearing rotating stage, 150mm diameter, graduated with vernier, and stage specimen • Ball-bearing quadruple nosepiece with one fixed and three centerable objective apertures. • Analyzer, in slide for E-W insertion. • Bertrand lens with field-limiting stop, in slide for • Polarizer, in swing-out click/clamp mount, fully rotatable with click stop at 0°and 90°. • Slide opening in limb for insertion of DIN standard 20mm x 6mm compensators, slideway SE-NW. (Mica 1/4 wave plate and sensitive tint plate included). • Strain free Achromatic Condenser, M.A.I .25, with aperture iris diaphragm and swing-out filter

COMPONENTS & ACCESSORIES (ML9OOO series) (Photographs of rock thin sections taken with ML9300 Trinocular polarizing microscope. OPTIONAL MICROSCOPE BODIES MA647 Binocular head 30° inclination. One eyetube slotted for orientation of cross-line eyepiece, MA648 Trinocular head-as described above, but with 80%/20% beam-splitter and vertical photo tube, (included in MA649 Monocular head, 30° inclination. Eyetube slotted for orientation of cross-line eyepiece. MICROSCOPE OBJECTIVES (DIN, strain free, lenses 20X and over are supplied in retractable mounts) MA406 10X wide field (f.o.v. #18), high...
