Introduction
Medigus has launched the world's smallest video camera, a 1.2mm CMOS camera designed for single-use and reusable endoscopic applications. This camera is notable for its high performance, low cost, and excellent sensitivity and resolution, making it suitable for medical diagnostics and therapeutic markets where larger cameras are impractical.
Key Features
  • Disposable camera head, eliminating costly sterilization processes.
  • Bio-compatible components for medical device applications.
  • Potential to introduce new procedures in confined areas of the human body.
Specifications
  • Model: IntroSpicioTM 120
  • Components: 1.2mm camera head with optics and video processor unit
  • Image Device: CMOS with 49,280 effective pixels
  • Resolution: 220H x 224V
  • Video Outputs: NTSC, PAL, VGA
  • System Functions: Gain, White Balance, Automatic Gain Control, Red/Blue Enhancement, Brightness
  • Power Supply: AC100-240V 50/60Hz
  • Field of View: 100° or 130°
  • Dimensions: Camera head - 1.2mm diameter, 5mm length; Cable - up to 3 meters; Processor box - 300mm x 70mm x 250mm
Applications
The camera is suitable for various medical fields including gastroenterology, bronchoscopy, cardiovascular, ENT, urology, orthopedics, and NOTES (Natural Orifice Trans-luminal Endoscopic Surgery).
Contact Information
Medigus, Omer Industrial Park, Building 7A, POB 3030, Omer, Israel, 84965. Tel: 972-8-6466880, Fax: 972-8-6466770. Email: [email protected]
See more

Catalog excerpts

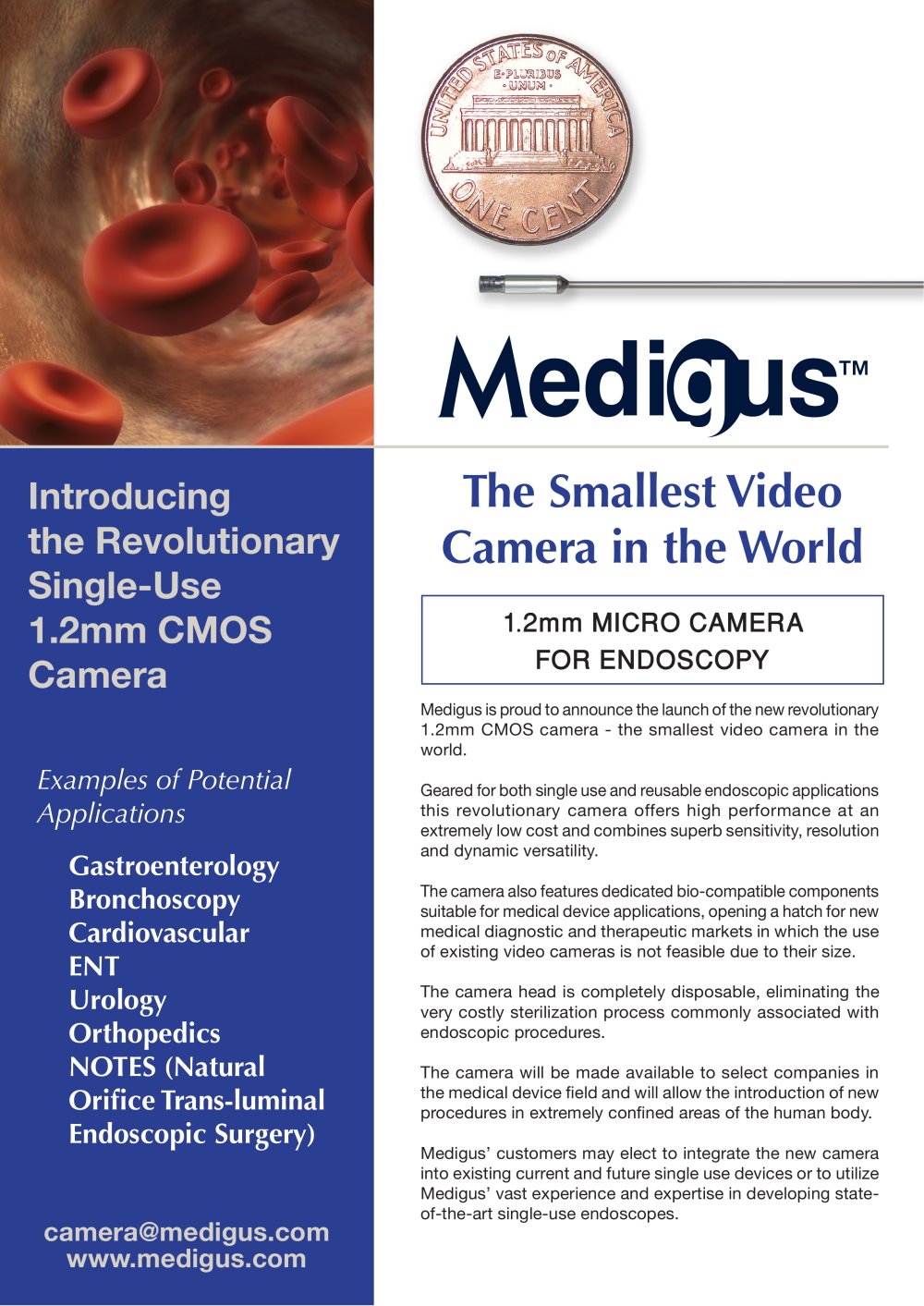

1.2mm CMOS Camera - Product Sheet-1

NOTES (Natural Orifice Trans-luminal Endoscopic Surgery) Medigus is proud to announce the launch of the new revolutionary 1.2mm CMOS camera - the smallest video camera in the Geared for both single use and reusable endoscopic applications this revolutionary camera offers high performance at an extremely low cost and combines superb sensitivity, resolution The camera also features dedicated bio-compatible components suitable for medical device applications, opening a hatch for new medical diagnostic and therapeutic markets in which the use of existing video cameras is not feasible due to their size. The camera head is completely disposable, eliminating the very costly sterilization process commonly associated with endoscopic procedures. The camera will be made available to select companies in the medical device field and will allow the introduction of new procedures in extremely confined areas of the human body. Medigus' customers may elect to integrate the new camera into existing current and future single use devices or to utilize Medigus' vast experience and expertise in developing state- of-the-art single-use endoscopes.

 Open the catalog to page 1
1.2mm CMOS Camera - Product Sheet-2

Omer Industrial Park, Building 7 A, POB 3030, Omer, Israel, 84965, Tel: 972-8-6466880, Fax: 972-8-6466770 \Aww.medigus.com E-mail: [email protected]

 Open the catalog to page 2
