- stencil printers S20
stencil printers S20
stencil printers S20
- Frame Size: Maximum 550 x 470 mm, with rapid tensioning frame (4-fold). Other frame types may be accepted.
- PCB Size: Maximum 400 x 375 mm.
- Printing Area: Maximum 350 x 340 mm.
- Squeegee Guiding: Linear guides with manual drive. Features a manual reversible dual squeegee with universal holders for metal or rubber blades. Squeegee inclination is adjustable from 0 to 60°, and contact pressure from 0 to 200 N.
- Printing Capabilities: Suitable for single or double-sided boards.
- Table Lowering: Automatic table lowering with a Z-axis range of 10 mm. Lowering speed is adjustable from 0.2 to 4 mm/s, with table contact pressure adjustable from 0 to 450 N.
- Table Adjustment: X, Y adjustments of +/- 12 mm and theta adjustment of +/- 2.7°. Off-contact (Z-axis) range is 0 to 24 mm, with adjustment accuracy of +/- 0.01 mm.
- Supply: Requires compressed air at 6 bar.
- Dimensions and Weight: 860 x 650 x 380 mm, weighing 75 kg.
- Designed for low to middle volume production.
- Suitable for screen or stencil printing of glue, solder paste, or other substances.
- Qualified for fine pitch components with a minimum pad pitch of 0.4 mm.
Catalog excerpts

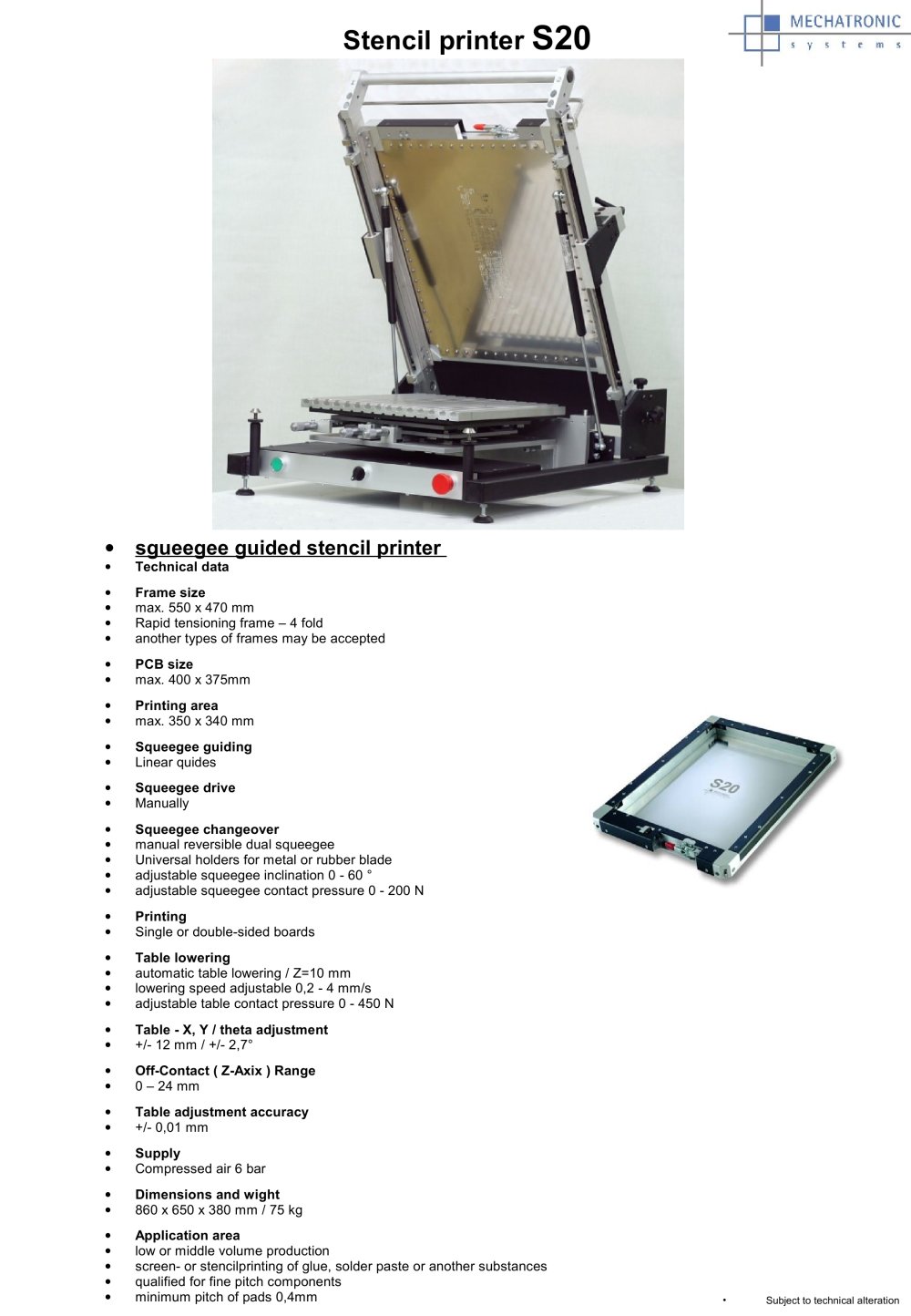

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:15.00pt "Arial", sans-serif; } .font4 { font:20.00pt "Arial", sans-serif; } Stencil printer S20 squeeqee quided stencil printer Technical data Frame size max. 550 x 470 mm Rapid tensioning frame - 4 fold another types of frames may be accepted PCB size max. 400 x 375mm Printinq area max. 350 x 340 mm Squeeqee quidinq Linearquides Squeeqee drive Manually Squeeqee chanqeover manual reversible dual squeegee Universal holders for metal or rubber blade adjustable squeegee inclination 0 - 60 ° adjustable squeegee contact pressure 0 - 200 N Printinq Single or double-sided boards Table lowerinq automatic table lowering / Z=10 mm lowering speed adjustable 0,2 - 4 mm/s adjustable table contact pressure 0 - 450 N Table -X, Y / theta adjustment +/-12mm/+/-2,7° Off-Contact ( Z-Axix ) Ranqe 0 - 24 mm Table adjustment accuracy +/- 0,01 mm Supply Compressed air6bar Dimensions and wiqht . 860x650x380 mm/75kg Application area low or middle volume production screen- or stencilprinting of glue, solder paste or another substances qualified for fine pitch components minimum pitch of pads 0,4mm Subject to technical alteration
