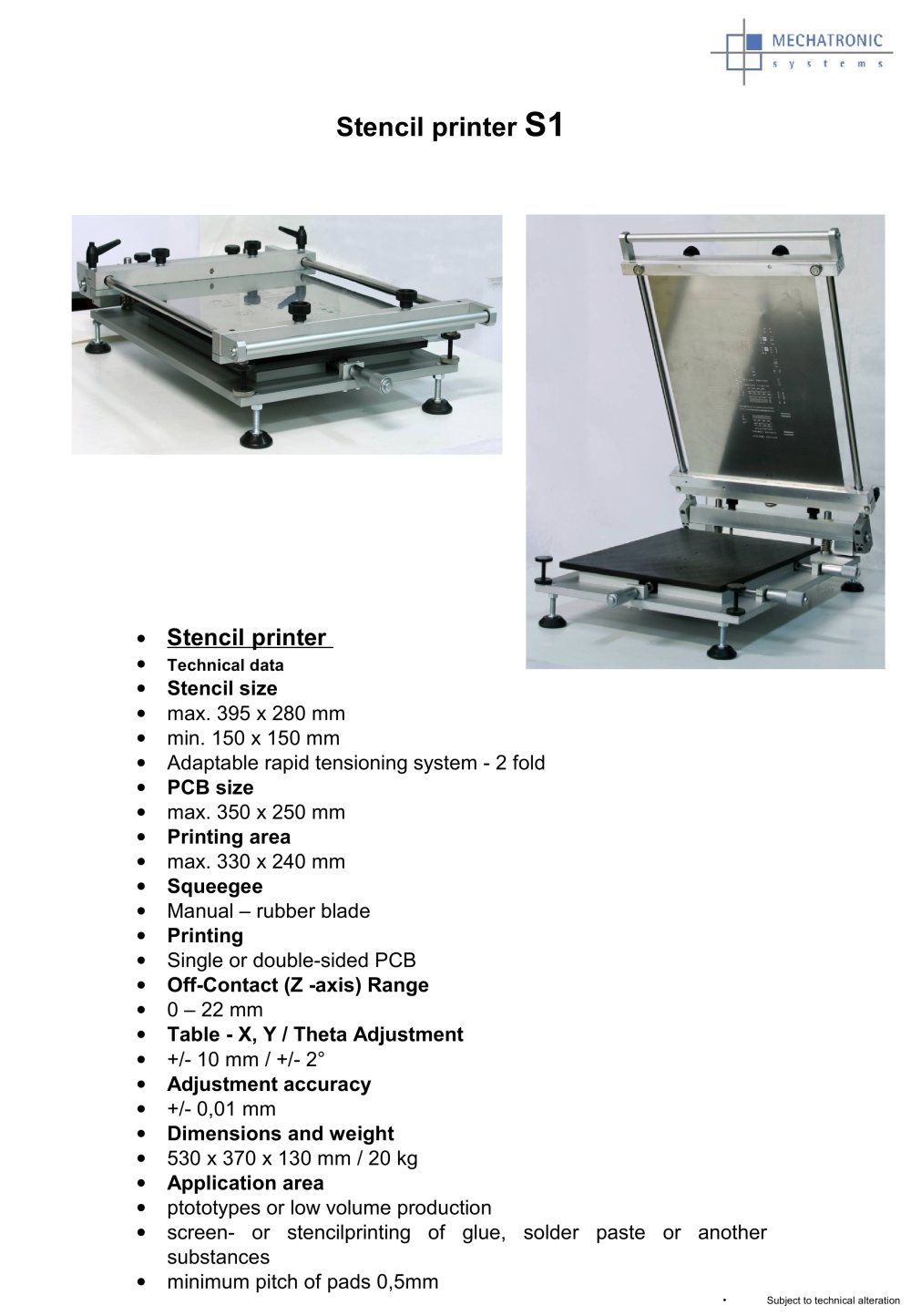

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:20.00pt "Arial", sans-serif; } StencilprinterSI Stencil printer Technical data Stencil size max. 395 x 280 mm min. 150x150 mm Adaptable rapid tensioning System - 2 fold PCB size max. 350 x 250 mm Printing area max. 330 x 240 mm Squeegee Manual - rubber blade Printing Single or double-sided PCB Off-Contact (Z -axis) Range 0-22mm Table - X, Y / Theta Adjustment +/-10 mm/+/-2° Adjustment accuracy +/- 0,01 mm Dimensions and weight 530x370x130 mm/20 kg Application area ptototypes or low volume production screen- or stencilprinting of glue, solder paste or another substances minimum pitch of pads 0,5mm Subject to technical alteration
