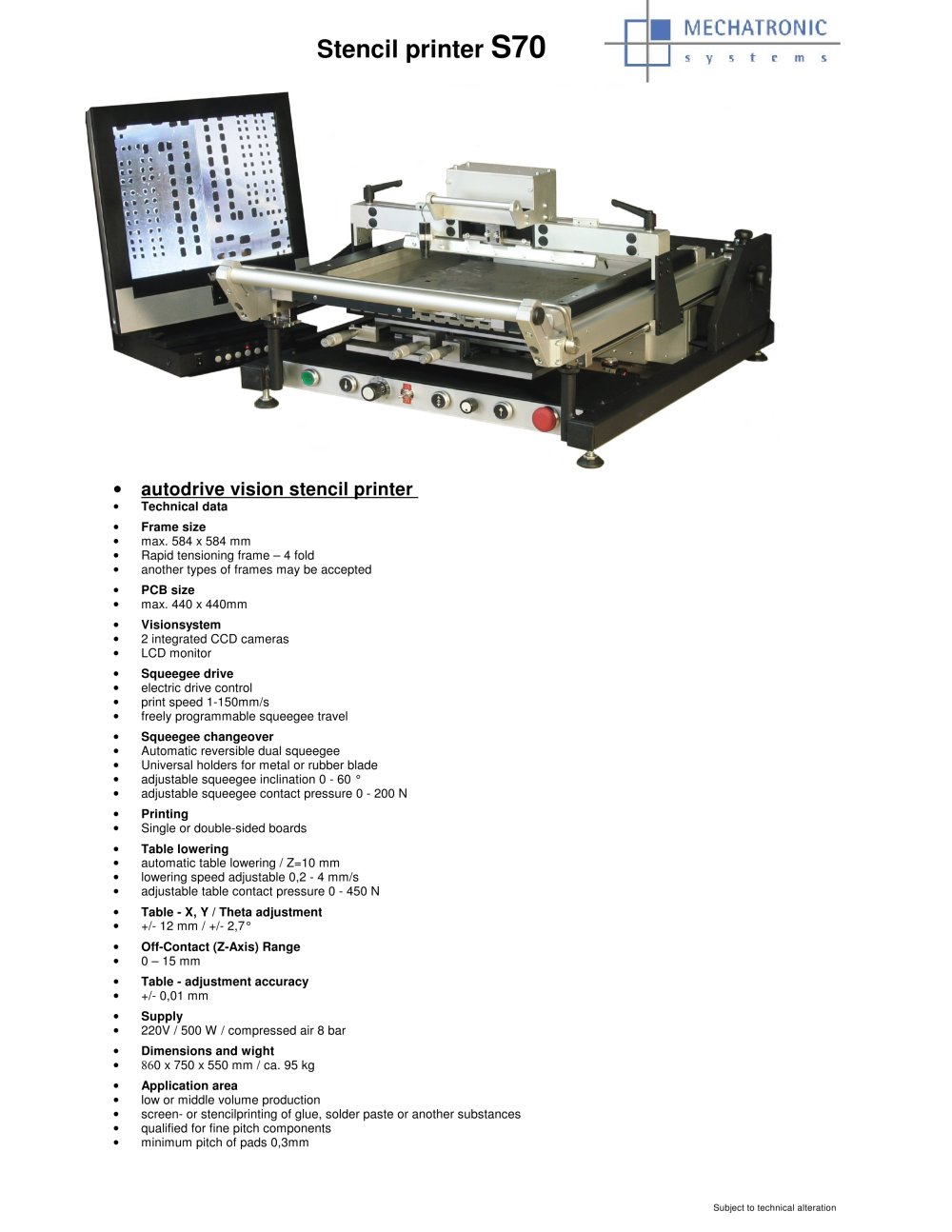

S70 autodrive vision stencil printer - 1

Stencil printer S70 Subject to technical alteration • autodrive vision stencil printer • Technical data • Frame size • max. 584 x 584 mm • Rapid tensioning frame – 4 fold • another types of frames may be accepted • PCB size • max. 440 x 440mm • Visionsystem • 2 integrated CCD cameras • LCD monitor • Squeegee drive • electric drive control • print speed 1-150mm/s • freely programmable squeegee travel • Squeegee changeover • Automatic reversible dual squeegee • Universal holders for metal or rubber blade • adjustable squeegee inclination 0 - 60 ° • adjustable squeegee contact pressure 0 - 200 N • Printing • Single or double-sided boards • Table lowering • automatic table lowering / Z=10 mm • lowering speed adjustable 0,2 - 4 mm/s • adjustable table contact pressure 0 - 450 N • Table - X, Y / Theta adjustment • +/- 12 mm / +/- 2,7° • Off-Contact (Z-Axis) Range • 0 – 15 mm • Table - adjustment accuracy • +/- 0,01 mm • Supply • 220V / 500 W / compressed air 8 bar • Dimensions and wight • 860 x 750 x 550 mm / ca. 95 kg • Application area • low or middle volume production • screen- or stencilprinting of glue, solder paste or another substances • qualified for fine pitch components • minimum pitch of pads 0,3mm
