R460 full-convektion reflow oven
Product catalog summary
Reflow Oven R460 Overview
This document provides technical specifications for the Reflow Oven R460, a lead-free compatible reflow oven designed for PCB soldering.
Specifications
- PCB Width: Maximum of 460 mm
- Clearance for Assemblies: Up to 25 mm
- Heating Zones: 7 microprocessor-controlled zones
- Process Chamber Length: 2400 mm
- Heat Distribution: Forced air convection
- Soldering Temperatures: Range from 180 to 300 ºC
- Conveyor: Stainless steel spring wires conveyor belt
- Conveyor Speed: Adjustable from 10 to 120 cm/min
- Heat-up Time: Approximately 30 minutes
- Optional Feature: Stand
- Rated Power: Maximum of 15000 W
- Power Supply: 380 VAC
- Dimensions and Weight: 3400 x 1020 x 1400 mm, approximately 380 kg
Additional Information
The specifications are subject to technical alterations.
See more
Catalog excerpts

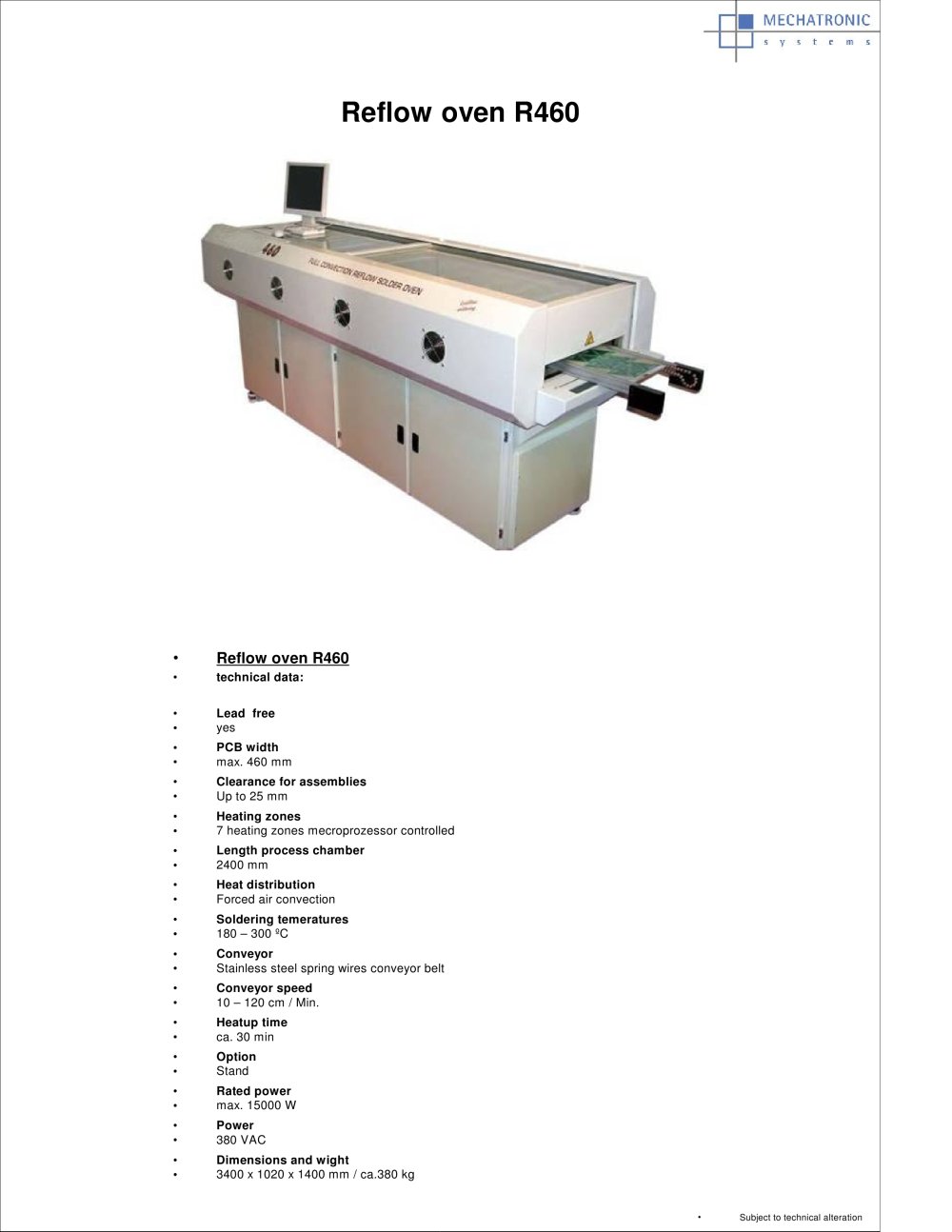

Reflow oven R460 • Reflow oven R460 • technical data: • Lead free • yes • PCB width • max. 460 mm • Clearance for assemblies • Up to 25 mm • Heating zones • 7 heating zones mecroprozessor controlled • Length process chamber • 2400 mm • Heat distribution • Forced air convection • Soldering temeratures • 180 – 300 ºC • Conveyor • Stainless steel spring wires conveyor belt • Conveyor speed • 10 – 120 cm / Min. • Heatup time • ca. 30 min • Option • Stand • Rated power • max. 15000 W • Power • 380 VAC • Dimensions and wight • 3400 x 1020 x 1400 mm / ca.380 kg • Subject to technical alteration
