P1 SMT automatic pick & placer
P1 SMT automatic pick & placer
- PCB Placement Area: Maximum of 400 x 500mm.
- Component Range: From 0201 to 30x30mm with a minimum pitch of 0.4mm.
- Component Packing: Supports tapes, sticks, trays, and bulk.
- Component Centering: Utilizes non-contact alignment.
- Placement Rate: Up to 600 components per hour (cph).
- Feeder Capacity: Up to 80 x 8mm strips feeder and 2 x (300 x 200mm) IC-tray with 200 x 300mm PCB size.
- Resolution: X/Y Axis - 0.008mm, Z Axis - 0.020mm, Rotation - 0.01°.
- Placement Accuracy: +/- 0.03mm.
- Dimensions and Weight: 840 x 630 x 430 mm, approximately 75 kg.
- Power Supply: 230 V - 50 Hz - 450 W / 0.6 Mpa - 15 l/min.
- Precision automatic SMT pick and place machine with optical alignment system.
- Automatic pick & place head with automatic nozzle changer (6 tools).
- Camera system for automatic fiducial and touchless component centering.
- CAD editor for pick & place files compatible with all CADs.
- Vision inspection for solder paste printing accuracy and component placement accuracy.
- Remote service capability via the internet.
- Control panel includes a PC keyboard and mouse with a graphical user interface.
- Suitable for prototypes and low volume production.
- Capable of handling standard and fine pitch components including SOIC, PLCC, BGA, µBGA, CSP, QFN, and LEDs.
Catalog excerpts

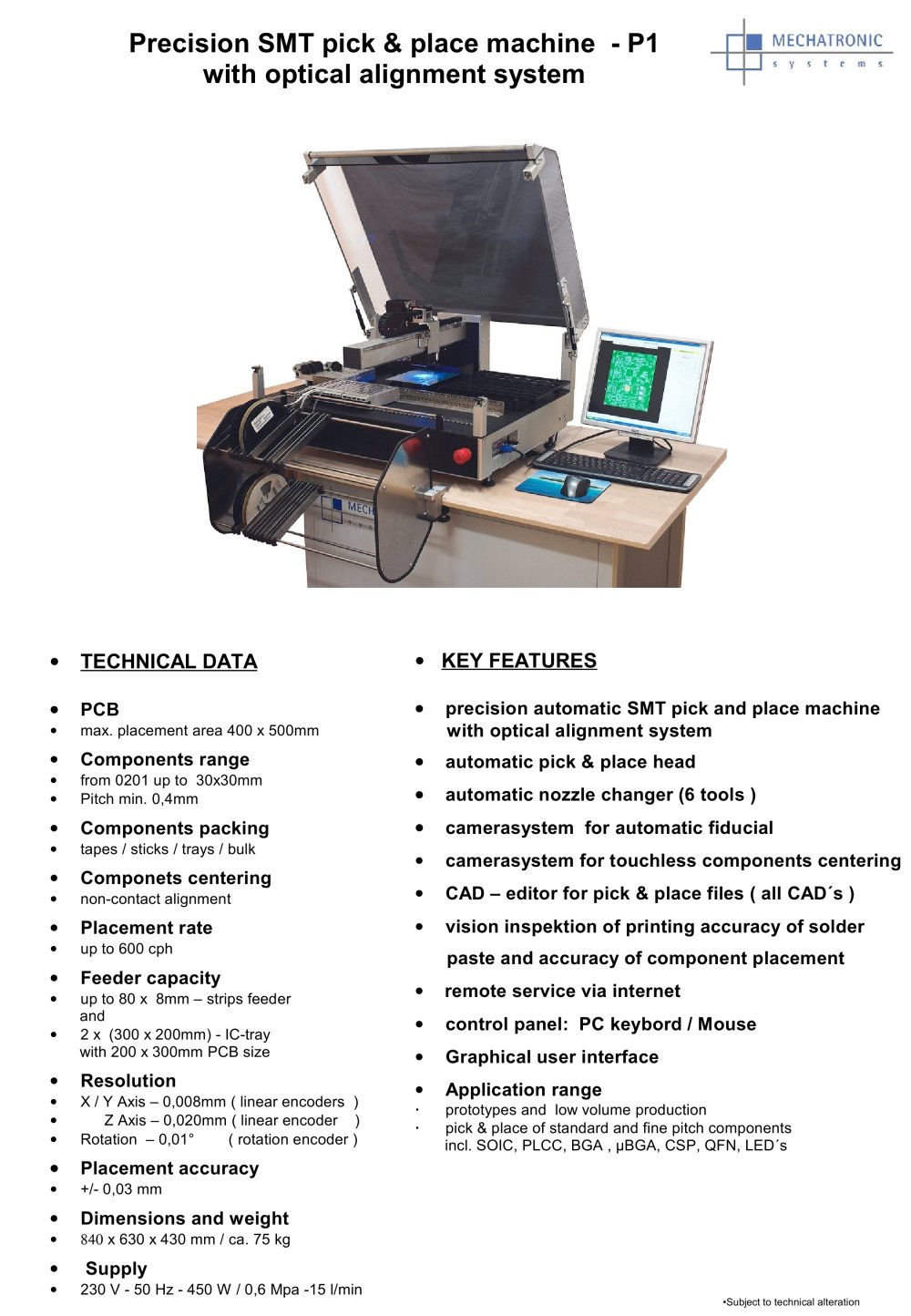

Precision SMT pick & place machine - P1 with optical alignment system •Subject to technical alteration · TECHNICAL DATA · PCB · max. placement area 400 x 500mm · Components range · from 0201 up to 30x30mm · Pitch min. 0,4mm · Components packing · tapes / sticks / trays / bulk · Componets centering · non-contact alignment · Placement rate · up to 600 cph · Feeder capacity · up to 80 x 8mm – strips feeder and · 2 x (300 x 200mm) - IC-tray with 200 x 300mm PCB size · Resolution · X / Y Axis – 0,008mm ( linear encoders ) · Z Axis – 0,020mm ( linear encoder ) · Rotation – 0,01° ( rotation encoder ) · Placement accuracy · +/- 0,03 mm · Dimensions and weight · 840 x 630 x 430 mm / ca. 75 kg · Supply · 230 V - 50 Hz - 450 W / 0,6 Mpa -15 l/min · KEY FEATURES · precision automatic SMT pick and place machine with optical alignment system · automatic pick & place head · automatic nozzle changer (6 tools ) · camerasystem for automatic fiducial · camerasystem for touchless components centering · CAD – editor for pick & place files ( all CAD´s ) · vision inspektion of printing accuracy of solder paste and accuracy of component placement · remote service via internet · control panel: PC keybord / Mouse · Graphical user interface · Application range · prototypes and low volume production · pick & place of standard and fine pitch components incl. SOIC, PLCC, BGA , ìBGA, CSP, QFN, LED´s
