M1 SMD manipulator
1 / 1 PageView full catalog

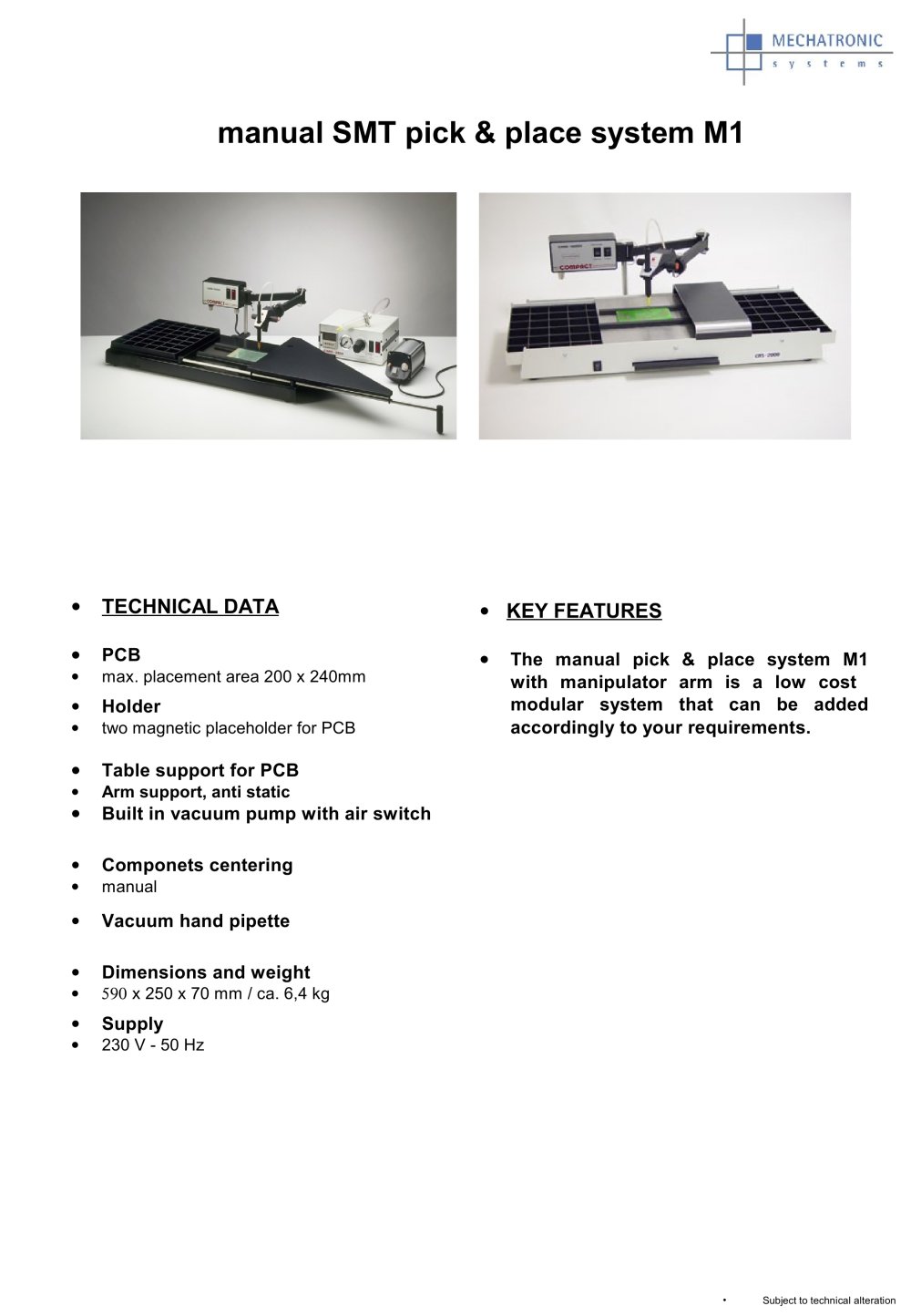

M1 SMD manipulator
Product catalog summary
Technical Data
- PCB: Maximum placement area of 200 x 240 mm.
- Holder: Equipped with two magnetic placeholders for PCB and table support.
- Arm Support: Anti-static feature included.
- Vacuum System: Built-in vacuum pump with air switch and manual vacuum hand pipette.
- Dimensions and Weight: 590 x 250 x 70 mm, approximately 6.4 kg.
- Power Supply: 230 V - 50 Hz.
Key Features
- The M1 manual pick & place system is a cost-effective, modular system with a manipulator arm that can be customized to meet specific requirements.
