D10 automatic dispensing system
D10 automatic dispensing system
- PCB Dispensing Area: Maximum of 400 x 500 mm
- Dispensing Rate: Up to 8000 dots per hour
- Dispense Valve: Operates with air pressure
- Height Measurement: Contactless dispensing
- Resolution: X/Y Axis - 0.003 mm
- Positioning Accuracy: +/- 0.03 mm
- Dimensions and Weight: 840 x 630 x 430 mm, approximately 75 kg
- Power Supply: 230 V, 50 Hz, 350 W, 0.6 Mpa, 15 l/min
- Desktop SMT automatic dispensing machine
- Optical calibration of dispensing needle
- Camera system for automatic fiducial recognition
- CAD editor for creating dispensing programs
- Teach-in mode for ease of use
- Image processing system
- Operating System: Windows XP
- Control Panel: PC keyboard and mouse
- User Interface: PC with 19” LCD monitor
- Suitable for prototypes and low volume production
Catalog excerpts

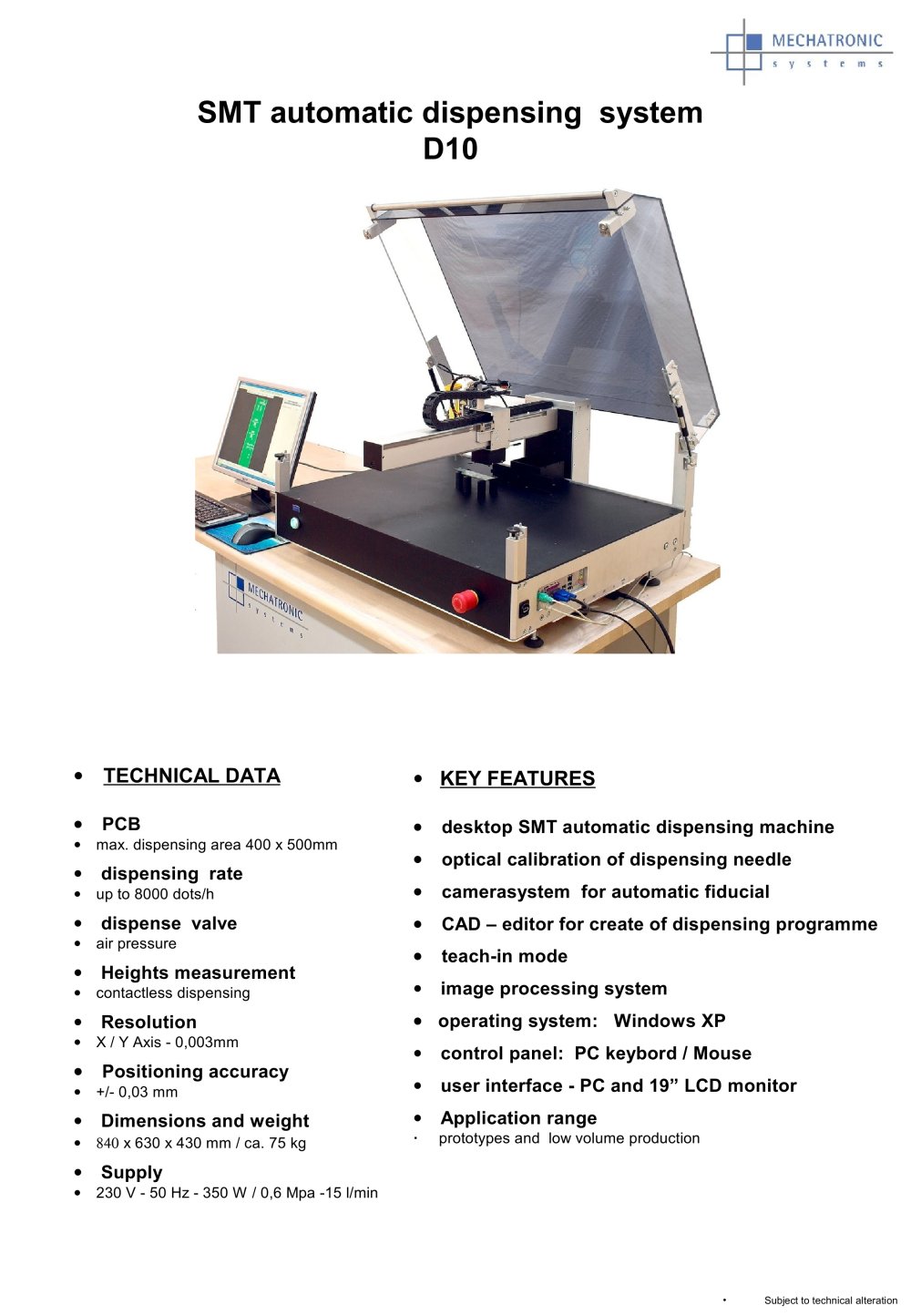

SMT automatic dispensing system D10 • Subject to technical alteration · TECHNICAL DATA · PCB · max. dispensing area 400 x 500mm · dispensing rate · up to 8000 dots/h · dispense valve · air pressure · Heights measurement · contactless dispensing · Resolution · X / Y Axis - 0,003mm · Positioning accuracy · +/- 0,03 mm · Dimensions and weight · 840 x 630 x 430 mm / ca. 75 kg · Supply · 230 V - 50 Hz - 350 W / 0,6 Mpa -15 l/min · KEY FEATURES · desktop SMT automatic dispensing machine · optical calibration of dispensing needle · camerasystem for automatic fiducial · CAD – editor for create of dispensing programme · teach-in mode · image processing system · operating system: Windows XP · control panel: PC keybord / Mouse · user interface - PC and 19” LCD monitor · Application range · prototypes and low volume production
