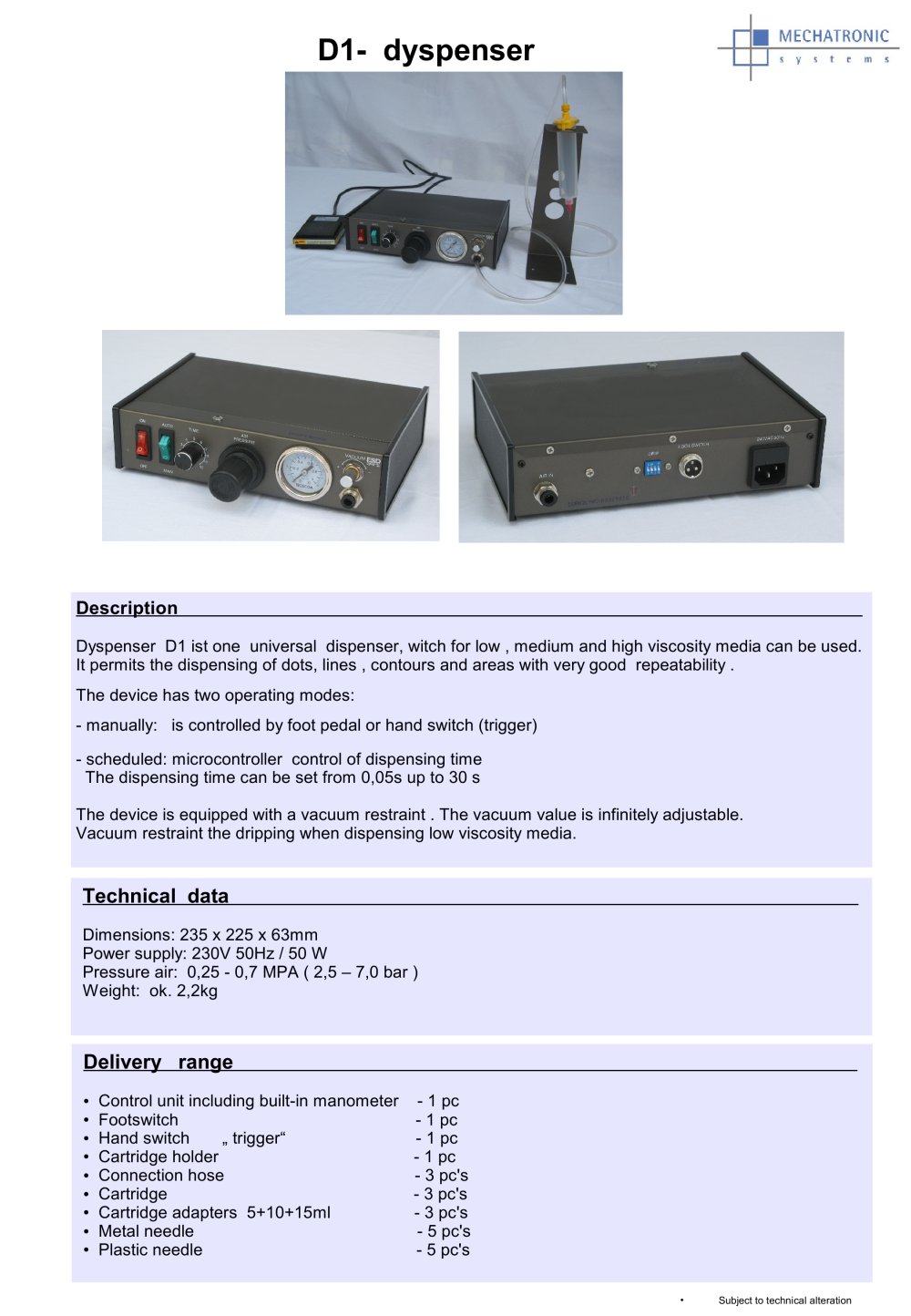

D1- dyspenser • Subject to technical alteration Technical data Dimensions: 235 x 225 x 63mm Power supply: 230V 50Hz / 50 W Pressure air: 0,25 - 0,7 MPA ( 2,5 – 7,0 bar ) Weight: ok. 2,2kg Description Dyspenser D1 ist one universal dispenser, witch for low , medium and high viscosity media can be used. It permits the dispensing of dots, lines , contours and areas with very good repeatability . The device has two operating modes: - manually: is controlled by foot pedal or hand switch (trigger) - scheduled: microcontroller control of dispensing time The dispensing time can be set from 0,05s up to 30 s The device is equipped with a vacuum restraint . The vacuum value is infinitely adjustable. Vacuum restraint the dripping when dispensing low viscosity media. Delivery range œ Control unit including built-in manometer - 1 pc œ Footswitch - 1 pc œ Hand switch „ trigger“ - 1 pc œ Cartridge holder - 1 pc œ Connection hose - 3 pc's œ Cartridge - 3 pc's œ Cartridge adapters 5+10+15ml - 3 pc's œ Metal needle - 5 pc's œ Plastic needle - 5 pc's
