Product catalog summary

Specifications:
1. Storage Racks: Designed for static storage of drums, these racks have dimensions of height 4500mm, depth 1000mm, and width 60mm. They can store two PT-3 drum pallets per level, with a maximum load capacity of 600 kg per section and 2000 kg per level. The racks are available in red RAL3000 color.
2. PT-13 Pallets: Made of steel plate with cataphoresis painting, these pallets are suitable for handling and storing drums with diameters from 600 to 1250 mm, adhering to safety standards against capsizing.
3. Cable Drum Tipper: This device features an electro-hydraulic powered tip mechanism with a painted steel frame and oleodynamic cylinder rotation. It has a tip time of 40 seconds and a capacity of 2000 kg for drums with a diameter of 1600 mm.

Procedures:
1. Automatic Work Platforms: These machines automate the cable handling process, integrating functions such as loading, dereeling, measuring, cutting, and strapping. Two versions are available: electronic stretching control for delicate cables and pneumatic stretching control. The platforms can handle reels with a cable length of 300m in 3 minutes and coils of 50m in 2.2 minutes, with a working speed of 500m/min.

Recommendations:
1. Ensure the load is evenly distributed across the storage racks to prevent overloading.
2. Regular maintenance of the electro-hydraulic systems in the cable drum tipper is recommended for efficient operation.

Key Data from Tables:
1. Detailed specifications for various models of automatic work platforms and storage racks are provided, including dimensions, weight capacities, and operational speeds.
2. The LINAP series offers different models with varying dimensions and capacities, suitable for different operational needs.

Overview: The document provides detailed technical specifications and descriptions of various semi-automatic high-speed winding and unwinding systems, primarily used for cable management. These systems are designed to enhance efficiency and performance in industrial settings.

Main Sections:

Specifications: The document outlines the capabilities of different models, such as LINAP-30, LINAP-40, LINAP-60, and others. Key specifications include load capacities ranging from 3 to 60 tons, performance improvements of up to 50% over basic machines, and features like automatic layering and compressed air tension control.
Procedures: The systems are described as having fully automated winding cycles controlled by PLCs, with remote control options for cable management. The document also details the use of mobile unwinders on rails and platforms for reel support.
Components and Features: Features include self-locking nylon wheels, manual pump oleodynamic lifting, and electronic variable speed control. The systems are equipped with measuring devices for cable accuracy and offer various optional components for customization.
Norms and Recommendations: The document suggests that these machines are suitable for a wide range of cable handling needs, emphasizing their adaptability to different cable sizes and work volumes. It also highlights the benefits of combining vertical storage with these winding systems for space and labor optimization.

Key Data from Tables: The tables provide detailed measurements and capacities for each model, including dimensions, weight, maximum and minimum reel sizes, and power requirements. For example, the BOB-MAT/M model features a maximum speed of 70 rpm and a carrying capacity of up to 600 kg.

Conclusion: The document serves as a comprehensive guide for selecting and utilizing semi-automatic winding and unwinding systems, offering insights into their technical capabilities, operational procedures, and potential for customization to meet specific industrial needs.

Catalog excerpts

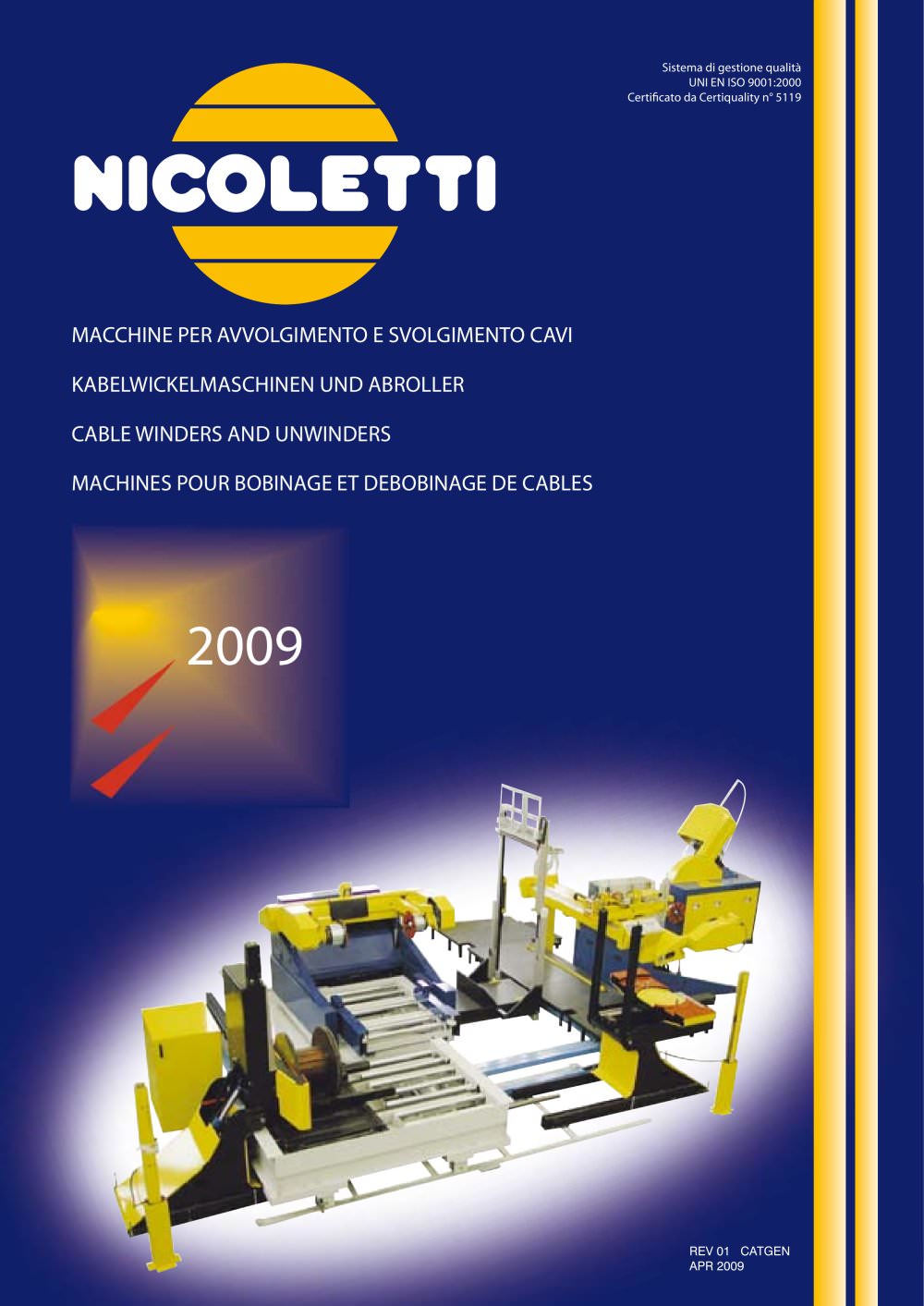

CABLE WINDERS AND UNWINDERS MACCHINE PER AVVOLGIMENTO E SVOLGIMENTO CAVI KABELWICKELMASCHINEN UND ABROLLER MACHINES POUR BOBINAGE ET DEBOBINAGE DE CABLES 2009 Sistema di gestione qualità UNI EN ISO 9001:2000 Certificato da Certiquality n° 5119 REV 01 CATGEN APR 2009

Open the catalog to page 1

Rastrelliere serie pesante (portata 100 q. per montante) per magazzinaggio bobine di diametro superiore a 1600 fino a max. 2600, e di peso superiore a kg. 2500 fino a kg. 5000. Drum rack “heavy” type, to store drums with diameter bigger than 1600 up to max. 2600 mm and weight over 2500 kg up to max. 5000 kg. C. capacity 10 tons each vertical side. Rack modele “lourd” pour stocker des tourets diamètre supérieur à 1600 mm jusque max. 2600 mm et poids supérieur à 2500 kg jusque max. 5000 kg. Capacité 10 tons chaque montant. Abtrommelgestell für Trommeln mit mehr als 1600 mm bis maximal 2600 mm Durchmesser,...

Open the catalog to page 2

2 ART. Ingombro Overall Dimensions Encombrement Abmessungen Ingombro Overall Dimensions Encombrement Abmessungen Peso Weight Poids A A Gewicht B larg. lungh. A max. B max. KG B H FCB-1 1 400 11 60 500 1 45 54 1 30 ART. Ingombro Overall Dimensions Encombrement Abmessungen Ingombro Overall Dimensions Encombrement Abmessungen Peso Weight Poids A Gewicht B A B H A max. B max. KG SCB6-8 950 1 55 275 1 45 54 21x2 II magazzinaggio in verticale delle bobine di cavo permette un notevo le risparmio dello spazio da destinare a tali operazioni, rispetto ai sistemi tradizionali a pavimento. I rapporti di...

Open the catalog to page 3

Magazzino realizzato presso: Fogliani S.p.a. (Varese) Warehouse executed at: Magasin réalisé chez: Kabellager durchgeführt bei: Magazzino realizzato presso: Elfin S.p.a. (Brescia) Warehouse executed at: Magasin réalisé chez: Kabellager durchgeführt bei:

Open the catalog to page 6

Magazzino realizzato presso: Warehouse executed at: Magasin réalisé chez: Kabellager durchgeführt bei: Comoli Ferrari & C. S.p.a. (Novara)

Open the catalog to page 7

RS60-45 Rastreliera paletti zzata Caratteristiche: Adatta per lo stivaggio statico delle bobine; • Altezza montante: 4500 mm. Profondità 1000 mm. spessore 60; • Possibilità di posizionare n. 2 portapallets PT-13 ogni vano.; • Larghezza del vano 1800 mm.; • Colori standard: rosso RAL3000 / blù; • max. carico 6100 kg. (uniformemente distribuito per campata); • Portata max. per piano kg. 2.000. Altre soluzioni in altezza portata e Ø bobine su richiesta. Palleti zeD drum rack Features: suitable for the static drums storage; • Vertical side 4500mm high, 1000mm deep, 60mm wide; • possibility to store...

Open the catalog to page 8

RI/16/20 RIBALTATORE PER BOBINE Caratteristiche: Centralina ribaltamento elettroidraulica. Costruzione telaio in lamiera di acciaio verniciato a forno, rotazione tramite cilindro oleodinamico, ciclo di ribaltamento 40 secondi. Portata max Kg 2000 bobine Ø1600. CABLE DRUM TIPPER Features: electro-hydraulic powered tip device. Oven-backed painted steel frame, thrusting by oleodynamic cylinder, tip time 40 secs. Capacity 2000 kgs for drums 1600 mm Ø. BASCULATEUR Caractéristiques: moteur électrohydraulique. Châssis en tôle d’acier vernie à feu, rotation par cylindre oleo-dynamique, temps de renversement...

Open the catalog to page 9

AUTOMAT 300 CENTRI DI LAVORO AUTOMATICI AUTOMATIC WORK PLATFORMS PLATEFORMES DE TRAVAIL AUTOMATIQUES AUTOMATEN Queste macchine sono nate per dare una risposta al nostro settore sempre più orientato verso l’esigenza di automatizzare l’intero processo di prelievo del cavo in matassa o bobina data la necessità di centralizzare questi processi. I centri di lavoro integrano cinque funzioni in automatico: caricamento , svolgimento , misurazione, taglio, legatura matassa, espulsione. Queste macchine si dividono in due categorie: serie E) a tesatura elettronica, serie A) a tesatura con aria compressa;...

Open the catalog to page 10

10 Pinze Automatiche automatic grippers Pinces automatiques Autom. Spannzangen Velocità Max Lavoro Max. work speed Vitesse maxi. travail Max. Arbeitsgeschwindigkeit Legatura Automatica Automatic strapping Ligature automatique Autom. Ringbindung Misuratore cavo Cable measuring head Métreuse à câble Kabelmessgerät Precisione misura Accuracy Dégré de précision Messgenauigkeit Matasse Coils Couronnes Ringe Stratificazione Automatica Automatic cable layering Trancannage automatique Autom. Kabelverlegung N° stadi polmone Conveyor Capacity Capacité Convoyeur Kapazität Rollebahn Nocciolo Fisso Interno...

Open the catalog to page 11

11 LINAP-30/LINAP-40/LINAP-60/LINAP-100 ART. Ingombro Overall Dimension Encombrement Abmessung Peso Weight Poids Gewicht Bobine Reels Tourets Trommel N°Giri max Avv./Svolg. Max rpm winding/ unwinding Tours/min. maxi. enroulem./déroulem. Max. U/Min. Auf/Abwicklung Aria Compressa Compresed-air Air comprimé Druckluft Potenza Tot Total Power Puissance totale Gesamtleistung Tesatura Aria Compressa pneumatic stretching control Contrôle pneumatique tirage Zugspannungskontrolle pneumatisch Velocità Max Lavoro Max. work speed Vitesse maxi. travail Max. Arbeitsgeschwindigkeit Lungh. Length. Longueur Länge...

Open the catalog to page 12

12 Misuratore cavo Cable measuring head Métreuse à câble Kabelmessgerät Precisione misura Accuracy Dégré de précision Messgenauigkeit Matasse Coils Couronnes Ringe Stratificazione Automatica Automatic cable layering Trancannage automatique Autom. Kabelverlegung Nocciolo Fisso Interno Inside fixed dia. Noyau interne fixe Innendurchmesser Kern Ø Est. max mm Larghezze Fisse Fixed widths Largeurs fixes Feste Breiten Min. Max % max mm mm mm mm mm 4 60 ±0.4 320 420 520 890 120 240 X 4 60 ±0.4 320 420 520 890 120 240 X 4 100 ±0.4 320 420 520 890 120 240 X 4 100 ±0.4 320 420 520 890 120 240 X LINAP -...

Open the catalog to page 13

13 TECNOLOGIE DI AVVOLGIMENTO E SVOLGIMENTO - WINDING AND UNWINDING TECHNOLOGIES - TECNOLOGIES ENROULEMENT-DÉROULEMENT - AUF-UND ABWICKELTECHNOLOGIEN MACCHINE AVVOLGITRICI WINDERS BOBINEUSES WICKELMASCHINEN Le nostre macchine avvolgitrici carrellate (delle quali si vedono i modelli su questocatalogo) sono costruite per soddisfare le più svariate esigenze di prelievo misurazione e taglio del cavo e in modo particolare per lavorare sulle nostre rastrelliere; si dividono in due gruppi: - CARRELLATE: solo esclusivamente ma tassatrici. - CARRELLATE BIFUNZIONALI: per prelievo su bobine (bobinatura)...

Open the catalog to page 14
