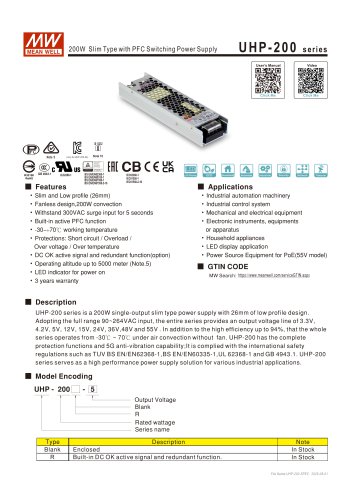

UHP-200 series

1 / 6 PagesView full catalog

UHP-200 series

Product catalog summary

Applications

Industrial automation machinery
Industrial control systems
Mechanical and electrical equipment
Electronic instruments and apparatus
Household appliances
LED display applications
Power Source Equipment for PoE (55V model)

Description

The UHP-200 series is a 200W single-output slim type power supply with a low profile design of 26mm. It supports a full range input of 90~264VAC and provides output voltages of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, 48V, and 55V. The series operates with high efficiency up to 94% and can function in temperatures from -30℃ to 70℃ without a fan, using air convection. It includes complete protection functions and 5G anti-vibration capability, complying with international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL 62368-1, and GB 4943.1.

Model Encoding

The model encoding includes rated wattage, series name, and type (Blank for standard, R for redundant).

Features

Slim and low profile (26mm)
Fanless design, 200W convection
Withstands 300VAC surge input for 5 seconds
Built-in active PFC function
Operating temperature range: -30~+70℃
Protections: Short circuit, Overload, Over voltage, Over temperature
DC OK active signal and redundant function (optional)
Operating altitude up to 5000 meters
LED indicator for power on
3 years warranty

Specifications

Input Voltage Range: 90 ~ 264VAC / 127 ~ 370VDC
Frequency Range: 47 ~ 63Hz
Power Factor: 0.94/230VAC, 0.98/115VAC at full load
Efficiency: Up to 94%
Working Temperature: -30 ~ +70℃
Storage Temperature: -40 ~ +85℃
MTBF: 2472.1 K hrs min. (Telcordia SR-332)
Dimensions: 194*55*26mm

Protection

Overload: Hiccup mode, recovers automatically after fault condition is removed
Over voltage: Shut down O/P voltage, re-power on to recover
Over temperature: Shut down O/P voltage or Hiccup mode, recovers automatically after temperature goes down

Safety and EMC

Compliance to BS EN/EN55032, GB17625.1, GB/T 9254.1, Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3
Withstand Voltage: I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.25KVAC
Isolation Resistance: 100M Ohms/500VDC/25℃/ 70%RH

Installation

The UHP-200 series should be installed onto an aluminum plate or cabinet of the same size to meet the derating curve and static characteristics. The aluminum plate must have an even and smooth surface or be coated with thermal grease.

Catalog excerpts

200W Slim Type with PFC Switching Power Supply series Video IS 13252 THOMAS SAMUEL THOMAS SAMUEL Note 10 Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000   ■  ‧ ‧ ‧ ‧ ‧-~+℃  ‧  ‧ ‧ ‧ ‧ ■  ‧ ‧ ‧ ‧ 

Open the catalog to page 1

200W Slim Type with PFC Switching Power Supply U H P -2 0 0 series SPECIFICATION MODEL

Open the catalog to page 2

AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE WITHOUT ALUMINUM PLATE(C)

Open the catalog to page 3

|MEANWE^ 200W Slim Type with PFC Switching Power Supply U H P -2 0 0 series ■ STATIC CHARACTERISTIC ■ Function Manual1.DC_OK Signal DC_OK is a collector shorted signal. It is used by an optocoupler in the power supply which indicates the output status of the power supply as exhibited below. 2.Redundant function (1) UHP-200R is built-in redundant function and can be connected 2 units in parallel . (2) When in parallel operation the maximum load should not be greater than the rated power of any PSU.

Open the catalog to page 4

|MEANWE^ 200W Slim Type with PFC Switching Power Supply U H P -2 0 0 series Mechanical Specification CASE NO.:249B

Open the catalog to page 5

200W Slim Type with PFC Switching Power Supply Installation 1.Operate with additional aluminum plate In order to meet the“Derating Curve”and the “Static Characteristics” ,UHP-200 series must be installed onto an aluminum plate(or the cabinet of the same size) on the bottom.The size of the suggested aluminum plate is shown as below. And for optimizing thermal performance, the aluminum plate must have an even and smooth surface (or coated with thermal grease), and UHP-200 series must be firmly mounted at the center of the aluminum plate.

Open the catalog to page 6
