Pneumatic indexing table
1 / 1 PageView full catalog
Pneumatic indexing table
Product catalog summary

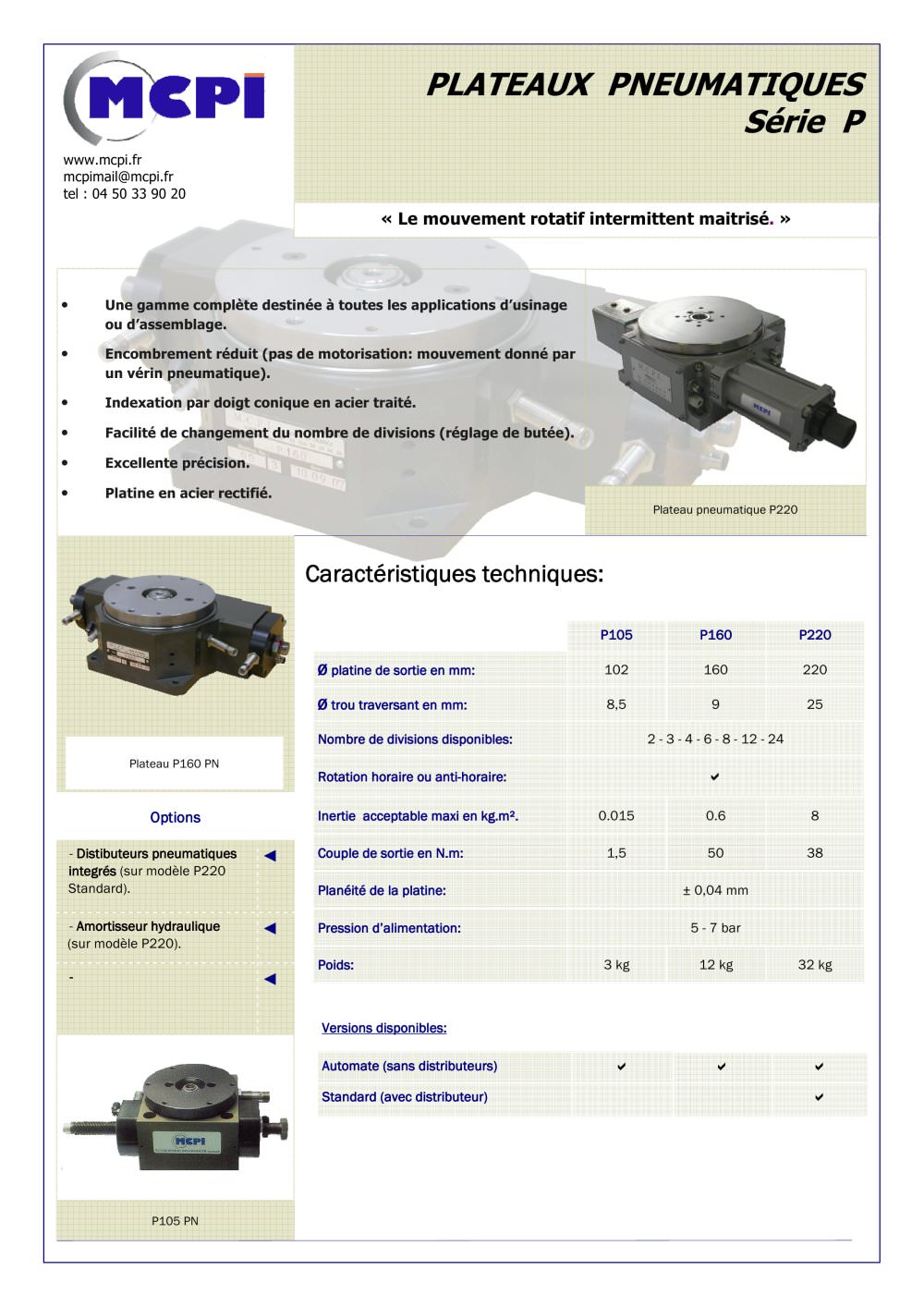

Overview:
This document provides details on a comprehensive range of products designed for machining or assembly applications. The products feature a compact design with movement provided by a pneumatic cylinder, eliminating the need for motorization. Key features include steel-treated conical finger indexing, easy adjustment of division numbers, excellent precision, and a ground steel plate.
This document provides details on a comprehensive range of products designed for machining or assembly applications. The products feature a compact design with movement provided by a pneumatic cylinder, eliminating the need for motorization. Key features include steel-treated conical finger indexing, easy adjustment of division numbers, excellent precision, and a ground steel plate.
Technical Specifications:
- Available Versions: Year 1, No. 1
- Integrated pneumatic distributors (on P220 Standard model)
- Hydraulic damper (on P220 model)
Pneumatic Plates Series P:
"Controlled intermittent rotary motion."
"Controlled intermittent rotary motion."
- Models: P105, P160, P220
- Output plate diameter (mm): 102, 160, 220
- Through-hole diameter (mm): 8.5, 9, 25
- Available divisions: 2, 3, 4, 6, 8, 12, 24
- Clockwise or counter-clockwise rotation
- Maximum acceptable inertia (kg.m²): 0.015, 0.6, 8
- Output torque (N.m): 1.5, 50, 38
- Plate flatness: ± 0.04 mm
- Supply pressure: 5 - 7 bar
- Weight: 3 kg, 12 kg, 32 kg
Product Options:
- P105 PN
- P160 PN
- Automate (without distributors)
- Standard (with distributor)
- Pneumatic plate P220
See more
