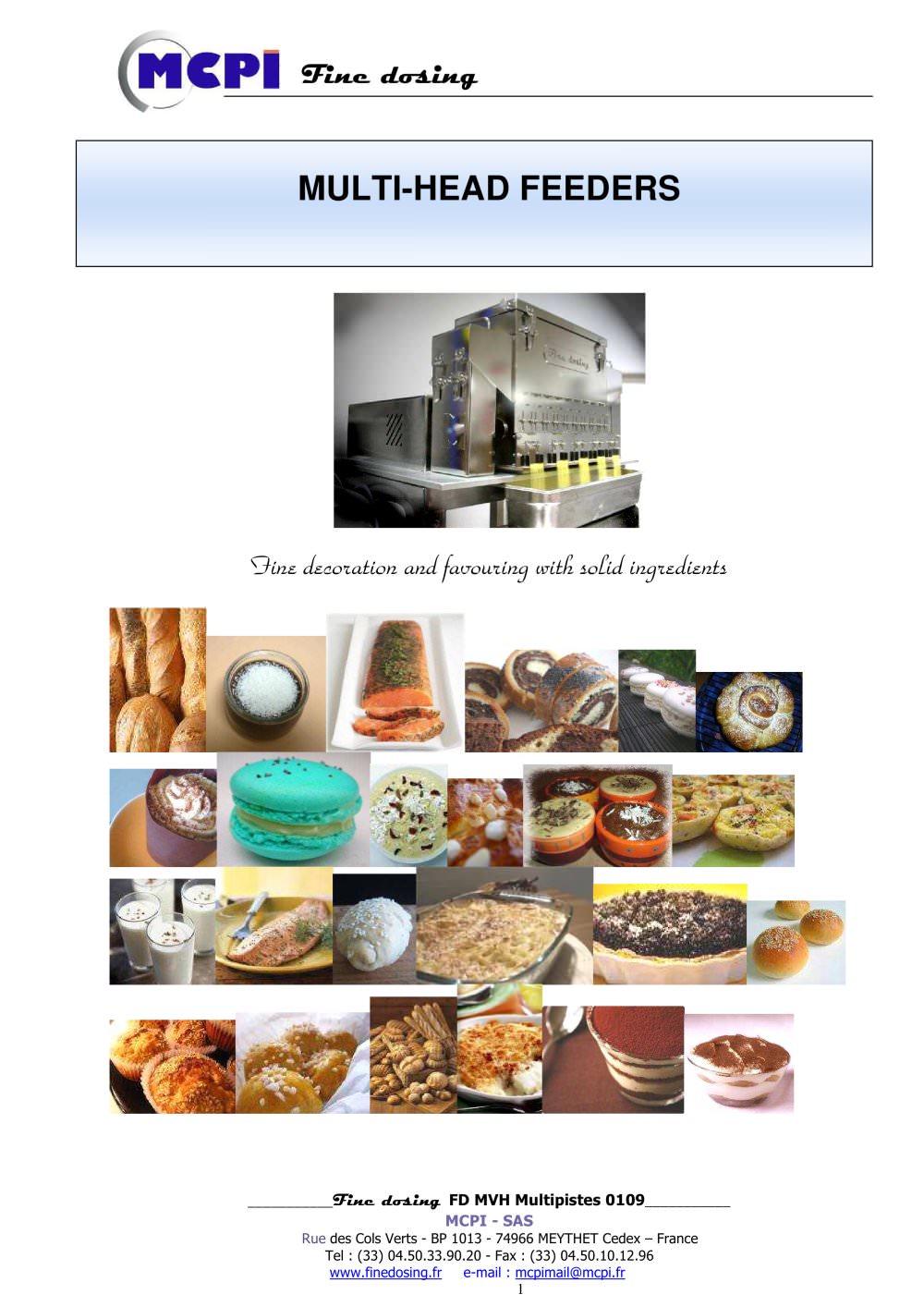

Multi head feeder
5Pages

Caractristiques : Dosing repeatability < 5% Dosing time From 0.2 颀 . The width of each output is adjustable (1setting for all Number of dosing points outputs) Number of dosing point : adjustable Cadency Up to 60 cycles / min. Dosing time From 0.2 Ӣ3 . Number of dosing The width of each output is adjustable (1setting for all outputs) points Number of dosing point : adjustable Cadency Up to 60 cycles / min. . Can cope with fine powder or granulates Flexibility . The configuration of dosing point can be easiky changed . Can be fitted to different production lines Setting parameters Number of...

Storage hopper with level sensor Vertical adjustment of the storage hopper Generator housing Control cabinet Agitator (option) Vertical adjustment of the machine (option) Spreading (of output flow) with collection of dust Gates for output flow adjustment Spreading of output flow ___________ ___________ 4 >

Some results Feeding of semolina, total width of the feeder 700 mm, 5 heads Head 1 Head 2 Head 3 Head 4 Head 5 Average Standard Standard deviation deviation % Semolina: set point 9g (results based on 50 measures), dosing time 0.58 sec. 9.03 9.09 9.08 8.9 9.0 9.02 0.09 1.5 % Semolina: set point 11.5 g (results based on 50 measures), dosing time 0.73 sec. 11.42 11.58 11.45 11.34 11.49 11.47 0.10 1.0 % Semolina: set point 13.5g (results based on 50 measures), dosing time 0.87 sec. 13.6 13.79 13.72 13.63 13.77 13.73 0.07 1.0 % > Dosage de semoule Results versus different dosing times...
