JET FIVE bi-rotary universal head

Product catalog summary

Technical Specifications:

Tool Changing Time: 2 seconds
Number of Tools: HSK-A100, 148 - 999
Spindle Speed: 20,000 rpm
Spindle Power: 75 kW
Spindle Torque: 200 Nm
Gantry Control: Available on all machine axes
Linear Axes Measuring System: Pressurized optical scales

Universal Head Tilting Table:

A-C Axes Speed: 22,000 degrees/min
HSK Types: HSK-A80 / HSK-A63
Linear Axes Rapid Feeds: 70 m/min
Pallet Dimensions: 3,000x2,000 mm

Working Area:

Longitudinal X Axis: 3,000/7,000/11,000/15,000 mm
Vertical Y Axis: 2,000 mm
Transversal Z Axis: 600 mm
Transversal Table W Axis: 800 mm
Axes Thrust: 4,000 daN

Spindle Details:

HSK Types: HSK-A80 / HSK-A63
Max Torque: 200 Nm
Front Bearing Diameter: 100 mm
A Axis Tilting Angle: 200 degrees
C Axis Tilting Angle: 360 degrees

Tool Change Features:

Rack Type Tool Magazine Capacity: 148 - 999
Max Tool Length: 600 mm
Max Tool Weight: 25 kg
Chip to Chip Tool Changing Time: 12 seconds
Max Tool Diameter: 300 mm
Adjacent Tools Max Diameter: 100 mm

Tilting Table:

Positions: 2
Pallet Dimensions: 3,000x2,000/6,000x2,000 mm
Max Load on Pallet: 5,000 kg

Additional Features:

Chips Conveyor: Scraper type
Coolant System: 1,500 liters tank with self-cleaning filter

Contact Information:

MCM Spa: 2311-29th Ave. Laval West, QC, Canada
MCM France Sarl: F-91600 Savigny sur Orge, France
MCM Spa: I-29020 Vigolzone (PC), Italy
MCM Vertriebs GmbH: D-65189 Wiesbaden, Germany
MCM USA Inc.: 34525 Melinz Parkway, Eastlake, OH, USA

Catalog excerpts

jFMX Information Technology Enabling Intelligent Manufacturing >

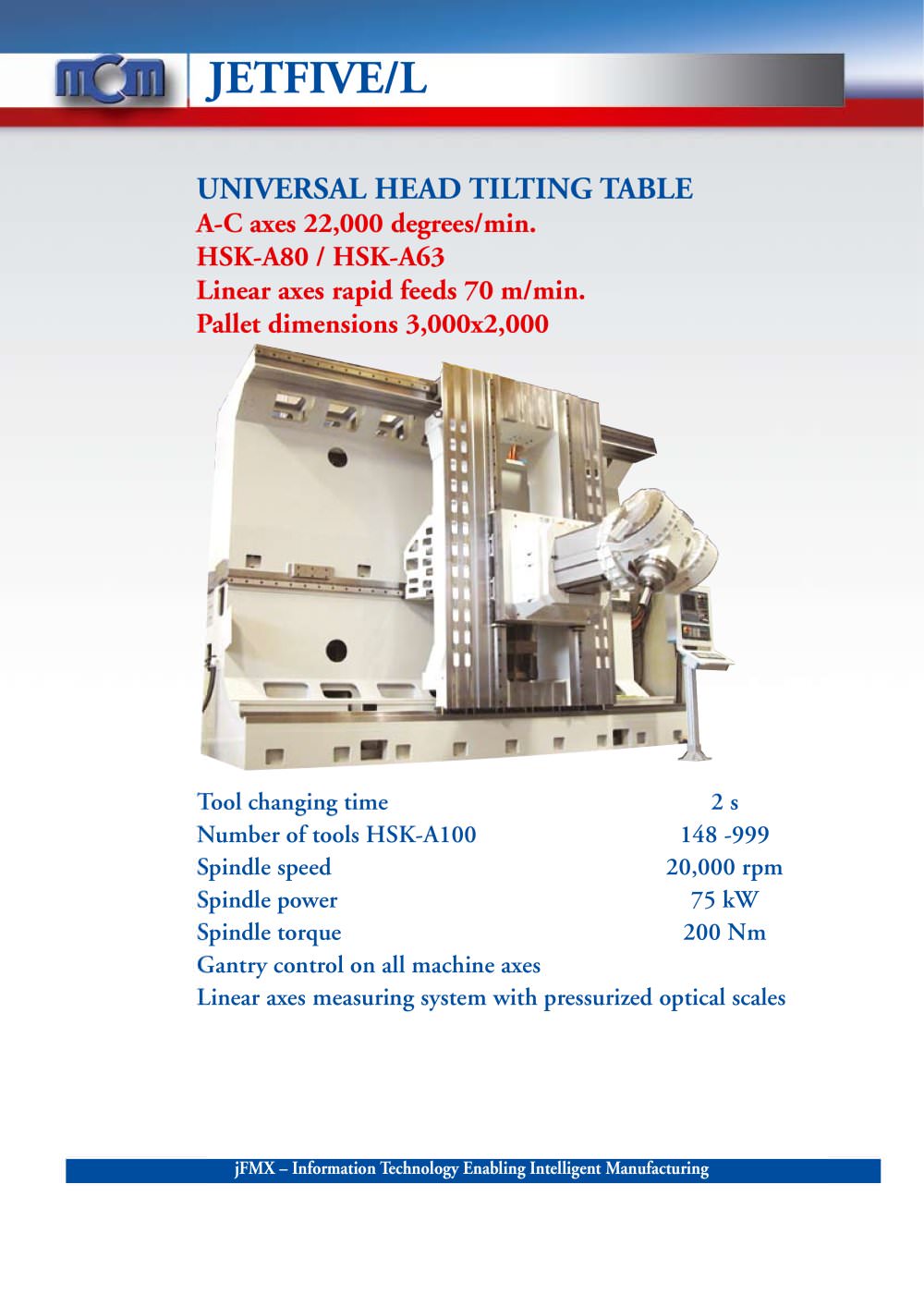

Open the catalog to page 1

TILTING TABLE Positions n. 2 Pallet dimensions mm 3,000x2,000/6,000x2,000 Max. load on pallet kg 5,000 CHIPS CONVEYOR Scraper type TOOL CHANGE COOLANT SYSTEM 1,500 liters tank with self-cleaning filter Standard features Rack type tool magazine capacity n. 148 - 999 Max. tool length mm 600 Max tool weight kg 25 Chip to chip tool changing time s 12 Max. tool diameter mm 300 Adjacent tools max. diameter mm 100 SPINDLE HSK-A80 / HSK-A63 rpm 20,000 Power kW 75 Front bearing diameter mm 100 A axis tilting angle degrees 200 C axis tilting angle degrees 360 Max torque Nm 200 > WORKING AREA Longitudinal...
