FORERUNNER - linear motors

Product catalog summary
Technical Specifications:
  • Spindle Type: HSK-A63 with a rotating speed of 24,000 rpm, power of 50 kW, and max torque of 150 Nm.
  • Tool Change: Features a wheel/rack type tool magazine with a capacity of 125/1367 HSK-A63 tools. Tool changing time is 3 seconds.
  • Pallet Changer: Includes 2 pallets with dimensions of 500x500 mm, changing time of 6 seconds, and a max load of 200 kg.
  • Continuous Rotary Table: Offers 3,600,000 positions with a speed rotation of 65 rpm.
  • Working Area: Longitudinal X axis of 650 mm, Vertical Y axis of 600 mm, and Transversal Z axis of 670 mm.
  • Rapid Feeds: 120 m/min with Y axis acceleration of 20 m/s² and X-Z axes acceleration of 15 m/s².
  • Positioning Precision: Linear axes positioning precision of 5 µm and repeatability precision of 3 µm. Rotating axes positioning precision of 6 arcsec and repeatability precision of 4 arcsec.
Additional Features:
  • Chips Conveyor: Scraper type.
  • Coolant System: 750 liters tank with self-cleaning filter.
  • Total Weight: 18,800 kg for the two pallets version.
Contact Information:
  • MCM Canada: Located in Laval West, QC, Canada. Phone: (450) 627 1414.
  • MCM France: Located in Savigny sur Orge, France. Phone: 01-69-21-21-00.
  • MCM Spa: Located in Vigolzone, Italy. Phone: ++39 0523 879901.
  • MCM USA Inc.: Located in Eastlake, OH, USA. Phone: (440) 9181415.
See more

Catalog excerpts

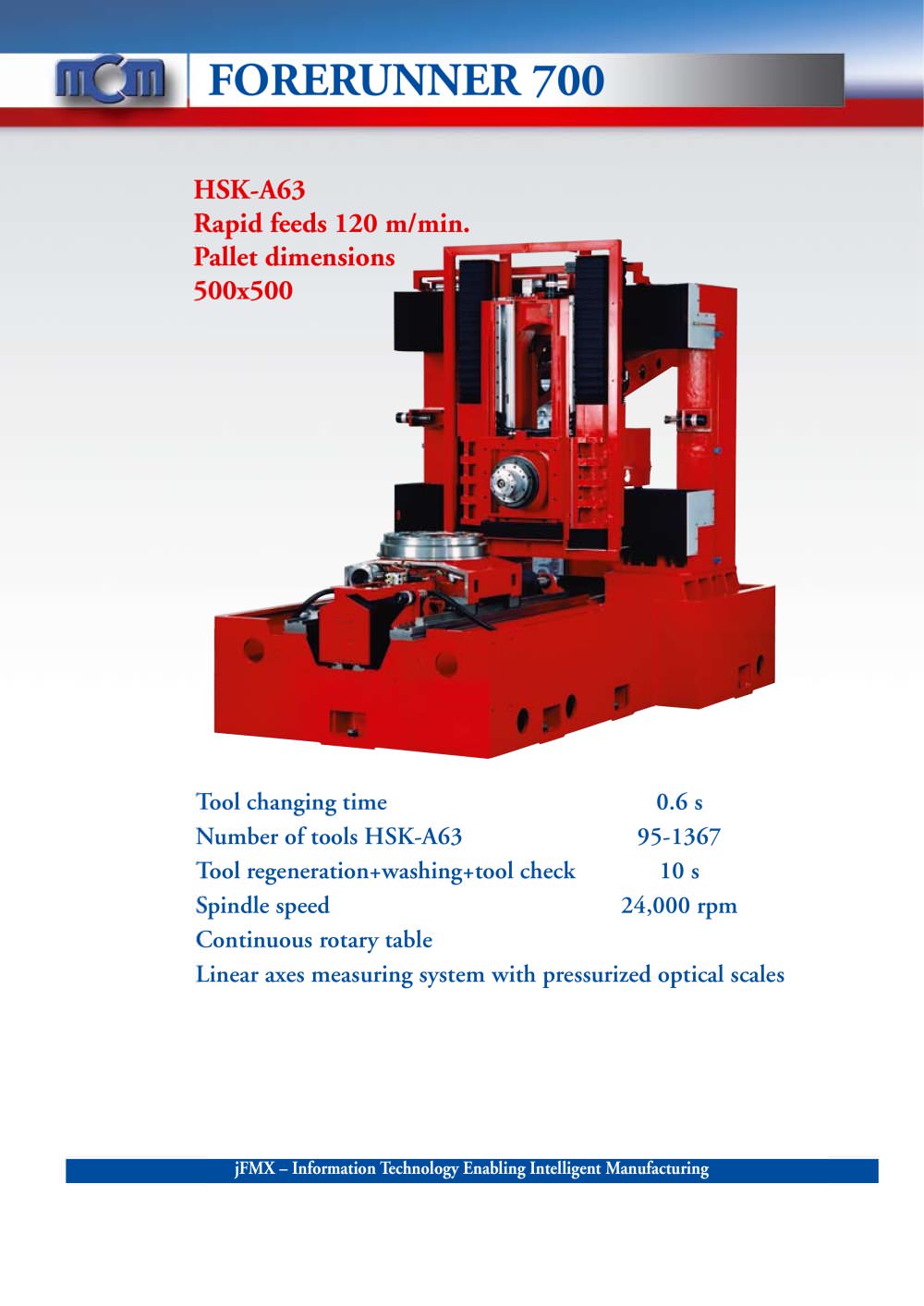

FORERUNNER - linear motors-1

jFMX Information Technology Enabling Intelligent Manufacturing >

 Open the catalog to page 1
FORERUNNER - linear motors-2

CONTINUOUS ROTARY TABLE PALLET CHANGER Positions n. 3,600,000 Speed rotation rpm 65 WORKING AREA Longitudinal X axis mm 650 Vertical Y axis mm 600 Transversal Z axis mm 670 Rapid feeds m/min 120 Y axis acceleration m/s Pallet changing time s 6 Number of pallets n. 2 Pallet dimensions mm 500x500 Overall rotating diameter mm 750 Max. load for pallet kg 200 CHIPS CONVEYOR Scraper type POSITIONING PRECISION IN ACCORDANCE WITH VDI/DGQ 3441 SPECIFICATIONS μ m 5Repeatability precision (Ps Med) Linear axes (XYZ) Positioning precision (Pa) TOOL CHANGE COOLANT SYSTEM μ 750 liters tank with self-cleaning...

 Open the catalog to page 2
