FLEX MULTITASKING 5 axes

FLEX MULTITASKING 5 axes
1 / 2 PagesView full catalog

FLEX MULTITASKING 5 axes

Product catalog summary
Technical Specifications
  • Machine Type: Machining Centers with Flex Multitasking 5 Axes
  • Spindle Speed: 14,000 rpm
  • Tool System: CAPTO C6 with a magazine capacity of 315 tools
  • Tool Change Time: 4.5 seconds
  • Pallet Dimensions: Ø 400 mm
  • Rapid Feeds: 75 m/min
  • Axes: Continuous rotary table with 5 axes
Technical Features
  • Axes Dimensions: Longitudinal X axis 1,200 mm, Vertical Y axis 850 mm, Transversal Z axis 850 mm
  • Axes Thrust: 1,500 daN
  • Rapid Feeds: X and Z axes 75,000 mm/min, Y axis 60,000 mm/min
  • Spindle Group: CAPTO C6, 14,000 rpm, Continuous speed 40 kW, Max speed 65 kW
  • Torque: Continuous 180 Nm, Max 400 Nm
Tool and Pallet Specifications
  • Tool Change: Chip to chip time 4.7 seconds
  • Pallet Capacity: 159, Max handling weight 60 kg, Max dimensions Ø 400 x 350 mm
  • Spindle-Continuous Dividing Table: Positions 3,600,000, Rotation speed 2,000 rpm
Contact Information
  • MCM Canada: Laval West, QC, Phone: (450) 627 1414
  • MCM France: Savigny sur Orge, Phone: 01-69-21-21-00
  • MCM Spa: Vigolzone (PC), Phone: ++39 0523 879901
  • MCM Vertriebs GmbH: Wiesbaden, Phone: 0611-372747
  • MCM USA Inc.: Eastlake, OH, Phone: (440) 9181415
See more

Catalog excerpts

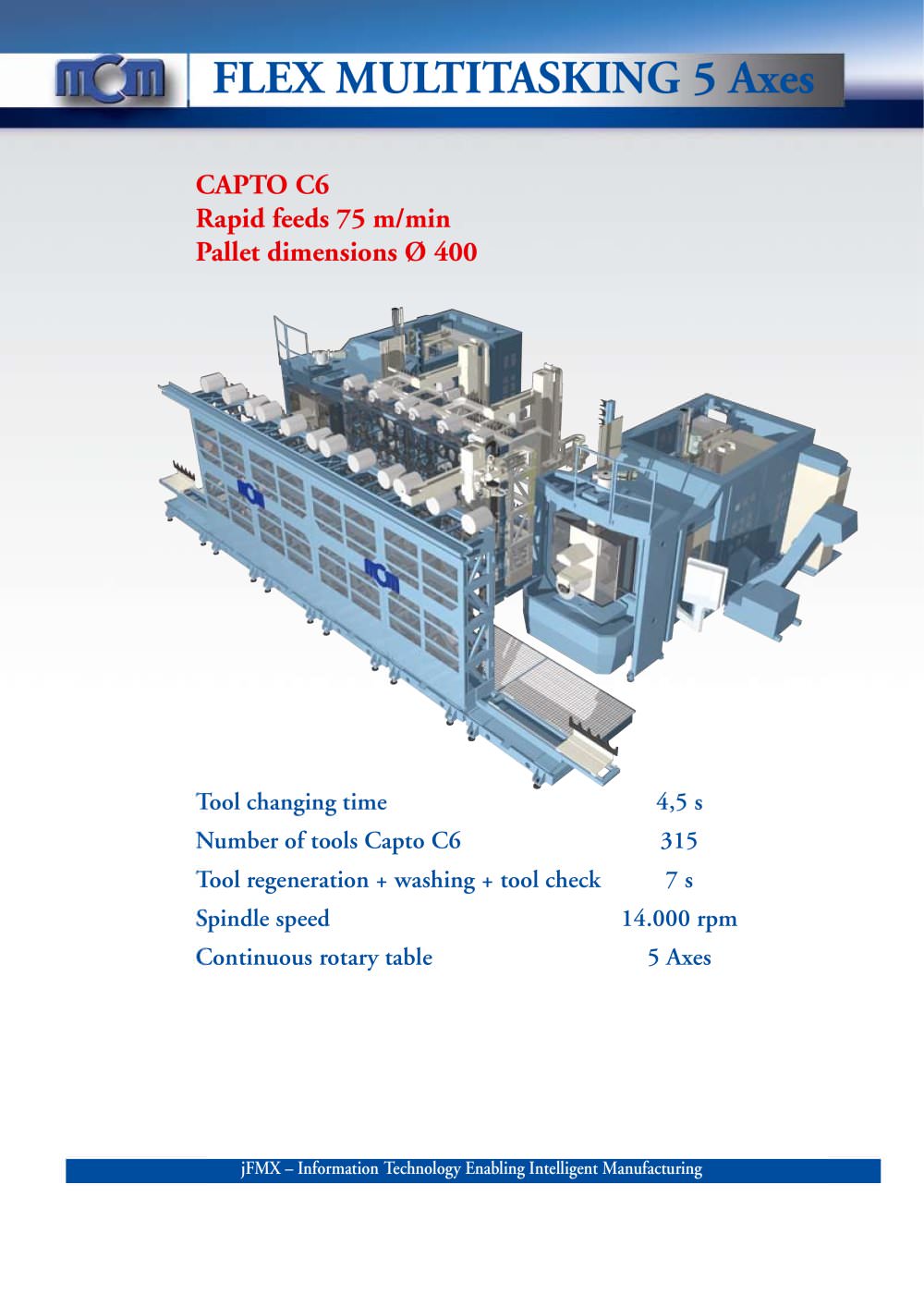

FLEX MULTITASKING 5 axes-1

jFMX ؖ Information Technology Enabling Intelligent Manufacturing >

 Open the catalog to page 1
FLEX MULTITASKING 5 axes-2

SPINDLECONTINUOUS DIVIDING TABLE TAPER CAPTO C8X PALLET CAPTO C8X Positions 3.600.000 Rotation speed rpm 2.000 Magazine capacity n. 159 Max. handling weight kg 60 Max. handling dimensions (֘ x length) mm () 400x(L)350 Tool changing time s 25 CHIPS CONVEYOR > Scraper type TOOL CHANGE CAPTO C6 Magazine capacity n. 315 Max. tool length mm 340 Max. tool weight kg 8 Chip to chip tool changing time s 4,7 SPINDLE GROUP Spindle type 14.000 rpm CAPTO C6 Rotation speed rpm 14.000 Continuous speed / Max. speed kW 40/65 Front bearing diameter mm 110 Continuous torque / Max. torque Nm 180/400 > TECHNICAL...

 Open the catalog to page 2
