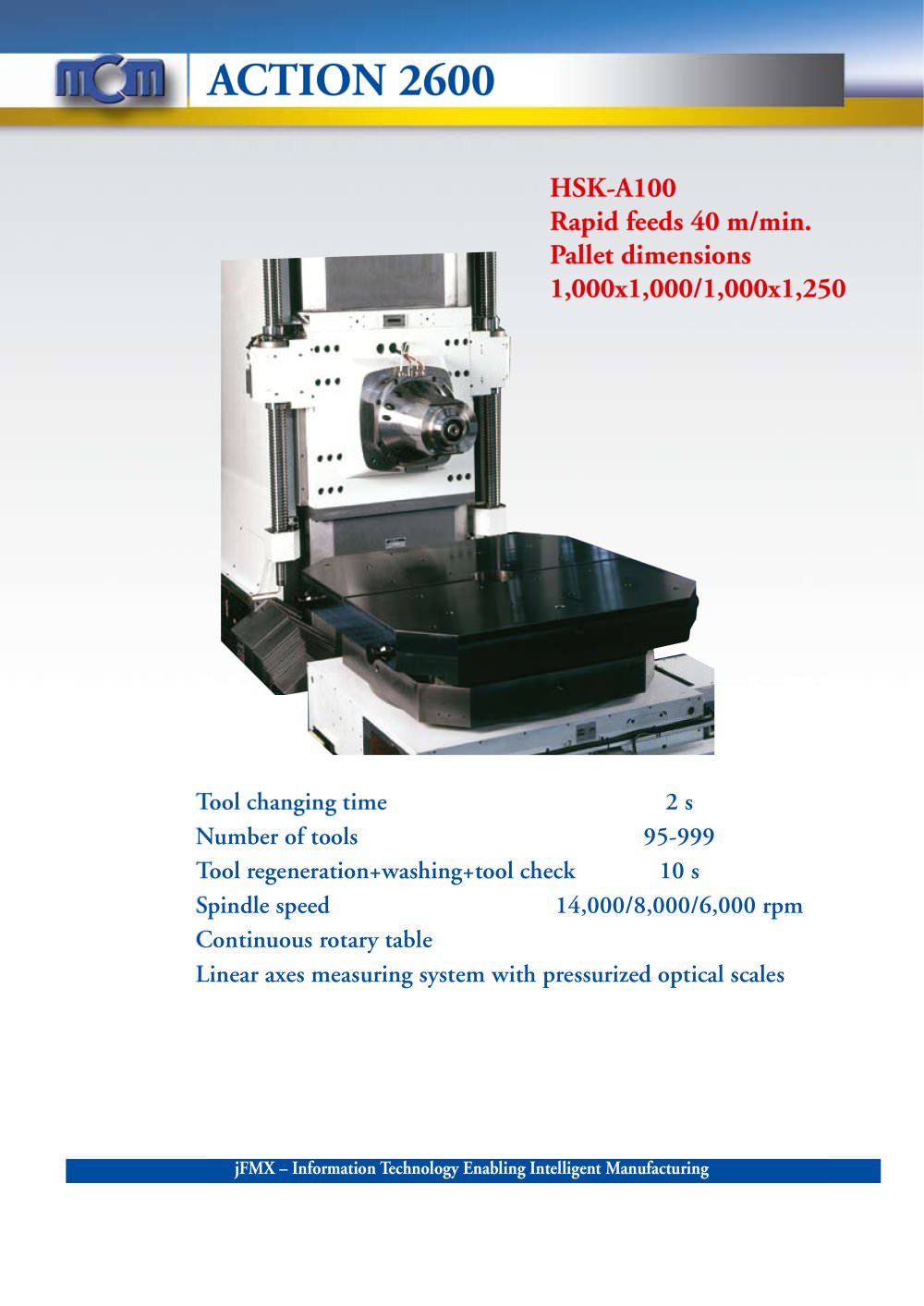

ACTION 2600

Product catalog summary

Technical Specifications:

Tool Changing: Time is 2 seconds with a capacity of 95-999 tools. Tool regeneration, washing, and checking take 10 seconds.
Spindle Speed: Options available at 14,000, 8,000, and 6,000 rpm.
Axes and Table: Continuous rotary table with linear axes measuring system using pressurized optical scales. Rapid feeds at 40 m/min.
Pallet Dimensions: 1,000x1,000 mm or 1,000x1,250 mm.

Working Area:

Axes Dimensions: X axis - 2,600 mm, Y axis - 1,600 mm, Z axis - 1,700 mm.
Axes Thrust: 3,500 daN.
Spindle Tip Distances: Y pallet - 75 mm, Z pallet - 130 mm.

Precision:

Linear Axes: Positioning precision at 8 µm, repeatability at 4 µm.
Rotating Axes: Positioning precision at 8 arcsec, repeatability at 4 arcsec.

Spindle Type:

HSK-A100 with power options of 65/25/75 kW and max torque of 400/600/1,000 Nm.
Front bearing diameter options of 110/130/130 mm.

Tool Change:

Wheel/rack type tool magazine with a capacity of 95-999 tools.
Max tool length of 600 mm, weight of 25 kg, and diameter of 300x400 mm.
Chip to chip tool changing time is 10 seconds.

Pallet Changer:

Time for pallet changing is 20 seconds with 2 pallets available.
Pallet dimensions are 1,000x1,000 mm or 1,000x1,200 mm with a max load of 3,000 kg.

Continuous Rotary Table:

Positions available: 3,600,000 with a speed rotation of 8 rpm.

Additional Features:

Chips conveyor is scraper type.
Coolant system includes a 1,500-liter tank with a self-cleaning filter.
Total weight for the two pallets version is 36,500 kg.

Contact Information:

MCM Canada, MCM France, MCM Spa, MCM Vertriebs GmbH, and MCM USA Inc. contact details provided for further inquiries.
